| CPU2006 license: | 19 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jun-2011 |
| Tested by: | Fujitsu | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1270 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.80 GHz |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600E-9, ECC) |
| Disk Subsystem: | 1 x SATA, 300 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

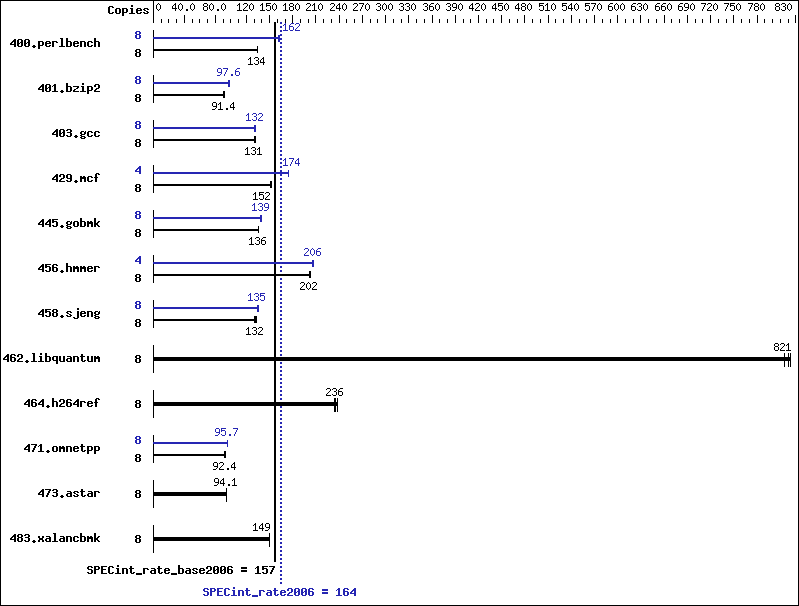

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 580 | 135 | 583 | 134 | 582 | 134 | 8 | 483 | 162 | 481 | 163 | 483 | 162 |
| 401.bzip2 | 8 | 840 | 91.9 | 844 | 91.4 | 852 | 90.6 | 8 | 793 | 97.3 | 789 | 97.8 | 791 | 97.6 |
| 403.gcc | 8 | 494 | 130 | 492 | 131 | 491 | 131 | 8 | 489 | 132 | 491 | 131 | 489 | 132 |
| 429.mcf | 8 | 481 | 152 | 480 | 152 | 484 | 151 | 4 | 210 | 174 | 209 | 175 | 209 | 174 |
| 445.gobmk | 8 | 618 | 136 | 618 | 136 | 617 | 136 | 8 | 604 | 139 | 606 | 138 | 602 | 139 |
| 456.hmmer | 8 | 369 | 202 | 369 | 203 | 369 | 202 | 4 | 181 | 206 | 181 | 206 | 181 | 206 |
| 458.sjeng | 8 | 731 | 132 | 743 | 130 | 730 | 133 | 8 | 719 | 135 | 719 | 135 | 716 | 135 |
| 462.libquantum | 8 | 202 | 821 | 203 | 816 | 201 | 823 | 8 | 202 | 821 | 203 | 816 | 201 | 823 |
| 464.h264ref | 8 | 745 | 238 | 751 | 236 | 756 | 234 | 8 | 745 | 238 | 751 | 236 | 756 | 234 |
| 471.omnetpp | 8 | 543 | 92.2 | 541 | 92.4 | 541 | 92.4 | 8 | 522 | 95.7 | 523 | 95.7 | 522 | 95.8 |
| 473.astar | 8 | 596 | 94.2 | 598 | 93.9 | 597 | 94.1 | 8 | 596 | 94.2 | 598 | 93.9 | 597 | 94.1 |
| 483.xalancbmk | 8 | 369 | 149 | 369 | 150 | 369 | 149 | 8 | 369 | 149 | 369 | 150 | 369 | 149 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Large pages were not enabled for this run
General Notes
For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
