| CPU2006 license: | 20 | Test date: | Jan-2011 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2011 |
| Tested by: | Bull SAS | Software Availability: | Nov-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7520 |
| CPU Characteristics: | |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 18 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 4Rx8 PC3-8500R-7, ECC, running at 800 MHz) |
| Disk Subsystem: | 2 x 50 GB SATA, SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

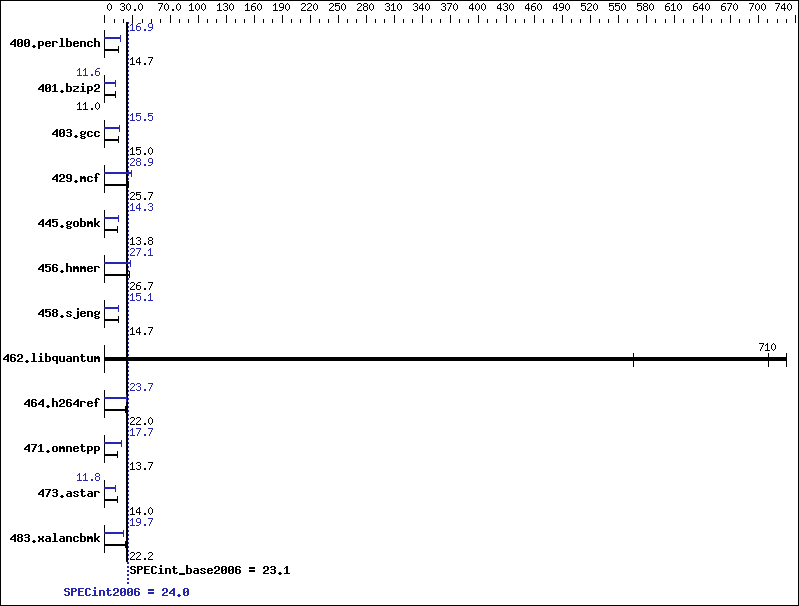

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 664 | 14.7 | 665 | 14.7 | 655 | 14.9 | 578 | 16.9 | 578 | 16.9 | 579 | 16.9 |
| 401.bzip2 | 876 | 11.0 | 876 | 11.0 | 876 | 11.0 | 835 | 11.6 | 835 | 11.6 | 835 | 11.6 |
| 403.gcc | 533 | 15.1 | 535 | 15.0 | 536 | 15.0 | 518 | 15.5 | 521 | 15.5 | 518 | 15.6 |
| 429.mcf | 356 | 25.6 | 355 | 25.7 | 354 | 25.7 | 316 | 28.9 | 315 | 29.0 | 316 | 28.9 |
| 445.gobmk | 750 | 14.0 | 764 | 13.7 | 760 | 13.8 | 734 | 14.3 | 734 | 14.3 | 734 | 14.3 |
| 456.hmmer | 350 | 26.7 | 349 | 26.7 | 349 | 26.7 | 345 | 27.1 | 345 | 27.1 | 344 | 27.1 |
| 458.sjeng | 822 | 14.7 | 822 | 14.7 | 817 | 14.8 | 799 | 15.1 | 799 | 15.2 | 804 | 15.0 |
| 462.libquantum | 36.6 | 567 | 29.2 | 710 | 28.4 | 731 | 36.6 | 567 | 29.2 | 710 | 28.4 | 731 |
| 464.h264ref | 1006 | 22.0 | 1002 | 22.1 | 1009 | 21.9 | 931 | 23.8 | 932 | 23.7 | 933 | 23.7 |
| 471.omnetpp | 455 | 13.7 | 459 | 13.6 | 452 | 13.8 | 355 | 17.6 | 352 | 17.8 | 353 | 17.7 |
| 473.astar | 502 | 14.0 | 501 | 14.0 | 502 | 14.0 | 595 | 11.8 | 595 | 11.8 | 596 | 11.8 |
| 483.xalancbmk | 310 | 22.2 | 314 | 22.0 | 310 | 22.2 | 351 | 19.7 | 351 | 19.7 | 351 | 19.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Hugepages was enabled with the following:
'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab
echo 900 > /proc/sys/vm/nr_hugepages
export HUGETLB_MORECORE=yes
export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Power C-states enabled in BIOS Demand Scrub disabled in BIOS
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
