| CPU2006 license: | 20 | Test date: | Jan-2011 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | May-2010 |
| Tested by: | Bull SAS | Software Availability: | Oct-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 73 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.0.082 Build 20101006 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

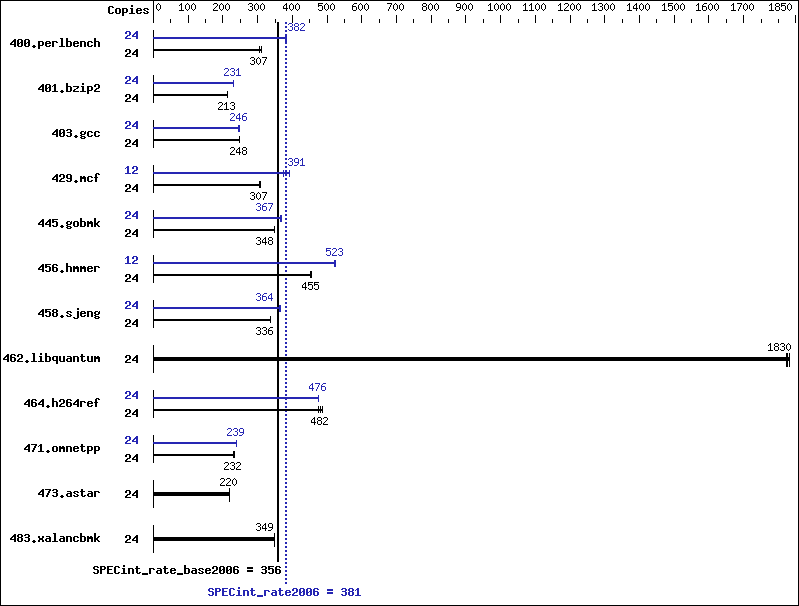

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 757 | 310 | 765 | 306 | 765 | 307 | 24 | 617 | 380 | 613 | 382 | 614 | 382 |
| 401.bzip2 | 24 | 1087 | 213 | 1089 | 213 | 1092 | 212 | 24 | 1002 | 231 | 1004 | 231 | 1002 | 231 |
| 403.gcc | 24 | 778 | 248 | 777 | 249 | 781 | 247 | 24 | 782 | 247 | 787 | 245 | 784 | 246 |
| 429.mcf | 24 | 714 | 307 | 714 | 307 | 713 | 307 | 12 | 292 | 375 | 280 | 391 | 280 | 391 |
| 445.gobmk | 24 | 724 | 348 | 720 | 349 | 725 | 347 | 24 | 688 | 366 | 686 | 367 | 683 | 368 |
| 456.hmmer | 24 | 491 | 456 | 492 | 455 | 496 | 452 | 12 | 214 | 522 | 214 | 523 | 213 | 525 |
| 458.sjeng | 24 | 863 | 337 | 863 | 336 | 864 | 336 | 24 | 799 | 364 | 797 | 364 | 798 | 364 |
| 462.libquantum | 24 | 272 | 1830 | 273 | 1820 | 272 | 1830 | 24 | 272 | 1830 | 273 | 1820 | 272 | 1830 |
| 464.h264ref | 24 | 1102 | 482 | 1091 | 487 | 1117 | 476 | 24 | 1120 | 474 | 1117 | 476 | 1115 | 476 |
| 471.omnetpp | 24 | 647 | 232 | 646 | 232 | 647 | 232 | 24 | 627 | 239 | 628 | 239 | 628 | 239 |
| 473.astar | 24 | 769 | 219 | 767 | 220 | 766 | 220 | 24 | 769 | 219 | 767 | 220 | 766 | 220 |
| 483.xalancbmk | 24 | 475 | 349 | 474 | 349 | 475 | 349 | 24 | 475 | 349 | 474 | 349 | 475 | 349 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
Hugepages was enabled with the following:
'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab
echo 10800 > /proc/sys/vm/nr_hugepages
export HUGETLB_MORECORE=yes
export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Turbo Mode enabled in BIOS Turbo Boost set to Traditional in BIOS Power C-states enabled in BIOS Demand Scrub disabled in BIOS
General Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
