| CPU2006 license: | 6 | Test date: | Aug-2010 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Oct-2010 |
| Tested by: | Oracle Corporation | Software Availability: | Sep-2010 |
| Hardware | |
|---|---|
| CPU Name: | SPARC T3 |
| CPU Characteristics: | |
| CPU MHz: | 1649 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 1 chip, 16 cores/chip, 8 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 16 KB I + 8 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB) |
| Disk Subsystem: | 750 GB (zfs 3 x 2-way mirrors on 6x SAS 300G 10000 RPM) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Solaris 10 9/10 |
| Compiler: | Oracle Solaris Studio 12.2 |
| Auto Parallel: | No |
| File System: | zfs with gzip compression |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | None |

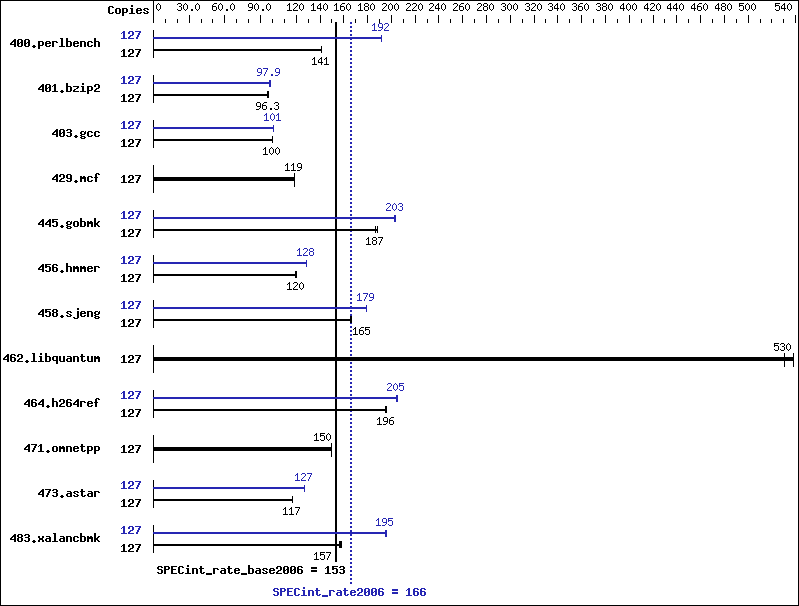

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 127 | 8800 | 141 | 8804 | 141 | 8791 | 141 | 127 | 6479 | 192 | 6481 | 191 | 6474 | 192 |
| 401.bzip2 | 127 | 12724 | 96.3 | 12720 | 96.3 | 12800 | 95.7 | 127 | 12504 | 98.0 | 12517 | 97.9 | 12516 | 97.9 |
| 403.gcc | 127 | 10192 | 100 | 10198 | 100 | 10188 | 100 | 127 | 10105 | 101 | 10097 | 101 | 10096 | 101 |
| 429.mcf | 127 | 9763 | 119 | 9781 | 118 | 9768 | 119 | 127 | 9763 | 119 | 9781 | 118 | 9768 | 119 |
| 445.gobmk | 127 | 7069 | 188 | 7136 | 187 | 7133 | 187 | 127 | 6548 | 203 | 6551 | 203 | 6565 | 203 |
| 456.hmmer | 127 | 9838 | 120 | 9904 | 120 | 9884 | 120 | 127 | 9222 | 128 | 9223 | 128 | 9219 | 129 |
| 458.sjeng | 127 | 9251 | 166 | 9291 | 165 | 9298 | 165 | 127 | 8582 | 179 | 8582 | 179 | 8583 | 179 |
| 462.libquantum | 127 | 4887 | 538 | 4963 | 530 | 4961 | 530 | 127 | 4887 | 538 | 4963 | 530 | 4961 | 530 |
| 464.h264ref | 127 | 14323 | 196 | 14342 | 196 | 14398 | 195 | 127 | 13719 | 205 | 13729 | 205 | 13733 | 205 |
| 471.omnetpp | 127 | 5297 | 150 | 5305 | 150 | 5301 | 150 | 127 | 5297 | 150 | 5305 | 150 | 5301 | 150 |
| 473.astar | 127 | 7642 | 117 | 7644 | 117 | 7653 | 116 | 127 | 7031 | 127 | 7025 | 127 | 7032 | 127 |
| 483.xalancbmk | 127 | 5546 | 158 | 5586 | 157 | 5599 | 156 | 127 | 4479 | 196 | 4486 | 195 | 4500 | 195 |
Submit Notes
Processes were bound to cores using "submit" and "pbind". The config file option 'submit' was used in order to accomplish this.
Operating System Notes
ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).
/etc/system parameters
autoup=600
Causes pages older than the listed number of seconds to
be written by fsflush.
tune_t_fsflushr=10
Controls how many seconds elapse between runs of the
page flush daemon, fsflush.
lpg_alloc_prefer=1
Indicates that extra effort should be taken to ensure
that pages are created in the nearby lgroup (NUMA location).
tsb_rss_factor=128
Suggests that the the size of the TSB (Translation
Storage Buffer) may be increased if it is more than
25% (128/512) full. Doing so may reduce TSB traps,
at the cost of additional kernel memory.
zfs:zfs_arc_max=0x10000000
zfs:zfs_arc_min=0x10000000
Limits the consumption of memory by the zfs file system
cache to 256 MB. (The arc_max sets the maximum cache
size; arc_min sets the minimum.)
zfs:zfs_prefetch_disable = 1
Indicates that prefetching is not desired. This setting
may be desirable when the file system cache is small.
USB devices were turned off with ILOM command
set /SYS/MB/USB component_state=disabled
The "webconsole" service was turned off using
svcadm disable webconsole
The system had 296 GB of swap space.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Base Optimization Flags
C benchmarks:
| -g -fast -fma=fused -xipo=2 -xprefetch=no%auto -xpagesize=4M -xalias_level=std -M /usr/lib/ld/map.bssalign |
C++ benchmarks:
| -g0 -library=stlport4 -fast -fma=fused -xipo=2 -xprefetch=no%auto -xpagesize=4M -xdepend -xalias_level=compatible -M /usr/lib/ld/map.bssalign |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -g0 -library=stlport4 -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -xdepend -xalias_level=compatible -xipo=2 -xprefetch=no%auto -lfast |
| 483.xalancbmk: | Same as 473.astar |
