CPU2006 license: | 49 | Test date: | Nov-2010 |
---|---|---|---|
Test sponsor: | Advanced Micro Devices | Hardware Availability: | Mar-2010 |
Tested by: | Advanced Micro Devices | Software Availability: | May-2010 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6124 HE |
CPU Characteristics: | |
CPU MHz: | 1800 |
FPU: | Integrated |
CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip, 6 MB shared / 4 cores |
Other Cache: | None |
Memory: | 128 GB (32 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x 250 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 5.5, Advanced Platform, Kernel 2.6.18-194.el5 |
Compiler: | x86 Open64 4.2.3.2 Compiler Suite (from AMD) |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | binutils 2.18 |

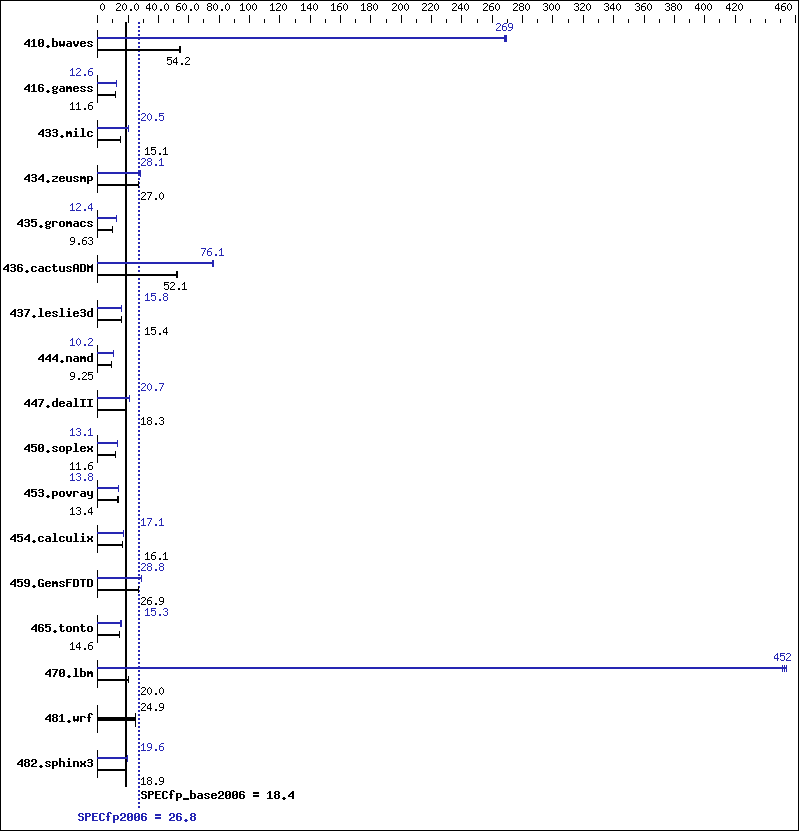

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 251 | 54.2 | 251 | 54.1 | 251 | 54.2 | 50.7 | 268 | 50.6 | 269 | 50.5 | 269 |
416.gamess | 1690 | 11.6 | 1694 | 11.6 | 1690 | 11.6 | 1556 | 12.6 | 1553 | 12.6 | 1554 | 12.6 |
433.milc | 604 | 15.2 | 608 | 15.1 | 606 | 15.1 | 448 | 20.5 | 449 | 20.4 | 448 | 20.5 |
434.zeusmp | 338 | 26.9 | 337 | 27.0 | 337 | 27.0 | 324 | 28.1 | 324 | 28.1 | 325 | 28.0 |
435.gromacs | 741 | 9.64 | 741 | 9.63 | 742 | 9.62 | 574 | 12.4 | 574 | 12.4 | 573 | 12.5 |
436.cactusADM | 229 | 52.1 | 230 | 51.9 | 227 | 52.7 | 157 | 76.1 | 157 | 76.1 | 158 | 75.9 |
437.leslie3d | 610 | 15.4 | 608 | 15.5 | 612 | 15.4 | 595 | 15.8 | 593 | 15.8 | 594 | 15.8 |
444.namd | 867 | 9.25 | 868 | 9.24 | 865 | 9.27 | 790 | 10.2 | 790 | 10.2 | 789 | 10.2 |
447.dealII | 624 | 18.3 | 624 | 18.3 | 623 | 18.4 | 552 | 20.7 | 552 | 20.7 | 552 | 20.7 |
450.soplex | 716 | 11.6 | 721 | 11.6 | 718 | 11.6 | 640 | 13.0 | 636 | 13.1 | 633 | 13.2 |
453.povray | 397 | 13.4 | 399 | 13.3 | 397 | 13.4 | 382 | 13.9 | 384 | 13.8 | 385 | 13.8 |
454.calculix | 513 | 16.1 | 511 | 16.1 | 511 | 16.2 | 483 | 17.1 | 483 | 17.1 | 483 | 17.1 |
459.GemsFDTD | 395 | 26.9 | 395 | 26.9 | 395 | 26.9 | 368 | 28.8 | 368 | 28.9 | 368 | 28.8 |
465.tonto | 674 | 14.6 | 671 | 14.7 | 676 | 14.6 | 645 | 15.3 | 642 | 15.3 | 644 | 15.3 |
470.lbm | 688 | 20.0 | 688 | 20.0 | 689 | 19.9 | 30.3 | 454 | 30.4 | 452 | 30.4 | 451 |
481.wrf | 449 | 24.9 | 451 | 24.7 | 449 | 24.9 | 449 | 24.9 | 451 | 24.7 | 449 | 24.9 |
482.sphinx3 | 1034 | 18.8 | 1028 | 19.0 | 1031 | 18.9 | 996 | 19.6 | 997 | 19.5 | 996 | 19.6 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set vm/nr_hugepages=8000 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages cpuspeed stop was used to set the CPU frequency to its maximum.
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/work/cpu2006/amd1002mc-speed-libs-revA/64:/root/work/cpu2006/amd1002mc-speed-libs-revA/32" O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31" O64_OMP_SPIN_USER_LOCK = "true" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-march=barcelona -Ofast -HP:bdt=2m:heap=2m |
-march=barcelona -Ofast -static -INLINE:aggressive=on -HP:bdt=2m:heap=2m |
-march=barcelona -Ofast -apo -LNO:parallel_overhead=10000 -LNO:fusion_peeling_limit=0 -HP:bdt=2m:heap=2m |
-march=barcelona -Ofast -HP:bdt=2m:heap=2m -apo -LNO:parallel_overhead=10000 -LNO:fusion_peeling_limit=0 |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
435.gromacs: | -march=barcelona -Ofast -apo -OPT:rsqrt=2 -HP:bdt=2m:heap=2m |
436.cactusADM: | -march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -LANG:heap_allocation_threshold=1000 -LNO:prefetch_ahead=1 -HP:bdt=2m:heap=2m |
454.calculix: | -march=barcelona -Ofast -LNO:prefetch_ahead=30 -CG:load_exe=0 -CG:ptr_load_use=0 -CG:local_sched_alg=2 -CG:compute_to=on -WOPT:unroll=2 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m -apo |
481.wrf: | basepeak = yes |
