CPU2006 license: | 19 | Test date: | Aug-2010 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Jul-2010 |
Tested by: | Fujitsu | Software Availability: | May-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5507 |
CPU Characteristics: | |
CPU MHz: | 2267 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
Disk Subsystem: | 1 x SATA, 160 GB, 5.4 krpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

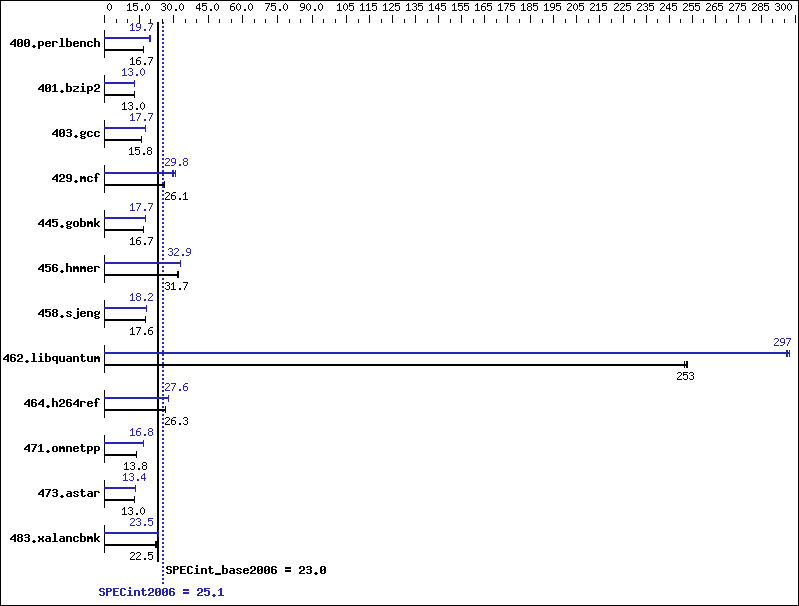

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 587 | 16.7 | 585 | 16.7 | 583 | 16.7 | 498 | 19.6 | 497 | 19.7 | 497 | 19.7 |
401.bzip2 | 740 | 13.0 | 740 | 13.0 | 746 | 12.9 | 744 | 13.0 | 742 | 13.0 | 743 | 13.0 |
403.gcc | 507 | 15.9 | 508 | 15.8 | 509 | 15.8 | 454 | 17.7 | 454 | 17.7 | 455 | 17.7 |
429.mcf | 351 | 26.0 | 349 | 26.1 | 349 | 26.1 | 306 | 29.8 | 308 | 29.6 | 299 | 30.5 |
445.gobmk | 627 | 16.7 | 626 | 16.7 | 627 | 16.7 | 597 | 17.6 | 593 | 17.7 | 592 | 17.7 |
456.hmmer | 291 | 32.1 | 294 | 31.7 | 297 | 31.4 | 283 | 32.9 | 283 | 32.9 | 283 | 33.0 |
458.sjeng | 687 | 17.6 | 689 | 17.6 | 687 | 17.6 | 665 | 18.2 | 664 | 18.2 | 664 | 18.2 |
462.libquantum | 81.9 | 253 | 82.3 | 252 | 82.1 | 253 | 69.9 | 297 | 70.1 | 296 | 69.7 | 297 |
464.h264ref | 841 | 26.3 | 842 | 26.3 | 842 | 26.3 | 800 | 27.6 | 801 | 27.6 | 801 | 27.6 |
471.omnetpp | 453 | 13.8 | 453 | 13.8 | 454 | 13.8 | 371 | 16.8 | 371 | 16.8 | 372 | 16.8 |
473.astar | 541 | 13.0 | 545 | 12.9 | 542 | 13.0 | 526 | 13.4 | 525 | 13.4 | 528 | 13.3 |
483.xalancbmk | 306 | 22.6 | 306 | 22.5 | 312 | 22.1 | 294 | 23.5 | 295 | 23.4 | 294 | 23.5 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
The system automatically configures the memory to run at 800 MHz. BIOS configuration: Data Reuse Optimization = Disable
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter For information about Fujitsu please visit: http://www.fujitsu.com
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
429.mcf: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
