SPEC® CINT2006 Result

IBM Corporation

IBM BladeCenter HS22 (Intel Xeon L5638)

Hardware
CPU Name:	Intel Xeon L5638
CPU Characteristics:	Intel Turbo Boost Technology up to 2.40 GHz
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip
Other Cache:	None
Memory:	48 GB (12 x 4 GB PC3-10600R CL9, 2 Rank)
Disk Subsystem:	1 x 73 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default
Compiler:	Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1

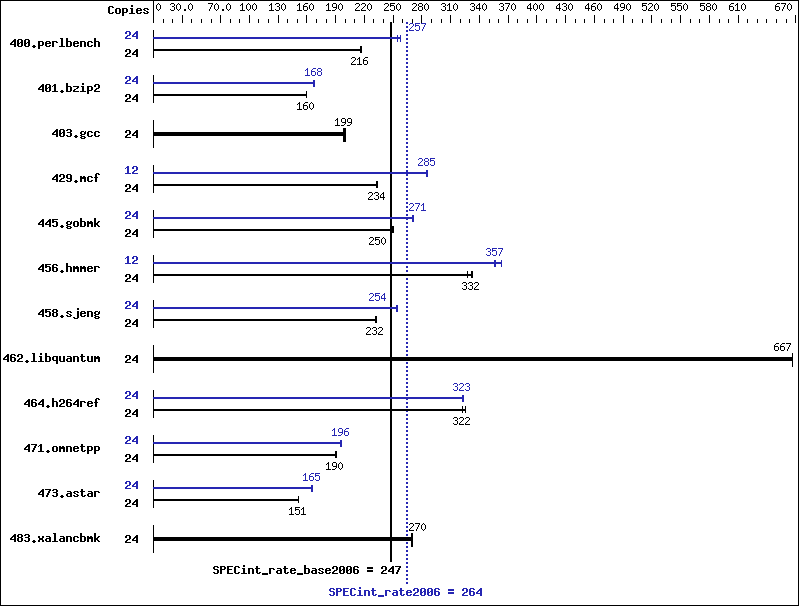

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	24	1088	215	1080	217	1084	216	24	911	257	921	255	911	257
401.bzip2	24	1450	160	1449	160	1449	160	24	1384	167	1381	168	1382	168
403.gcc	24	966	200	973	199	971	199	24	966	200	973	199	971	199
429.mcf	24	942	232	935	234	935	234	12	384	285	383	285	383	286
445.gobmk	24	1007	250	1007	250	1011	249	24	928	271	933	270	930	271
456.hmmer	24	674	332	674	332	684	328	12	313	357	308	363	314	356
458.sjeng	24	1252	232	1253	232	1251	232	24	1144	254	1143	254	1145	254
462.libquantum	24	746	667	746	667	746	667	24	746	667	746	667	746	667
464.h264ref	24	1630	326	1650	322	1648	322	24	1642	323	1646	323	1648	322
471.omnetpp	24	789	190	788	190	787	191	24	766	196	767	196	769	195
473.astar	24	1115	151	1117	151	1112	152	24	1018	165	1019	165	1018	165
483.xalancbmk	24	614	270	614	270	614	270	24	614	270	614	270	614	270

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

 Turbo Mode enabled
 Turbo Boost set to Traditional
 Power C-states enabled
 Demand Scrub disabled

 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
 Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502

icc -m32

icpc -m32

-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch

403.gcc:

	icpc -m32
473.astar:	icpc -m64

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32
403.gcc:	basepeak = yes
429.mcf:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64
483.xalancbmk:	basepeak = yes

403.gcc:
