| CPU2006 license: | 6 | Test date: | Jul-2010 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Aug-2010 |
| Tested by: | Oracle Corporation | Software Availability: | Jun-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5680 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 or 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB DDR3-1333 CL9, 2 Rank, ECC) |
| Disk Subsystem: | 1 x 1 TB, SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Solaris 10 10/09 |
| Compiler: | Oracle Solaris Studio Express 6/10 |
| Auto Parallel: | No |
| File System: | ufs |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 9.01 for x64 |

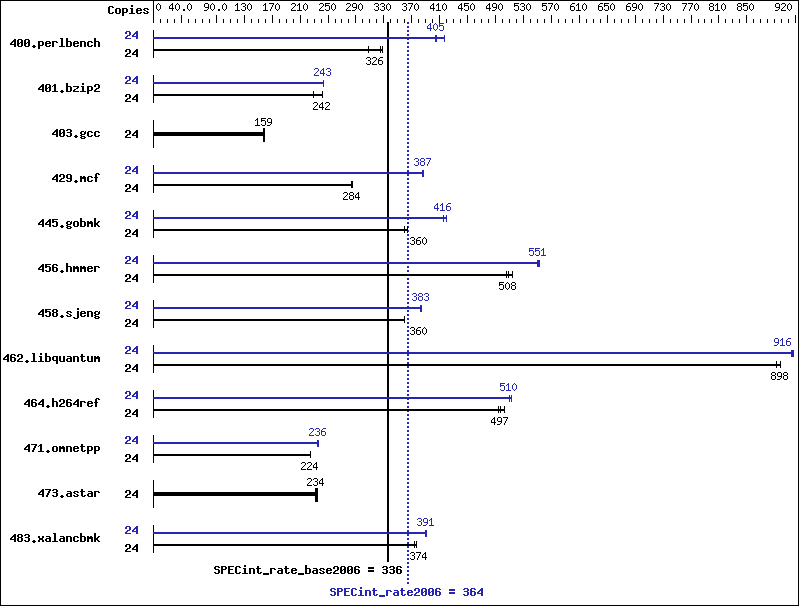

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 761 | 308 | 715 | 328 | 720 | 326 | 24 | 580 | 404 | 562 | 418 | 579 | 405 |
| 401.bzip2 | 24 | 1009 | 230 | 955 | 242 | 959 | 242 | 24 | 953 | 243 | 953 | 243 | 951 | 244 |
| 403.gcc | 24 | 1216 | 159 | 1216 | 159 | 1222 | 158 | 24 | 1216 | 159 | 1216 | 159 | 1222 | 158 |
| 429.mcf | 24 | 768 | 285 | 770 | 284 | 770 | 284 | 24 | 566 | 387 | 565 | 387 | 567 | 386 |
| 445.gobmk | 24 | 692 | 364 | 699 | 360 | 701 | 359 | 24 | 600 | 420 | 605 | 416 | 605 | 416 |
| 456.hmmer | 24 | 435 | 514 | 443 | 506 | 441 | 508 | 24 | 407 | 550 | 405 | 553 | 406 | 551 |
| 458.sjeng | 24 | 806 | 360 | 807 | 360 | 806 | 360 | 24 | 758 | 383 | 757 | 384 | 757 | 383 |
| 462.libquantum | 24 | 553 | 899 | 554 | 898 | 557 | 892 | 24 | 543 | 916 | 543 | 916 | 544 | 914 |
| 464.h264ref | 24 | 1076 | 494 | 1057 | 502 | 1068 | 497 | 24 | 1042 | 509 | 1041 | 510 | 1037 | 512 |
| 471.omnetpp | 24 | 669 | 224 | 668 | 224 | 668 | 224 | 24 | 636 | 236 | 636 | 236 | 637 | 235 |
| 473.astar | 24 | 717 | 235 | 720 | 234 | 726 | 232 | 24 | 717 | 235 | 720 | 234 | 726 | 232 |
| 483.xalancbmk | 24 | 443 | 374 | 440 | 376 | 442 | 374 | 24 | 424 | 391 | 424 | 391 | 425 | 390 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
ulimit -s 131072 (shell): increases stack
/etc/system parameters
tune_t_fsflushr=10
autoup=900
lpg_alloc_prefer=1
Platform Notes
Default BIOS settings used except:
Hardware Prefetch : Enabled
Adjacent Cache Line Prefetch : Enabled
Data Reuse Optimization : Disabled
Intel C-STATE technology : Disabled
General Notes
Environment variables set by runspec before the start of the run: SUNW_MP_PROCBIND = "TRUE" SUNW_MP_THR_IDLE = "SPIN"
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_X64 -DSPEC_CPU_LP64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_SOLARIS -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_SOLARIS -DSPEC_CPU_LP64 |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Base Optimization Flags
C benchmarks:
| -fast -xipo=2 -m64 -xaddr32=yes -xpagesize=2M |
C++ benchmarks:
| -fast -xipo=2 -xpagesize=2M -xalias_level=compatible -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap -library=stlport4 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_X64 -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_SOLARIS -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=1 -m64 -xalias_level=std -lbsdmalloc |
| 401.bzip2: | -fast -xipo=2 -m64 -xpagesize=2M -xalias_level=std -lumem |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m32 -xpagesize=2M -xalias_level=strong -xprefetch=no%auto -lbsdmalloc |
| 445.gobmk: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -m64 -xpagesize=2M -xrestrict -xalias_level=strong |
| 456.hmmer: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64 |
| 458.sjeng: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64 -xpagesize=2M -xalias_level=strong |
| 462.libquantum: | -fast -xipo=2 -m64 -xalias_level=std |
| 464.h264ref: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64 -xalias_level=strong -xrestrict |
C++ benchmarks:
| 471.omnetpp: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -xpagesize=2M -library=stlport4 -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -xunroll=2 -xpagesize=2M -xalias_level=compatible -library=stlport4 -m32 -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap |
