| CPU2006 license: | 6 | Test date: | Aug-2010 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Aug-2010 |
| Tested by: | Oracle Corporation | Software Availability: | Jun-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5680 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 or 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB DDR3-1333 CL9, 2 Rank, ECC) |
| Disk Subsystem: | 1 x 1 TB, SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Solaris 10 10/09 |
| Compiler: | Oracle Solaris Studio Express 6/10 |
| Auto Parallel: | No |
| File System: | ufs |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Apache C++ Standard Library V4.2.1 |

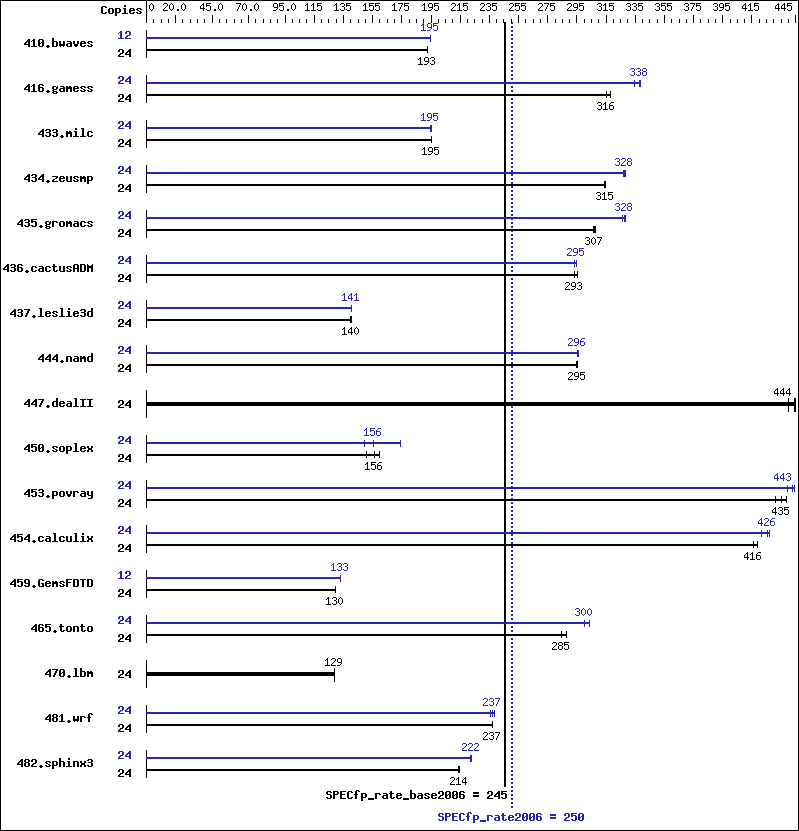

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 24 | 1692 | 193 | 1692 | 193 | 1693 | 193 | 12 | 838 | 195 | 836 | 195 | 837 | 195 |
| 416.gamess | 24 | 1489 | 316 | 1479 | 318 | 1491 | 315 | 24 | 1389 | 338 | 1391 | 338 | 1406 | 334 |
| 433.milc | 24 | 1128 | 195 | 1128 | 195 | 1128 | 195 | 24 | 1130 | 195 | 1131 | 195 | 1130 | 195 |
| 434.zeusmp | 24 | 694 | 315 | 696 | 314 | 694 | 315 | 24 | 665 | 328 | 668 | 327 | 666 | 328 |
| 435.gromacs | 24 | 556 | 308 | 558 | 307 | 559 | 307 | 24 | 523 | 328 | 526 | 326 | 522 | 329 |
| 436.cactusADM | 24 | 978 | 293 | 978 | 293 | 972 | 295 | 24 | 973 | 295 | 972 | 295 | 978 | 293 |
| 437.leslie3d | 24 | 1609 | 140 | 1610 | 140 | 1609 | 140 | 24 | 1604 | 141 | 1603 | 141 | 1604 | 141 |
| 444.namd | 24 | 652 | 295 | 651 | 296 | 653 | 295 | 24 | 652 | 295 | 651 | 296 | 651 | 296 |
| 447.dealII | 24 | 618 | 445 | 624 | 440 | 618 | 444 | 24 | 618 | 445 | 624 | 440 | 618 | 444 |
| 450.soplex | 24 | 1252 | 160 | 1280 | 156 | 1327 | 151 | 24 | 1340 | 149 | 1285 | 156 | 1148 | 174 |
| 453.povray | 24 | 296 | 431 | 291 | 439 | 293 | 435 | 24 | 288 | 443 | 287 | 444 | 291 | 439 |
| 454.calculix | 24 | 476 | 416 | 473 | 419 | 476 | 416 | 24 | 465 | 426 | 463 | 427 | 469 | 422 |
| 459.GemsFDTD | 24 | 1962 | 130 | 1962 | 130 | 1966 | 130 | 12 | 959 | 133 | 959 | 133 | 959 | 133 |
| 465.tonto | 24 | 831 | 284 | 820 | 288 | 830 | 285 | 24 | 778 | 303 | 787 | 300 | 787 | 300 |
| 470.lbm | 24 | 2554 | 129 | 2554 | 129 | 2560 | 129 | 24 | 2554 | 129 | 2554 | 129 | 2560 | 129 |
| 481.wrf | 24 | 1132 | 237 | 1129 | 237 | 1129 | 237 | 24 | 1126 | 238 | 1139 | 235 | 1131 | 237 |
| 482.sphinx3 | 24 | 2182 | 214 | 2188 | 214 | 2184 | 214 | 24 | 2104 | 222 | 2102 | 223 | 2103 | 222 |
Compiler Invocation Notes
The Apache C++ Standard Library V4.2.1 was installed from http://stdcxx.apache.org/download.html using: alias gmake=specmake gmake BUILDTYPE=8D CONFIG=sunpro.config
Submit Notes
The config file option 'submit' was used.
Operating System Notes
ulimit -s 131072 (shell): increases stack
/etc/system parameters
tune_t_fsflushr=10
autoup=900
lpg_alloc_prefer=1
Platform Notes
Default BIOS settings used except:
Hardware Prefetch : Enabled
Adjacent Cache Line Prefetch : Enabled
Data Reuse Optimization : Disabled
Intel C-STATE technology : Disabled
General Notes
Environment variables set by runspec before the start of the run: SUNW_MP_PROCBIND = "TRUE" SUNW_MP_THR_IDLE = "SPIN" 447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used. 447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.
Base Compiler Invocation
C benchmarks:
| cc |
C++ benchmarks:
| CC |
Fortran benchmarks:
| f90 |
Benchmarks using both Fortran and C:
| cc f90 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 |
| 436.cactusADM: | -DSPEC_CPU_LP64 |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_WORDS_LITTLEENDIAN |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -fast -xipo=2 -m64 -xpagesize=2M -xalias_level=std |
C++ benchmarks:
Fortran benchmarks:
| -fast -xipo=2 -m64 -xpagesize=2M |
Benchmarks using both Fortran and C:
| -fast(cc) -xipo=2 -m64 -xpagesize=2M -xalias_level=std -fast(f90) |
Base Other Flags
C benchmarks:
| -V -# -xjobs=24 |
C++ benchmarks:
| -verbose=diags,version -xjobs=24 |
Fortran benchmarks:
| -V -v -xjobs=24 |
Benchmarks using both Fortran and C:
| -V -# -xjobs=24 -v |
Peak Compiler Invocation
C benchmarks:
| cc |
C++ benchmarks:
| CC |
Fortran benchmarks:
| f90 |
Benchmarks using both Fortran and C:
| cc f90 |
Peak Portability Flags
| 436.cactusADM: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_WORDS_LITTLEENDIAN |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -fast -xipo=2 -m64 -xpagesize=2M -xalias_level=std |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -fast -xipo=2 -m64 -xpagesize=2M -xalias_level=std -xunroll=3 -xprefetch=no%auto |
C++ benchmarks:
| 444.namd: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64 -xpagesize=2M -xalias_level=compatible -library=stlport4 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -xpagesize=2M -xalias_level=compatible -library=stlport4 -m32 -qoption iropt -Rujam -qoption iropt -Rtile |
| 453.povray: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64 -xpagesize=2M -xvector=no%simd -xalias_level=compatible -library=stlport4 |
Fortran benchmarks:
| 410.bwaves: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64 -xpagesize=2M |
| 416.gamess: | -fast -xipo=2 -m64 -xpagesize=2M -xunroll=1 -xvector=no%simd |
| 434.zeusmp: | Same as 410.bwaves |
| 437.leslie3d: | -fast -xipo=2 -m64 -Qoption ube -xprefetch_mult=2 |
| 459.GemsFDTD: | Same as 410.bwaves |
| 465.tonto: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64 -xvector=lib -xalias -lbsdmalloc |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xipo=2 -m64 -xpagesize=2M -Qoption ube -fsimple=3 |
| 436.cactusADM: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -m64 -fast(cc) -fast(f90) -xipo=0 -xpagesize=2M -xprefetch_level=2 -lumem |
| 454.calculix: | -fast(cc) -fast(f90) -xipo=2 -m64 -xpagesize=2M -xunroll=3 -xprefetch_level=2 -xprefetch_auto_type=indirect_array_access |
| 481.wrf: | -fast(cc) -fast(f90) -xipo=2 -m64 -xpagesize=2M |
