| CPU2006 license: | 19 | Test date: | Jul-2010 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jul-2010 |
| Tested by: | Fujitsu | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Pentium G6950 |
| CPU Characteristics: | |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4x4 GB PC3-10600E, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
| Disk Subsystem: | 1 x SATA, 160 GB, 5400 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

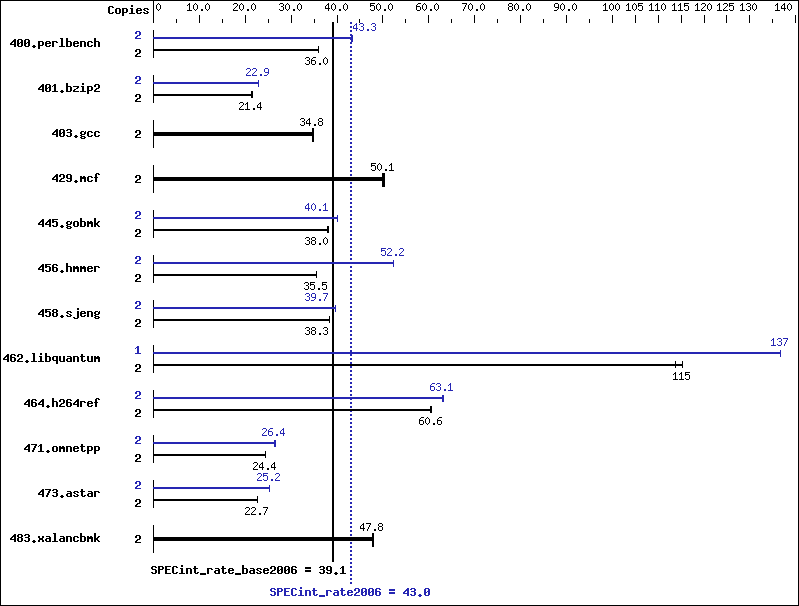

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 542 | 36.0 | 542 | 36.0 | 543 | 36.0 | 2 | 452 | 43.3 | 450 | 43.4 | 452 | 43.2 |
| 401.bzip2 | 2 | 905 | 21.3 | 898 | 21.5 | 902 | 21.4 | 2 | 844 | 22.9 | 844 | 22.9 | 847 | 22.8 |
| 403.gcc | 2 | 463 | 34.7 | 463 | 34.8 | 462 | 34.8 | 2 | 463 | 34.7 | 463 | 34.8 | 462 | 34.8 |
| 429.mcf | 2 | 363 | 50.3 | 365 | 49.9 | 364 | 50.1 | 2 | 363 | 50.3 | 365 | 49.9 | 364 | 50.1 |
| 445.gobmk | 2 | 552 | 38.0 | 552 | 38.0 | 552 | 38.0 | 2 | 523 | 40.1 | 524 | 40.1 | 522 | 40.2 |
| 456.hmmer | 2 | 527 | 35.4 | 526 | 35.5 | 526 | 35.5 | 2 | 357 | 52.3 | 357 | 52.2 | 357 | 52.2 |
| 458.sjeng | 2 | 631 | 38.3 | 632 | 38.3 | 632 | 38.3 | 2 | 611 | 39.6 | 610 | 39.7 | 610 | 39.7 |
| 462.libquantum | 2 | 364 | 114 | 360 | 115 | 359 | 115 | 1 | 151 | 137 | 151 | 137 | 151 | 137 |
| 464.h264ref | 2 | 730 | 60.6 | 733 | 60.4 | 731 | 60.6 | 2 | 701 | 63.1 | 702 | 63.1 | 703 | 63.0 |
| 471.omnetpp | 2 | 511 | 24.5 | 512 | 24.4 | 512 | 24.4 | 2 | 473 | 26.4 | 472 | 26.5 | 473 | 26.4 |
| 473.astar | 2 | 618 | 22.7 | 617 | 22.7 | 617 | 22.7 | 2 | 557 | 25.2 | 555 | 25.3 | 556 | 25.2 |
| 483.xalancbmk | 2 | 288 | 47.8 | 288 | 47.8 | 289 | 47.7 | 2 | 288 | 47.8 | 288 | 47.8 | 289 | 47.7 |
Submit Notes
The config file option 'submit' was used. taskset was used to bind copies to the cores except for 462.libquantum peak
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
The system automatically configures the memory to run at 1067 MHz.
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSSE3 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
