| CPU2006 license: | 11 | Test date: | Jun-2010 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jun-2010 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7530 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.13 GHz |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB PC3-8500R CL7, Quad Rank, running at 800 MHz) |
| Disk Subsystem: | 2 x 50 GB SATA, SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

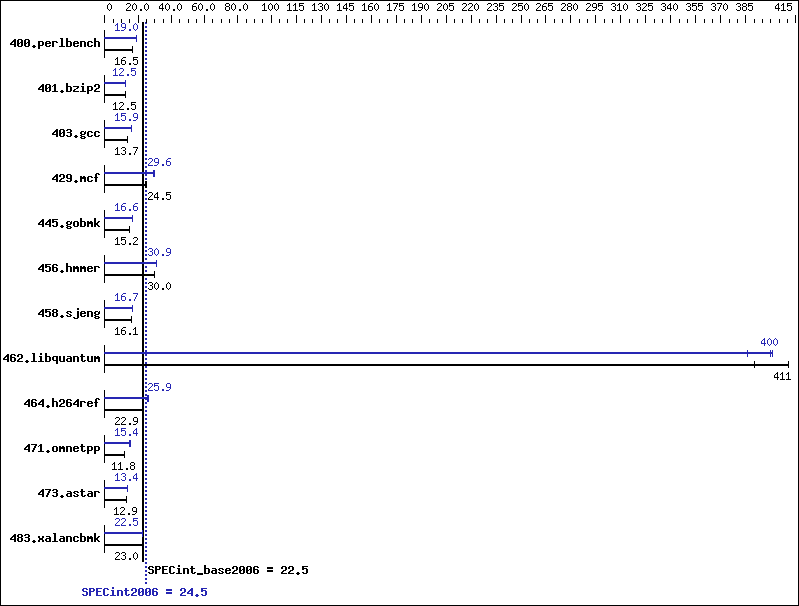

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 594 | 16.5 | 594 | 16.5 | 594 | 16.4 | 513 | 19.1 | 515 | 19.0 | 515 | 19.0 |
| 401.bzip2 | 772 | 12.5 | 773 | 12.5 | 774 | 12.5 | 772 | 12.5 | 771 | 12.5 | 769 | 12.5 |
| 403.gcc | 589 | 13.7 | 590 | 13.7 | 590 | 13.6 | 506 | 15.9 | 506 | 15.9 | 509 | 15.8 |
| 429.mcf | 373 | 24.5 | 373 | 24.4 | 362 | 25.2 | 309 | 29.6 | 303 | 30.1 | 310 | 29.5 |
| 445.gobmk | 693 | 15.1 | 692 | 15.2 | 692 | 15.2 | 632 | 16.6 | 632 | 16.6 | 635 | 16.5 |
| 456.hmmer | 311 | 30.0 | 315 | 29.6 | 311 | 30.0 | 301 | 31.0 | 302 | 30.9 | 302 | 30.9 |
| 458.sjeng | 752 | 16.1 | 752 | 16.1 | 751 | 16.1 | 724 | 16.7 | 726 | 16.7 | 724 | 16.7 |
| 462.libquantum | 53.1 | 391 | 50.5 | 411 | 50.5 | 411 | 53.7 | 386 | 51.9 | 400 | 51.7 | 401 |
| 464.h264ref | 987 | 22.4 | 968 | 22.9 | 966 | 22.9 | 854 | 25.9 | 851 | 26.0 | 854 | 25.9 |
| 471.omnetpp | 528 | 11.8 | 522 | 12.0 | 528 | 11.8 | 413 | 15.1 | 406 | 15.4 | 406 | 15.4 |
| 473.astar | 545 | 12.9 | 542 | 12.9 | 543 | 12.9 | 525 | 13.4 | 525 | 13.4 | 523 | 13.4 |
| 483.xalancbmk | 298 | 23.1 | 301 | 23.0 | 300 | 23.0 | 305 | 22.6 | 307 | 22.5 | 307 | 22.5 |
Platform Notes
Turbo Boost set to Traditional
General Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
