| CPU2006 license: | 9008 | Test date: | May-2010 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Apr-2010 |
| Tested by: | ACTION S.A. | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L5609 |
| CPU Characteristics: | |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB, PC3-10600R, CL7, ECC) |
| Disk Subsystem: | 1x 500 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

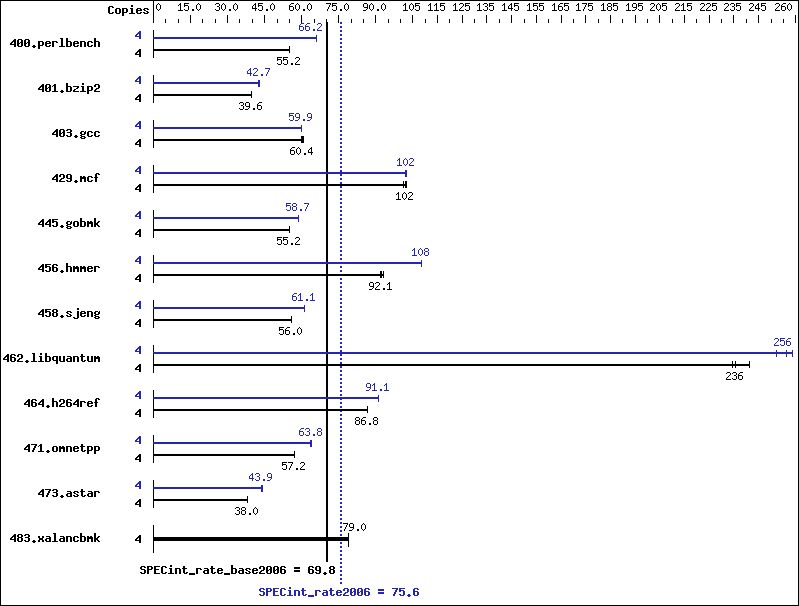

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 708 | 55.2 | 709 | 55.1 | 708 | 55.2 | 4 | 591 | 66.2 | 590 | 66.2 | 592 | 66.0 |
| 401.bzip2 | 4 | 973 | 39.7 | 974 | 39.6 | 975 | 39.6 | 4 | 904 | 42.7 | 902 | 42.8 | 903 | 42.7 |
| 403.gcc | 4 | 533 | 60.4 | 536 | 60.1 | 532 | 60.6 | 4 | 536 | 60.0 | 538 | 59.9 | 539 | 59.8 |
| 429.mcf | 4 | 360 | 101 | 358 | 102 | 356 | 102 | 4 | 357 | 102 | 356 | 102 | 357 | 102 |
| 445.gobmk | 4 | 760 | 55.2 | 761 | 55.1 | 760 | 55.2 | 4 | 716 | 58.6 | 714 | 58.7 | 715 | 58.7 |
| 456.hmmer | 4 | 400 | 93.2 | 405 | 92.1 | 406 | 91.8 | 4 | 344 | 108 | 344 | 108 | 344 | 108 |
| 458.sjeng | 4 | 865 | 55.9 | 864 | 56.0 | 864 | 56.0 | 4 | 793 | 61.1 | 793 | 61.1 | 792 | 61.1 |
| 462.libquantum | 4 | 352 | 236 | 353 | 235 | 344 | 241 | 4 | 329 | 252 | 320 | 259 | 323 | 256 |
| 464.h264ref | 4 | 1020 | 86.8 | 1021 | 86.7 | 1020 | 86.8 | 4 | 972 | 91.1 | 972 | 91.1 | 971 | 91.1 |
| 471.omnetpp | 4 | 437 | 57.2 | 437 | 57.2 | 437 | 57.2 | 4 | 392 | 63.8 | 392 | 63.7 | 392 | 63.8 |
| 473.astar | 4 | 739 | 38.0 | 738 | 38.0 | 739 | 38.0 | 4 | 640 | 43.9 | 638 | 44.0 | 640 | 43.8 |
| 483.xalancbmk | 4 | 349 | 79.0 | 349 | 79.0 | 350 | 78.8 | 4 | 349 | 79.0 | 349 | 79.0 | 350 | 78.8 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
