| CPU2006 license: | 13 | Test date: | Mar-2010 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Mar-2010 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5677 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.73 GHz |
| CPU MHz: | 3467 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6x 4GB DDR3-1333, ECC, CL9) |
| Disk Subsystem: | 1 x 300 GB SATA, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 7 Enterprise (64-bit) |
| Compiler: | Intel C++ Compiler Professional 11.1 for Intel 64 Build 20090903 Package ID: w_cproc_p_11.1.045 Microsoft Visual Studio 2008 Professional SP1 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

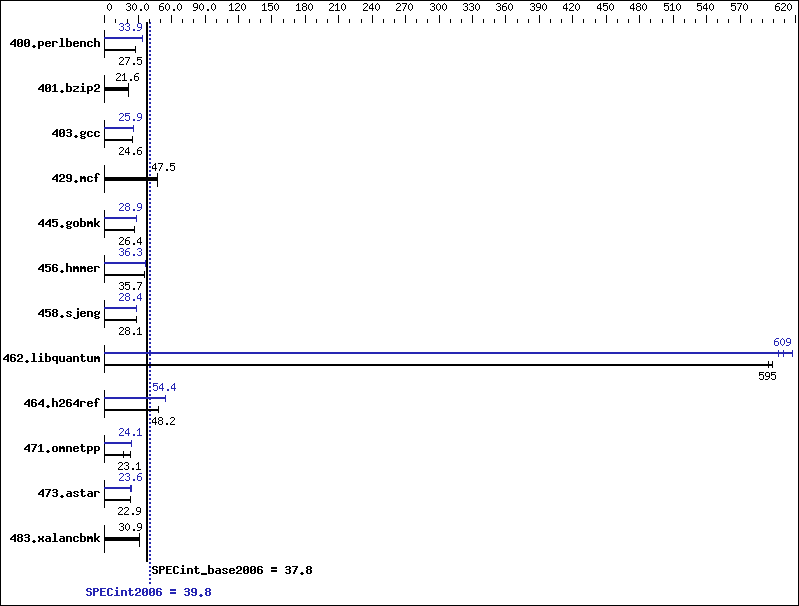

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 356 | 27.4 | 356 | 27.5 | 355 | 27.5 | 288 | 33.9 | 289 | 33.9 | 289 | 33.8 |
| 401.bzip2 | 447 | 21.6 | 447 | 21.6 | 447 | 21.6 | 447 | 21.6 | 447 | 21.6 | 447 | 21.6 |
| 403.gcc | 328 | 24.6 | 328 | 24.6 | 328 | 24.5 | 311 | 25.9 | 312 | 25.8 | 311 | 25.9 |
| 429.mcf | 192 | 47.5 | 192 | 47.5 | 193 | 47.2 | 192 | 47.5 | 192 | 47.5 | 193 | 47.2 |
| 445.gobmk | 398 | 26.4 | 392 | 26.8 | 398 | 26.4 | 363 | 28.9 | 363 | 28.9 | 363 | 28.9 |
| 456.hmmer | 262 | 35.6 | 262 | 35.7 | 262 | 35.7 | 257 | 36.3 | 257 | 36.4 | 257 | 36.3 |
| 458.sjeng | 430 | 28.1 | 430 | 28.2 | 430 | 28.1 | 427 | 28.4 | 427 | 28.4 | 427 | 28.4 |
| 462.libquantum | 34.6 | 599 | 34.8 | 595 | 34.8 | 595 | 33.6 | 617 | 34.0 | 609 | 34.3 | 604 |
| 464.h264ref | 459 | 48.2 | 459 | 48.2 | 459 | 48.2 | 407 | 54.4 | 407 | 54.3 | 407 | 54.4 |
| 471.omnetpp | 376 | 16.6 | 270 | 23.2 | 270 | 23.1 | 260 | 24.1 | 259 | 24.1 | 260 | 24.0 |
| 473.astar | 307 | 22.9 | 307 | 22.9 | 308 | 22.8 | 298 | 23.6 | 298 | 23.5 | 298 | 23.6 |
| 483.xalancbmk | 223 | 31.0 | 223 | 30.9 | 223 | 30.9 | 223 | 31.0 | 223 | 30.9 | 223 | 30.9 |
General Notes
Tested systems is used with tower case, PC Power and Cooling dual 865W power supplys OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter System was configured with nVidia Quadro FX 370 discrete graphics card
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64_X64 -DSPEC_CPU_NO_NEED_VA_COPY |
| 401.bzip2: | -DSPEC_CPU_P64 |
| 403.gcc: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
| 429.mcf: | -DSPEC_CPU_P64 |
| 445.gobmk: | -DSPEC_CPU_P64 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DSPEC_CPU_P64 -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 471.omnetpp: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -DSPEC_CPU_P64 -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qauto-ilp32 /F512000000 |
C++ benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | basepeak = yes |
| 403.gcc: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qauto-ilp32 /F512000000 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias -Qauto-ilp32 /F512000000 |
| 456.hmmer: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F512000000 |
| 458.sjeng: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto-ilp32 /F512000000 |
| 462.libquantum: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-schedule-static:32768 -Qansi-alias -Qauto-ilp32 /F512000000 |
| 464.h264ref: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
