SPEC® CFP2006 Result

Fujitsu

PRIMEQUEST 1800E(Intel Xeon X7560)

SPECfp®_rate2006 = 904

SPECfp_rate_base2006 = 887

CPU2006 license:	19	Test date:	Mar-2010
Test sponsor:	Fujitsu	Hardware Availability:	Jun-2010
Tested by:	Fujitsu	Software Availability:	Feb-2010

Hardware
CPU Name:	Intel Xeon X7560
CPU Characteristics:	Intel Turbo Boost Technology up to 2.67 GHz
CPU MHz:	2266
FPU:	Integrated
CPU(s) enabled:	64 cores, 8 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable:	1-8 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	24 MB I+D on chip per chip
Other Cache:	None
Memory:	512 GB(128x 4GB DDR3-1066 DIMMs)
Disk Subsystem:	147GB + 300GB (SAS, 15000RPM) No RAID configuration
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.4, Advanced Platform with patch RHSA-2010:0019, Kernel 2.6.18-164.10.1.el5
Compiler:	Intel C++ and Fortran Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20100203 Package ID: l_cproc_p_11.1.069
Auto Parallel:	No
File System:	ext2
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

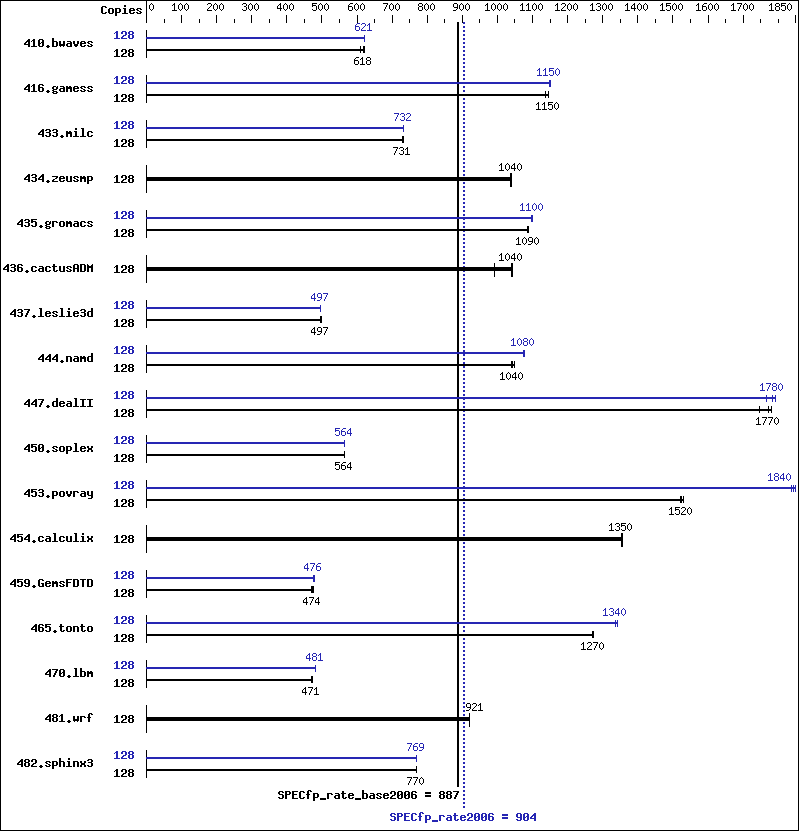

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	128	2847	611	2801	621	2816	618	128	2806	620	2800	621	2801	621
416.gamess	128	2187	1150	2189	1150	2202	1140	128	2180	1150	2183	1150	2182	1150
433.milc	128	1608	731	1607	731	1608	731	128	1604	732	1605	732	1605	732
434.zeusmp	128	1119	1040	1123	1040	1121	1040	128	1119	1040	1123	1040	1121	1040
435.gromacs	128	839	1090	841	1090	842	1090	128	833	1100	832	1100	830	1100
436.cactusADM	128	1541	993	1467	1040	1469	1040	128	1541	993	1467	1040	1469	1040
437.leslie3d	128	2419	497	2420	497	2423	497	128	2423	497	2431	495	2422	497
444.namd	128	978	1050	983	1040	986	1040	128	954	1080	954	1080	956	1070
447.dealII	128	826	1770	839	1750	822	1780	128	817	1790	829	1770	820	1780
450.soplex	128	1892	564	1892	564	1891	564	128	1894	564	1894	564	1895	563
453.povray	128	447	1520	445	1530	447	1520	128	369	1840	368	1850	371	1840
454.calculix	128	778	1360	779	1350	780	1350	128	778	1360	779	1350	780	1350
459.GemsFDTD	128	2857	475	2866	474	2897	469	128	2835	479	2860	475	2855	476
465.tonto	128	991	1270	989	1270	989	1270	128	939	1340	943	1340	942	1340
470.lbm	128	3729	472	3734	471	3732	471	128	3658	481	3658	481	3662	480
481.wrf	128	1554	920	1552	921	1552	922	128	1554	920	1552	921	1552	922
482.sphinx3	128	3240	770	3241	770	3242	769	128	3239	770	3242	769	3246	769

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

The following command was used prior to run

   ulimit -s unlimited
   mkdir /dev/cpuset
   mount -t cpuset none /dev/cpuset
   echo 1 > /dev/cpuset/memory_spread_page

Base Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -opt-prefetch
470.lbm:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -auto-ilp32
482.sphinx3:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2

C++ benchmarks:

444.namd:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32
447.dealII:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep-
450.soplex:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3
453.povray:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch
416.gamess:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	basepeak = yes
437.leslie3d:	-xSSE4.2 -ipo -O3 -no-prec-div -static
459.GemsFDTD:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0
465.tonto:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Fujitsu.PQ1800.ic11.1-linux64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Fujitsu.PQ1800.ic11.1-linux64.xml.
