| CPU2006 license: | 9006 | Test date: | Feb-2010 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jan-2010 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3460 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB PC3-10600R, 2 rank, CL9, ECC) |
| Disk Subsystem: | 1x160 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091012 Package ID: l_cproc_p_11.1.059 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

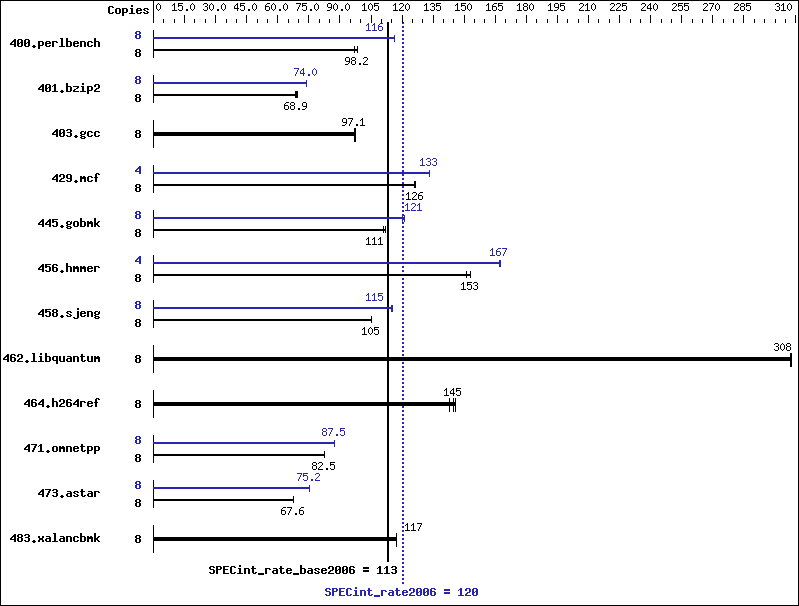

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 796 | 98.2 | 793 | 98.6 | 804 | 97.2 | 8 | 672 | 116 | 672 | 116 | 673 | 116 |
| 401.bzip2 | 8 | 1114 | 69.3 | 1124 | 68.7 | 1120 | 68.9 | 8 | 1043 | 74.0 | 1042 | 74.1 | 1045 | 73.9 |
| 403.gcc | 8 | 662 | 97.3 | 664 | 97.0 | 663 | 97.1 | 8 | 662 | 97.3 | 664 | 97.0 | 663 | 97.1 |
| 429.mcf | 8 | 578 | 126 | 579 | 126 | 577 | 126 | 4 | 274 | 133 | 274 | 133 | 274 | 133 |
| 445.gobmk | 8 | 755 | 111 | 749 | 112 | 756 | 111 | 8 | 693 | 121 | 697 | 120 | 692 | 121 |
| 456.hmmer | 8 | 495 | 151 | 488 | 153 | 488 | 153 | 4 | 223 | 167 | 223 | 167 | 224 | 167 |
| 458.sjeng | 8 | 921 | 105 | 920 | 105 | 920 | 105 | 8 | 838 | 115 | 841 | 115 | 841 | 115 |
| 462.libquantum | 8 | 538 | 308 | 539 | 308 | 539 | 308 | 8 | 538 | 308 | 539 | 308 | 539 | 308 |
| 464.h264ref | 8 | 1239 | 143 | 1214 | 146 | 1221 | 145 | 8 | 1239 | 143 | 1214 | 146 | 1221 | 145 |
| 471.omnetpp | 8 | 606 | 82.5 | 606 | 82.5 | 606 | 82.5 | 8 | 572 | 87.5 | 571 | 87.5 | 572 | 87.4 |
| 473.astar | 8 | 832 | 67.5 | 830 | 67.7 | 830 | 67.6 | 8 | 747 | 75.1 | 747 | 75.2 | 747 | 75.2 |
| 483.xalancbmk | 8 | 470 | 117 | 471 | 117 | 470 | 117 | 8 | 470 | 117 | 471 | 117 | 470 | 117 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
Default BIOS settings were used.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib64 -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
