SPEC® CFP2006 Result

Intel Corporation

Asus P5E3 Pro motherboard (Intel Core 2 Duo E8600)

SPECfp®_rate2006 = 38.0

SPECfp_rate_base2006 = 36.9

CPU2006 license:	13	Test date:	Feb-2010
Test sponsor:	Intel Corporation	Hardware Availability:	Jun-2009
Tested by:	Intel Corporation	Software Availability:	Oct-2009

Hardware
CPU Name:	Intel Core 2 Duo E8600
CPU Characteristics:
CPU MHz:	3333
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	6 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	4 GB (2x2GB Micron MT16JTF25664AZ-1G4 DDR3-1333 CL9)
Disk Subsystem:	Intel X25-M 80GB SSD
Other Hardware:	None

Software
Operating System:	Windows Vista Ultimate w/ SP1 (64-bit)
Compiler:	Intel C++ Compiler Professional 11.1 for Intel 64 Build 20090903 Package ID: w_cproc_p_11.1.045 Intel Visual Fortran Compiler Professional 11.1 for Intel 64 Build 20090903 Package ID: w_cproc_p_11.1.045, w_cprof_p_11.1.045 Microsoft Visual Studio 2008 Professional SP1 (for libraries)
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	64-bit
Peak Pointers:	64-bit
Other Software:	None SmartHeap Library Version 8.1 from http://www.microquill.com/

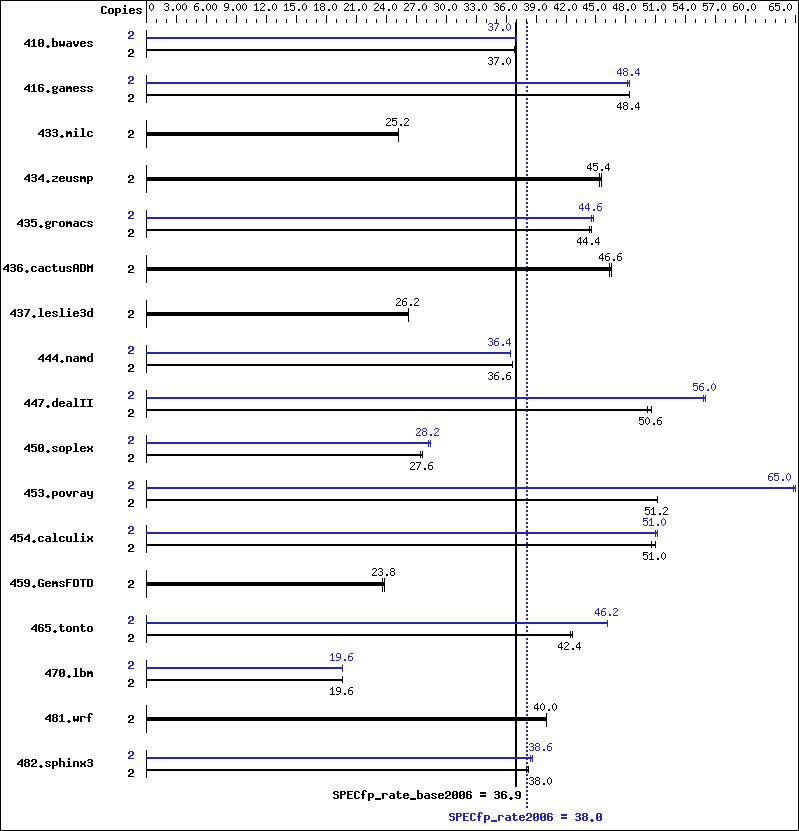

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	736	37.0	738	36.8	736	37.0	2	734	37.0	733	37.0	735	37.0
416.gamess	2	810	48.4	810	48.4	810	48.4	2	810	48.4	811	48.2	810	48.4
433.milc	2	727	25.2	726	25.2	726	25.2	2	727	25.2	726	25.2	726	25.2
434.zeusmp	2	402	45.4	399	45.6	401	45.4	2	402	45.4	399	45.6	401	45.4
435.gromacs	2	321	44.4	321	44.4	321	44.6	2	319	44.8	320	44.6	320	44.6
436.cactusADM	2	513	46.6	513	46.6	515	46.4	2	513	46.6	513	46.6	515	46.4
437.leslie3d	2	716	26.2	716	26.2	716	26.2	2	716	26.2	716	26.2	716	26.2
444.namd	2	438	36.6	438	36.6	439	36.6	2	440	36.4	440	36.4	440	36.4
447.dealII	2	452	50.6	452	50.6	456	50.2	2	409	56.0	410	55.8	409	56.0
450.soplex	2	606	27.6	607	27.4	606	27.6	2	587	28.4	590	28.2	590	28.2
453.povray	2	208	51.2	208	51.2	208	51.2	2	164	64.8	164	65.0	164	65.0
454.calculix	2	323	51.0	327	50.6	323	51.0	2	323	51.0	322	51.2	323	51.0
459.GemsFDTD	2	892	23.8	896	23.6	892	23.8	2	892	23.8	896	23.6	892	23.8
465.tonto	2	463	42.4	463	42.6	464	42.4	2	427	46.2	426	46.2	427	46.2
470.lbm	2	1400	19.6	1402	19.6	1398	19.6	2	1400	19.6	1401	19.6	1403	19.6
481.wrf	2	559	40.0	558	40.0	558	40.0	2	559	40.0	558	40.0	558	40.0
482.sphinx3	2	1025	38.0	1025	38.0	1020	38.2	2	1012	38.6	1013	38.4	1012	38.6

Submit Notes

The config file option 'submit' was used.
Windows start command was used to bind copies to processors

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 System was configured with an ATI 5970 discrete graphics card

Base Compiler Invocation

C benchmarks:

icl -Qvc9 -Qstd=c99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_P64 /Qlowercase
416.gamess:	-DSPEC_CPU_P64
433.milc:	-DSPEC_CPU_P64
434.zeusmp:	-DSPEC_CPU_P64
435.gromacs:	-DSPEC_CPU_P64
436.cactusADM:	-DSPEC_CPU_P64 -Qlowercase /assume:underscore
437.leslie3d:	-DSPEC_CPU_P64
444.namd:	-DSPEC_CPU_P64 /TP
447.dealII:	-DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:	-DSPEC_CPU_P64
453.povray:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase
459.GemsFDTD:	-DSPEC_CPU_P64
465.tonto:	-DSPEC_CPU_P64
470.lbm:	-DSPEC_CPU_P64
481.wrf:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:	-DSPEC_CPU_P64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc9 -Qstd=c99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qstd=c99 ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	-QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE
482.sphinx3:	-QxSSE4.1 -Qipo -O3 -Qprec-div- -Qunroll2 -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:	-QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
447.dealII:	-QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qscalar-rep- -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
450.soplex:	-QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
453.povray:	-QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	-QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F1000000000 -link /FORCE:MULTIPLE
416.gamess:	Same as 410.bwaves
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:	-QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE
436.cactusADM:	basepeak = yes
454.calculix:	-QxSSE4.1 -Qipo -O3 -Qprec-div- -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20100302.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20100302.01.xml.
