| CPU2006 license: | 001176 | Test date: | Dec-2009 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Mar-2009 |
| Tested by: | Supermicro | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB DDR3-1333 RDIMM, CL9) |
| Disk Subsystem: | 300 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 x86_64, Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

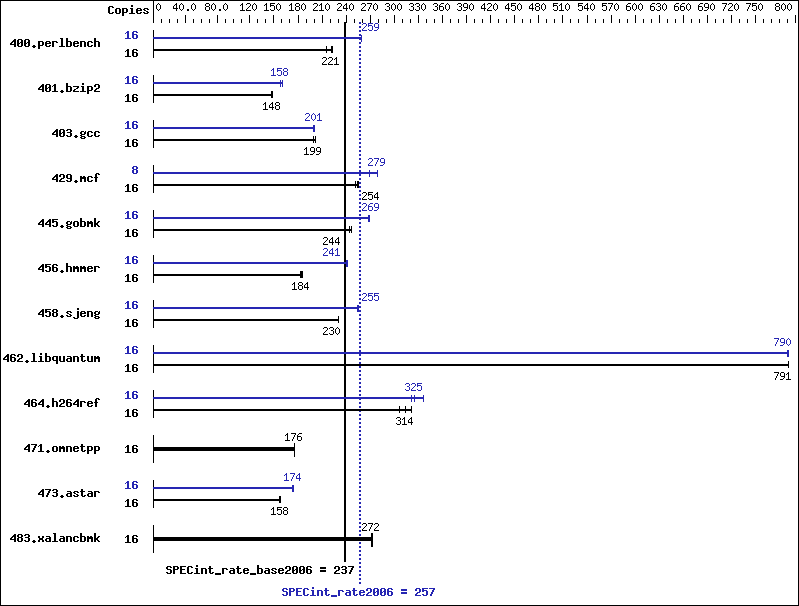

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 727 | 215 | 706 | 221 | 702 | 223 | 16 | 603 | 259 | 604 | 259 | 603 | 259 |
| 401.bzip2 | 16 | 1045 | 148 | 1043 | 148 | 1049 | 147 | 16 | 975 | 158 | 975 | 158 | 959 | 161 |
| 403.gcc | 16 | 646 | 199 | 647 | 199 | 640 | 201 | 16 | 648 | 199 | 641 | 201 | 641 | 201 |
| 429.mcf | 16 | 581 | 251 | 572 | 255 | 575 | 254 | 8 | 271 | 270 | 261 | 280 | 261 | 279 |
| 445.gobmk | 16 | 680 | 247 | 689 | 244 | 689 | 244 | 16 | 626 | 268 | 624 | 269 | 623 | 269 |
| 456.hmmer | 16 | 814 | 183 | 812 | 184 | 804 | 186 | 16 | 620 | 241 | 617 | 242 | 621 | 240 |
| 458.sjeng | 16 | 840 | 230 | 842 | 230 | 839 | 231 | 16 | 758 | 255 | 761 | 255 | 760 | 255 |
| 462.libquantum | 16 | 419 | 791 | 419 | 790 | 419 | 791 | 16 | 419 | 790 | 419 | 791 | 420 | 790 |
| 464.h264ref | 16 | 1102 | 321 | 1155 | 307 | 1127 | 314 | 16 | 1055 | 336 | 1089 | 325 | 1101 | 321 |
| 471.omnetpp | 16 | 569 | 176 | 569 | 176 | 569 | 176 | 16 | 569 | 176 | 569 | 176 | 569 | 176 |
| 473.astar | 16 | 713 | 158 | 709 | 158 | 710 | 158 | 16 | 646 | 174 | 647 | 174 | 646 | 174 |
| 483.xalancbmk | 16 | 406 | 272 | 405 | 272 | 406 | 272 | 16 | 406 | 272 | 405 | 272 | 406 | 272 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
General Notes
System can be built with CSE-710M-260B. To ensure system stability, enclosure SBE-710E-28D with a minimum of 2 1400W power supplies are needed. Product description can be obtained at: http://www.supermicro.com/servers/blade/module/
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
