| CPU2006 license: | 55 | Test date: | Sep-2009 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2009 |
| Tested by: | Dell Inc. | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5502 |
| CPU Characteristics: | |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (4 x 1 GB DDR3-1066 DR RDIMM downclocked to 800 MHz) |
| Disk Subsystem: | 1 x 73 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ and Fortran Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Binutils 2.18.50.0.7.20080502 |

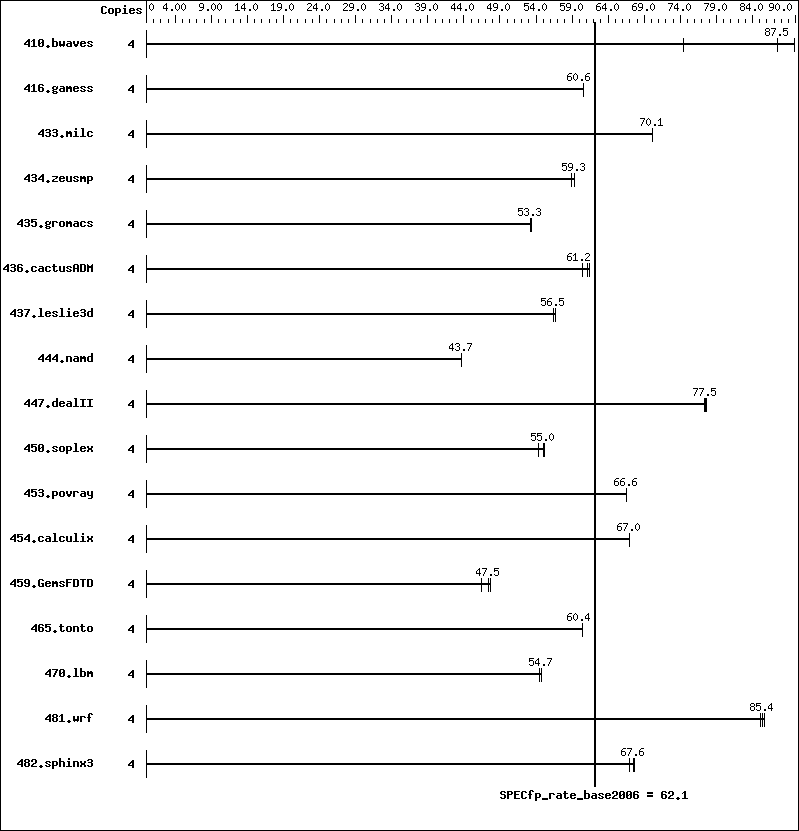

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 731 | 74.4 | 605 | 89.8 | 622 | 87.5 | |||||||
| 416.gamess | 4 | 1292 | 60.6 | 1293 | 60.6 | 1292 | 60.6 | |||||||
| 433.milc | 4 | 524 | 70.1 | 524 | 70.1 | 523 | 70.2 | |||||||
| 434.zeusmp | 4 | 617 | 59.0 | 613 | 59.4 | 614 | 59.3 | |||||||
| 435.gromacs | 4 | 536 | 53.3 | 536 | 53.3 | 536 | 53.2 | |||||||
| 436.cactusADM | 4 | 781 | 61.2 | 779 | 61.4 | 792 | 60.4 | |||||||
| 437.leslie3d | 4 | 663 | 56.7 | 666 | 56.5 | 667 | 56.4 | |||||||
| 444.namd | 4 | 735 | 43.7 | 736 | 43.6 | 735 | 43.7 | |||||||
| 447.dealII | 4 | 591 | 77.5 | 590 | 77.6 | 591 | 77.4 | |||||||
| 450.soplex | 4 | 605 | 55.2 | 606 | 55.0 | 613 | 54.4 | |||||||
| 453.povray | 4 | 320 | 66.5 | 320 | 66.6 | 320 | 66.6 | |||||||
| 454.calculix | 4 | 493 | 67.0 | 493 | 66.9 | 493 | 67.0 | |||||||
| 459.GemsFDTD | 4 | 889 | 47.7 | 914 | 46.4 | 894 | 47.5 | |||||||
| 465.tonto | 4 | 651 | 60.4 | 652 | 60.4 | 652 | 60.4 | |||||||
| 470.lbm | 4 | 1009 | 54.5 | 1003 | 54.8 | 1004 | 54.7 | |||||||
| 481.wrf | 4 | 523 | 85.4 | 525 | 85.2 | 522 | 85.6 | |||||||
| 482.sphinx3 | 4 | 1153 | 67.6 | 1154 | 67.6 | 1165 | 66.9 | |||||||
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
