| CPU2006 license: | 55 | Test date: | Sep-2009 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jun-2009 |
| Tested by: | Dell Inc. | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5502 |
| CPU Characteristics: | |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (2 x 2 GB DDR3-1066 DR RDIMM downclocked to 800 MHz) |
| Disk Subsystem: | 1 x 73 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ and Fortran Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.18.50.0.7.20080502 |

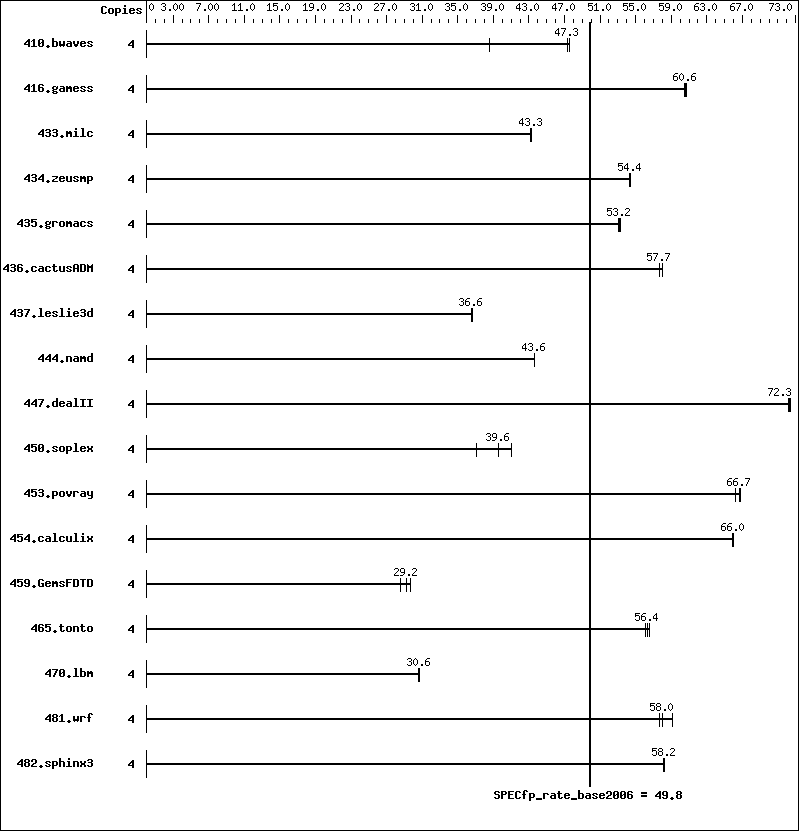

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 1408 | 38.6 | 1144 | 47.5 | 1148 | 47.3 | |||||||
| 416.gamess | 4 | 1291 | 60.7 | 1292 | 60.6 | 1294 | 60.5 | |||||||
| 433.milc | 4 | 849 | 43.2 | 848 | 43.3 | 848 | 43.3 | |||||||
| 434.zeusmp | 4 | 669 | 54.4 | 670 | 54.4 | 669 | 54.4 | |||||||
| 435.gromacs | 4 | 536 | 53.3 | 537 | 53.2 | 539 | 53.0 | |||||||
| 436.cactusADM | 4 | 829 | 57.7 | 824 | 58.0 | 829 | 57.6 | |||||||
| 437.leslie3d | 4 | 1029 | 36.6 | 1029 | 36.5 | 1025 | 36.7 | |||||||
| 444.namd | 4 | 735 | 43.7 | 735 | 43.6 | 735 | 43.6 | |||||||
| 447.dealII | 4 | 634 | 72.2 | 632 | 72.4 | 633 | 72.3 | |||||||
| 450.soplex | 4 | 813 | 41.0 | 900 | 37.1 | 843 | 39.6 | |||||||
| 453.povray | 4 | 319 | 66.7 | 321 | 66.2 | 319 | 66.7 | |||||||
| 454.calculix | 4 | 501 | 65.9 | 500 | 66.0 | 500 | 66.0 | |||||||
| 459.GemsFDTD | 4 | 1432 | 29.6 | 1489 | 28.5 | 1451 | 29.2 | |||||||
| 465.tonto | 4 | 698 | 56.4 | 701 | 56.1 | 696 | 56.5 | |||||||
| 470.lbm | 4 | 1795 | 30.6 | 1794 | 30.6 | 1790 | 30.7 | |||||||
| 481.wrf | 4 | 755 | 59.2 | 774 | 57.7 | 770 | 58.0 | |||||||
| 482.sphinx3 | 4 | 1341 | 58.1 | 1339 | 58.2 | 1337 | 58.3 | |||||||
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
