| CPU2006 license: | 55 | Test date: | Jul-2009 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Aug-2009 |
| Tested by: | Dell Inc. | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon W3580 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6x4 GB PC3-10600E) |
| Disk Subsystem: | 1 x 80GB SATA 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA-32, Version 11.0 Build 20090131 Package ID: w_cproc_p_11.0.072 Microsoft Visual Studio 2008 SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

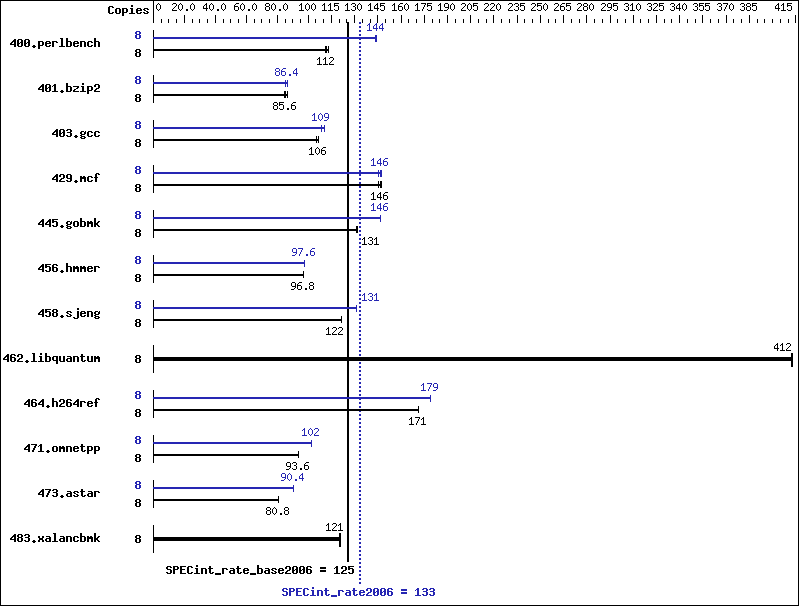

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 695 | 113 | 701 | 111 | 698 | 112 | 8 | 545 | 143 | 544 | 144 | 544 | 144 |
| 401.bzip2 | 8 | 898 | 85.6 | 907 | 84.8 | 892 | 86.4 | 8 | 896 | 86.4 | 901 | 85.6 | 895 | 86.4 |
| 403.gcc | 8 | 609 | 106 | 605 | 106 | 603 | 106 | 8 | 585 | 110 | 593 | 109 | 592 | 109 |
| 429.mcf | 8 | 497 | 147 | 500 | 146 | 499 | 146 | 8 | 494 | 147 | 497 | 146 | 500 | 146 |
| 445.gobmk | 8 | 640 | 131 | 638 | 131 | 638 | 132 | 8 | 573 | 146 | 574 | 146 | 574 | 146 |
| 456.hmmer | 8 | 770 | 96.8 | 769 | 96.8 | 769 | 96.8 | 8 | 765 | 97.6 | 765 | 97.6 | 766 | 97.6 |
| 458.sjeng | 8 | 795 | 122 | 794 | 122 | 794 | 122 | 8 | 738 | 131 | 736 | 131 | 737 | 131 |
| 462.libquantum | 8 | 402 | 412 | 403 | 412 | 402 | 413 | 8 | 402 | 412 | 403 | 412 | 402 | 413 |
| 464.h264ref | 8 | 1034 | 171 | 1035 | 171 | 1035 | 171 | 8 | 988 | 179 | 988 | 179 | 988 | 179 |
| 471.omnetpp | 8 | 534 | 93.6 | 533 | 93.6 | 533 | 93.6 | 8 | 489 | 102 | 489 | 102 | 489 | 102 |
| 473.astar | 8 | 697 | 80.8 | 696 | 80.8 | 697 | 80.8 | 8 | 619 | 90.4 | 620 | 90.4 | 619 | 90.4 |
| 483.xalancbmk | 8 | 458 | 121 | 458 | 121 | 460 | 120 | 8 | 458 | 121 | 458 | 121 | 460 | 120 |
Platform Notes
BIOS Settings Hyperthreading: ENABLE
General Notes
Binaries were built on Windows Vista Business (64-bit)
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 |
| 403.gcc: | -Qprof_gen(pass 1) -QxSSE4.2 -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 429.mcf: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
