| CPU2006 license: | 55 | Test date: | Jul-2009 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Aug-2009 |
| Tested by: | Dell Inc. | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon W3580 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6x4 GB PC3-10600E) |
| Disk Subsystem: | 1 x 80GB SATA 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA-32, Version 11.0 Build 20090131 Package ID: w_cproc_p_11.0.072 Microsoft Visual Studio 2008 SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

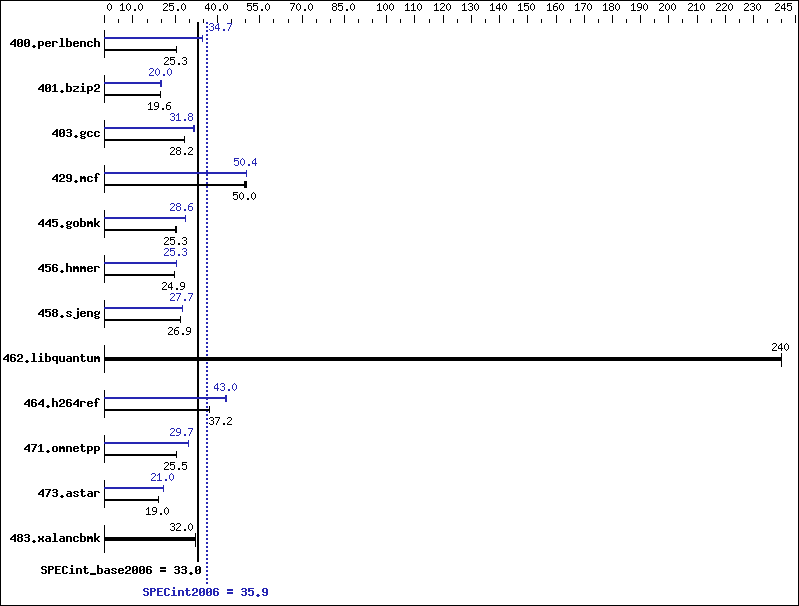

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 386 | 25.3 | 386 | 25.3 | 386 | 25.3 | 281 | 34.7 | 282 | 34.6 | 282 | 34.7 |
| 401.bzip2 | 492 | 19.6 | 492 | 19.6 | 492 | 19.6 | 484 | 20.0 | 484 | 19.9 | 484 | 20.0 |
| 403.gcc | 285 | 28.2 | 285 | 28.2 | 285 | 28.2 | 252 | 31.9 | 257 | 31.4 | 253 | 31.8 |
| 429.mcf | 183 | 50.0 | 184 | 49.5 | 181 | 50.4 | 181 | 50.4 | 181 | 50.3 | 181 | 50.4 |
| 445.gobmk | 415 | 25.3 | 415 | 25.3 | 416 | 25.2 | 367 | 28.6 | 368 | 28.5 | 367 | 28.6 |
| 456.hmmer | 375 | 24.9 | 375 | 24.9 | 375 | 24.9 | 369 | 25.3 | 369 | 25.3 | 369 | 25.3 |
| 458.sjeng | 451 | 26.9 | 451 | 26.9 | 451 | 26.8 | 438 | 27.7 | 437 | 27.7 | 438 | 27.6 |
| 462.libquantum | 86.3 | 240 | 86.4 | 240 | 86.4 | 240 | 86.3 | 240 | 86.4 | 240 | 86.4 | 240 |
| 464.h264ref | 595 | 37.2 | 595 | 37.2 | 595 | 37.2 | 515 | 43.0 | 516 | 42.9 | 515 | 43.0 |
| 471.omnetpp | 245 | 25.5 | 245 | 25.5 | 245 | 25.5 | 209 | 29.8 | 210 | 29.7 | 211 | 29.7 |
| 473.astar | 370 | 19.0 | 370 | 19.0 | 370 | 19.0 | 335 | 21.0 | 334 | 21.0 | 334 | 21.0 |
| 483.xalancbmk | 215 | 32.1 | 215 | 32.0 | 216 | 32.0 | 215 | 32.1 | 215 | 32.0 | 216 | 32.0 |
Platform Notes
BIOS Settings Hyperthreading: ENABLE
General Notes
Binaries were built on Windows Vista Business (64-bit)
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 |
C++ benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -QxSSE4.2 -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 |
| 403.gcc: | -Qprof_gen(pass 1) -QxSSE4.2 -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F512000000 |
| 429.mcf: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
