SPEC® CINT2006 Result

ScaleMP

vSMP Foundation with PowerEdge M610
(Intel Xeon X5570, 2.93 GHz)

SPECint®_rate2006 = Not Run

SPECint_rate_base2006 = 3150

CPU2006 license:	2929	Test date:	Aug-2009
Test sponsor:	ScaleMP	Hardware Availability:	Apr-2009
Tested by:	ScaleMP	Software Availability:	Apr-2009

Hardware
CPU Name:	Intel Xeon X5570
CPU Characteristics:	Intel Turbo Boost Technology is not-enabled
CPU MHz:	2933
FPU:	Integrated
CPU(s) enabled:	128 cores, 32 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable:	8,16,24,32,40,48,56,64,96,128 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	92 GB I+D off chip per system
Memory:	768 GB (16 x 2 x 6 x 4 GB DDR3-1066R, ECC, CL9)
Disk Subsystem:	16 x 160 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.3 (Tikanga) Kernel: 2.6.21.7-16.vSMP.nomc
Compiler:	Intel C++ Compiler 11.0 for Linux Build 20081105 Package ID: l_cproc_p_11.0.074
Auto Parallel:	No
File System:	xfs
System State:	Multi-user, run level 3
Base Pointers:	32-bit
Peak Pointers:	Not Applicable
Other Software:	Hoard (libhoard) 3.7.1, released Feb. 08, 2008 ScaleMP vSMP Foundation 2.0.65.35

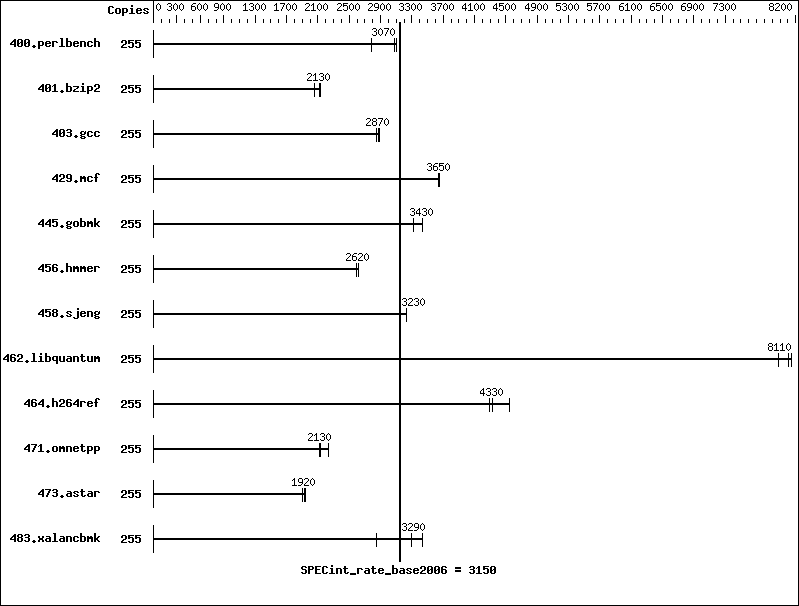

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	255	897	2780	810	3070	803	3100
401.bzip2	255	1198	2050	1151	2140	1158	2130
403.gcc	255	719	2850	714	2870	712	2880
429.mcf	255	636	3660	638	3640	637	3650
445.gobmk	255	805	3320	780	3430	780	3430
456.hmmer	255	917	2590	908	2620	908	2620
458.sjeng	255	956	3230	956	3230	956	3230
462.libquantum	255	662	7980	652	8110	649	8150
464.h264ref	255	1315	4290	1303	4330	1242	4540
471.omnetpp	255	754	2120	714	2230	748	2130
473.astar	255	939	1910	920	1950	931	1920
483.xalancbmk	255	618	2840	535	3290	513	3430

Submit Notes

The config file option 'submit' was used.
   numactl was used to bind copies to the cores

Platform Notes

  ScaleMP
      vSMP Foundation: 2.0.65.35
  Other Cache:
     ScaleMP vSMP Foundation manages cache coherency between the
     InfiniBand-connected systems via multiple concurrent memory
     coherency mechanisms, on a per-block basis, based on
     real-time memory activity access patterns.
     This mechanism reserves 92 GB of the main memory across all
     boards (distributed), which is used as a 4th level cache.
  Hardware Details:
     System was aggregated using 16 X Dell PowerEdge M610.
     The servers were connected with Melanox InfiniBand QDR and a
     QDR switch.
  CPU Characteristics: Intel Turbo Boost Technology not-enabled:
     As the prerequisites listed below for enablement of this
     technology did not exist.
     The prerequisites for Turbo Boost Technology are:
     - Hardware: Enabling Turbo Boost Technology require BIOS setting.
     - Software: OS needs to be ACPI-aware and set P0 power state.

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LINUX_IA32
462.libquantum:	-DSPEC_CPU_LINUX
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch

C++ benchmarks:

-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs /mnt/test/SPEC2006/cpu2006/libhoard.so

Base Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revE.20090918.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revE.20090918.xml.
