| CPU2006 license: | 9006 | Test date: | Jul-2009 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | May-2009 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3360 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-6400E, 2 rank, CL6-6-6, ECC) |
| Disk Subsystem: | 1x160 GB SATA2, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler Professional 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.069 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 Binutils 2.18.50.0.7.20080502 |

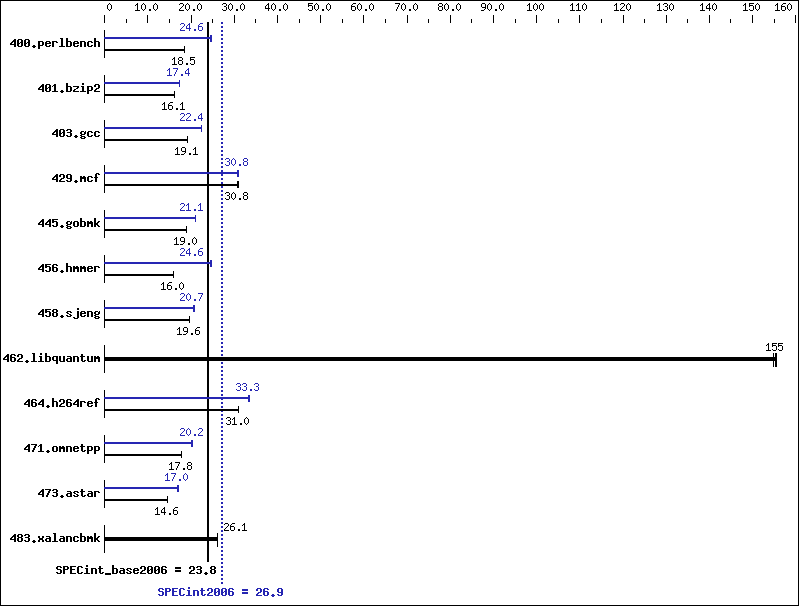

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 530 | 18.4 | 529 | 18.5 | 529 | 18.5 | 397 | 24.6 | 397 | 24.6 | 397 | 24.6 |
| 401.bzip2 | 600 | 16.1 | 602 | 16.0 | 601 | 16.1 | 556 | 17.4 | 557 | 17.3 | 556 | 17.4 |
| 403.gcc | 420 | 19.1 | 423 | 19.0 | 422 | 19.1 | 360 | 22.4 | 360 | 22.4 | 361 | 22.3 |
| 429.mcf | 297 | 30.7 | 296 | 30.8 | 295 | 30.9 | 296 | 30.8 | 296 | 30.8 | 295 | 30.9 |
| 445.gobmk | 553 | 19.0 | 553 | 19.0 | 553 | 19.0 | 498 | 21.1 | 498 | 21.1 | 498 | 21.0 |
| 456.hmmer | 582 | 16.0 | 582 | 16.0 | 582 | 16.0 | 379 | 24.6 | 380 | 24.6 | 379 | 24.6 |
| 458.sjeng | 617 | 19.6 | 619 | 19.5 | 618 | 19.6 | 586 | 20.6 | 586 | 20.7 | 585 | 20.7 |
| 462.libquantum | 134 | 155 | 133 | 155 | 133 | 155 | 134 | 155 | 133 | 155 | 133 | 155 |
| 464.h264ref | 714 | 31.0 | 715 | 31.0 | 715 | 30.9 | 664 | 33.3 | 662 | 33.4 | 664 | 33.3 |
| 471.omnetpp | 351 | 17.8 | 352 | 17.7 | 352 | 17.8 | 309 | 20.2 | 309 | 20.2 | 311 | 20.1 |
| 473.astar | 480 | 14.6 | 480 | 14.6 | 480 | 14.6 | 414 | 17.0 | 415 | 16.9 | 413 | 17.0 |
| 483.xalancbmk | 264 | 26.1 | 265 | 26.1 | 265 | 26.0 | 264 | 26.1 | 265 | 26.1 | 265 | 26.0 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to "physical,0"
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
