| CPU2006 license: | 9013 | Test date: | Jul-2009 |
|---|---|---|---|
| Test sponsor: | NTT System S. A. | Hardware Availability: | Jul-2009 |
| Tested by: | NTT System S. A. | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Celeron E3200 |
| CPU Characteristics: | |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (2x1GB) DDR2 800Mhz |
| Disk Subsystem: | 250 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux SLES10 SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

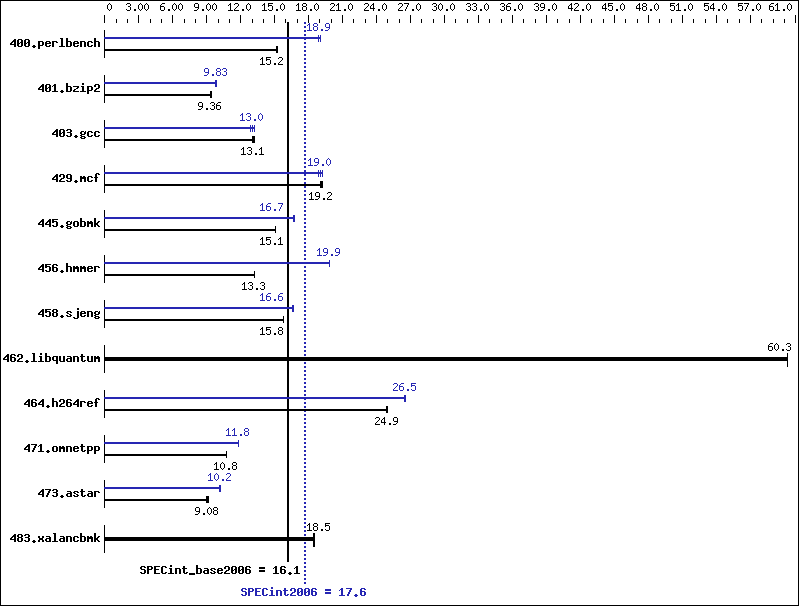

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 644 | 15.2 | 642 | 15.2 | 645 | 15.1 | 517 | 18.9 | 517 | 18.9 | 513 | 19.0 |
| 401.bzip2 | 1032 | 9.35 | 1032 | 9.36 | 1025 | 9.41 | 977 | 9.88 | 986 | 9.78 | 982 | 9.83 |
| 403.gcc | 615 | 13.1 | 615 | 13.1 | 610 | 13.2 | 609 | 13.2 | 624 | 12.9 | 617 | 13.0 |
| 429.mcf | 475 | 19.2 | 476 | 19.2 | 480 | 19.0 | 475 | 19.2 | 484 | 18.8 | 479 | 19.0 |
| 445.gobmk | 695 | 15.1 | 696 | 15.1 | 695 | 15.1 | 628 | 16.7 | 629 | 16.7 | 628 | 16.7 |
| 456.hmmer | 704 | 13.3 | 703 | 13.3 | 704 | 13.2 | 470 | 19.9 | 469 | 19.9 | 471 | 19.8 |
| 458.sjeng | 768 | 15.8 | 768 | 15.8 | 768 | 15.7 | 728 | 16.6 | 730 | 16.6 | 731 | 16.6 |
| 462.libquantum | 344 | 60.3 | 344 | 60.3 | 344 | 60.3 | 344 | 60.3 | 344 | 60.3 | 344 | 60.3 |
| 464.h264ref | 891 | 24.8 | 887 | 24.9 | 886 | 25.0 | 835 | 26.5 | 836 | 26.5 | 834 | 26.5 |
| 471.omnetpp | 580 | 10.8 | 580 | 10.8 | 582 | 10.7 | 528 | 11.8 | 528 | 11.8 | 529 | 11.8 |
| 473.astar | 773 | 9.08 | 784 | 8.95 | 767 | 9.16 | 685 | 10.3 | 690 | 10.2 | 688 | 10.2 |
| 483.xalancbmk | 373 | 18.5 | 373 | 18.5 | 374 | 18.4 | 373 | 18.5 | 373 | 18.5 | 374 | 18.4 |
General Notes
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0"
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSSE3 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
