SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL360 G6
(2.53 GHz, Intel Xeon E5540)

CPU2006 license: 3 Test date: Jul-2009
Test sponsor: Hewlett-Packard Company Hardware Availability: Mar-2009
Tested by: Hewlett-Packard Company Software Availability: Feb-2009

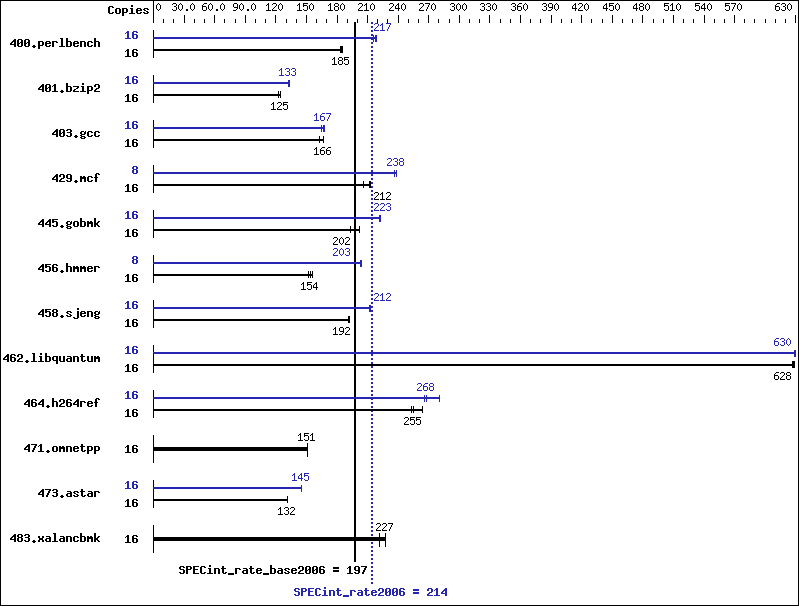

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5540
CPU Characteristics: Intel Turbo Boost Technology up to 2.80 GHz
CPU MHz: 2533
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6x4 GB PC3-10600R CL9)
Disk Subsystem: 2x146 GB 10 K SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.3
Kernel 2.6.18-128.el5
Compiler: Intel C++ Compiler 11.0 for Linux
Build 20090131 Package ID: l_cproc_p_11.0.080
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1
Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 16 847 185 850 184 842 186 16 719 217 714 219 723 216
401.bzip2 16 1257 123 1235 125 1237 125 16 1159 133 1163 133 1167 132
403.gcc 16 774 166 772 167 793 162 16 770 167 780 165 772 167
429.mcf 16 709 206 686 213 688 212 8 308 237 306 238 307 238
445.gobmk 16 869 193 829 202 829 202 16 754 223 754 223 756 222
456.hmmer 16 983 152 972 154 959 156 8 367 203 367 203 367 204
458.sjeng 16 1008 192 1010 192 1008 192 16 913 212 912 212 912 212
462.libquantum 16 528 628 529 626 527 629 16 526 630 526 630 528 628
464.h264ref 16 1398 253 1341 264 1388 255 16 1323 268 1262 281 1330 266
471.omnetpp 16 660 151 661 151 661 151 16 660 151 661 151 661 151
473.astar 16 854 132 853 132 852 132 16 774 145 774 145 772 145
483.xalancbmk 16 498 222 486 227 485 228 16 498 222 486 227 485 228

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

BIOS configuration:
 Power Regulator set to Static High Performance Mode
 Power Profile set to Maximum Performance
 Thermal Configuration set to Increased Cooling in BIOS

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3   -opt-prefetch

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/Compiler/11.0/080/bin/intel64/icc
456.hmmer:  /opt/intel/Compiler/11.0/080/bin/intel64/icc
458.sjeng:  /opt/intel/Compiler/11.0/080/bin/intel64/icc

C++ benchmarks (except as noted below):

 icpc
473.astar:  /opt/intel/Compiler/11.0/080/bin/intel64/icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-prefetch
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-prefetch   -ansi-alias   -auto-ilp32
403.gcc:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3
429.mcf:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-prefetch
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -auto-ilp32
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3   -opt-prefetch
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=routine   -auto-ilp32   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap64
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090710.10.html,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-flags.20090710.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090710.10.xml,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-flags.20090710.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 03:16:52 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 5 August 2009.
