SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade X6275 (Intel Xeon X5570 2.93GHz)

SPECint®2006 = 37.4

CPU2006 license: 6 Test date: Jun-2009
Test sponsor: Sun Microsystems Hardware Availability: Apr-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

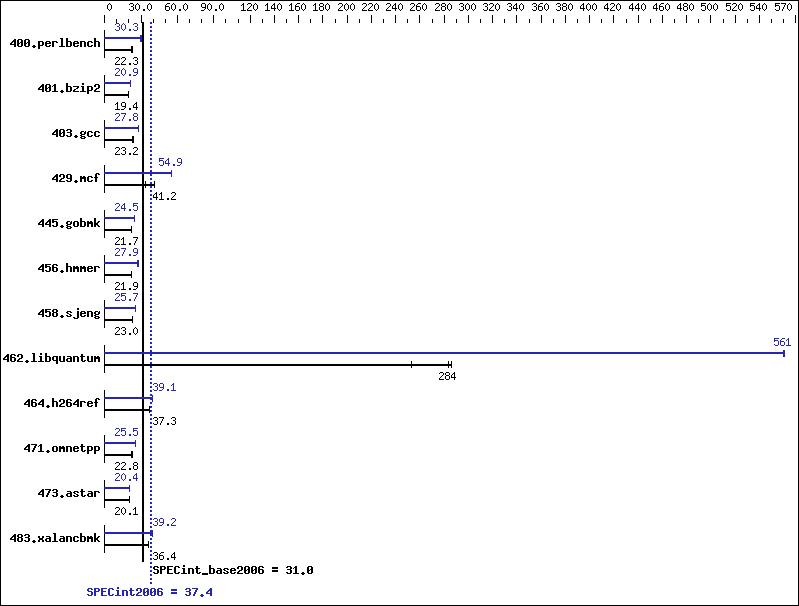

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5570
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6 x 4 GB DDR3-1333)
Disk Subsystem: 1 x 24 GB, SAS, Sun FlashDisk
Other Hardware: None
Software
Operating System: OpenSolaris 2009.06
Compiler: Sun Studio 12 Update 1
Auto Parallel: Yes
File System: zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64
Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 439   22.3 433   22.6 438   22.3 319   30.6 322   30.3 328   29.8
401.bzip2 496   19.4 497   19.4 496   19.4 461   20.9 460   21.0 462   20.9
403.gcc 347   23.2 347   23.2 341   23.6 293   27.5 290   27.8 290   27.8
429.mcf 221   41.2 272   33.6 222   41.2 166   54.9 166   55.0 166   54.9
445.gobmk 483   21.7 483   21.7 484   21.7 428   24.5 428   24.5 428   24.5
456.hmmer 427   21.9 427   21.8 427   21.9 341   27.4 334   27.9 335   27.9
458.sjeng 527   23.0 527   23.0 527   23.0 471   25.7 470   25.7 470   25.7
462.libquantum 73.1 284   81.9 253   72.3 286   37.0 561   37.0 560   36.9 561
464.h264ref 593   37.3 593   37.3 593   37.3 566   39.1 565   39.1 565   39.1
471.omnetpp 274   22.8 274   22.8 280   22.3 245   25.5 244   25.6 245   25.5
473.astar 349   20.1 350   20.1 349   20.1 346   20.3 345   20.4 345   20.4
483.xalancbmk 189   36.5 189   36.4 189   36.4 175   39.4 177   39.0 176   39.2

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Operating System Notes

 ulimit -s 131072  (shell): increases stack

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900

Platform Notes


 AMIBIOS Build Date 1/26/09 ID 07.01.36.00
   Default BIOS settings used except:
   Intel VT-d: Disabled.  VT-d, if enabled, supports
   remapping of I/O DMA transfers for virtualization.
   Hyper-Threading Technology : Disabled.  If enabled,
   allows 2 hw threads to execute per core.

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "4"
SUNW_MP_PROCBIND = "true"
SUNW_MP_THR_IDLE = "SPIN"

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xpagesize=2M   -xprefetch   -xalias_level=std   -xautopar

C++ benchmarks:

 -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xprefetch=no%auto   -xalias_level=compatible   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap64   -library=stlport4

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=8

C++ benchmarks:

 -verbose=diags,version   -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_IA32
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xvector=simd   -xalias_level=std   -xprefetch=no%auto   -lbsdmalloc   -lumem
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xaddr32=yes   -m64   -xpagesize=2M   -xalias_level=strong   -xprefetch=no%auto   -lumem
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=std   -xaddr32=yes   -m64   -xprefetch=no%auto
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xalias_level=strict   -xprefetch=no%auto   -lbsdmalloc
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xaddr32=yes   -m64   -xpagesize=2M   -xrestrict   -xalias_level=strong   -xdepend   -xautopar   -lmvec
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xaddr32=yes   -m64
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xaddr32=yes   -m64   -xpagesize=2M   -xvector=simd   -xrestrict   -xalias_level=std   -xprefetch=no%auto
462.libquantum:  -fast   -xipo=2   -m64   -xpagesize=2M   -W2,-Aparallel:nthreads=8   -xautopar   -xreduction
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xaddr32=yes   -m64   -xpagesize=2M   -xalias_level=strong   -xautopar

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap   -library=stlport4
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xaddr32=yes   -m64   -xpagesize=2M   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -xalias_level=compatible   -library=stlport4   -xautopar
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xaddr32=yes   -m64   -xpagesize=2M   -xunroll=12   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap64   -library=stlport4

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=8

C++ benchmarks:

 -verbose=diags,version   -xjobs=8

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 02:25:29 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 7 July 2009.
