| CPU2006 license: | 9017 | Test date: | May-2009 |
|---|---|---|---|
| Test sponsor: | Lenovo Group Limited | Hardware Availability: | Apr-2009 |
| Tested by: | Lenovo Group Limited | Software Availability: | Apr-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5470 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB 2Rx8 PC2 5300F) |
| Disk Subsystem: | 1 x 146 GB, SAS 15K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2 Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090209 Package ID: l_cproc_b_11.0.081 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.0 Binutils 2.18.50.0.7.20080502 |

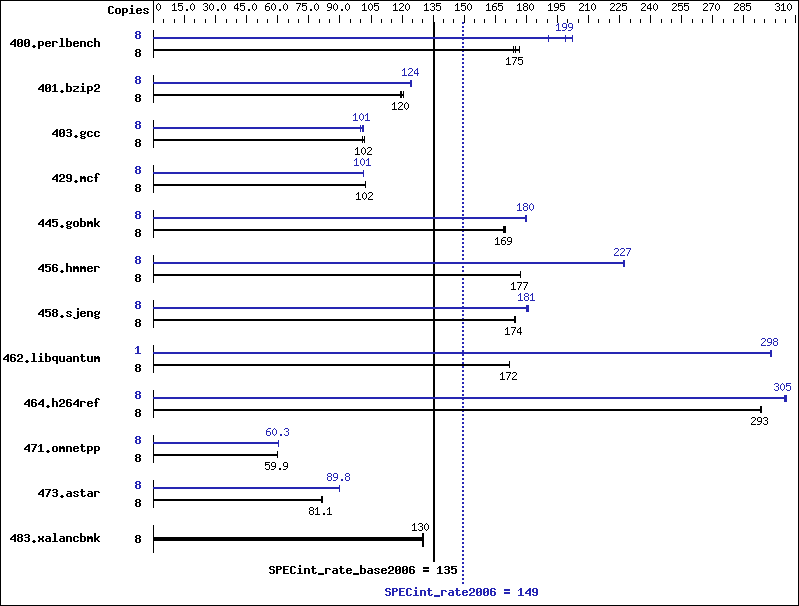

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 450 | 174 | 443 | 176 | 447 | 175 | 8 | 410 | 191 | 387 | 202 | 393 | 199 |
| 401.bzip2 | 8 | 641 | 121 | 647 | 119 | 644 | 120 | 8 | 621 | 124 | 619 | 125 | 620 | 124 |
| 403.gcc | 8 | 632 | 102 | 639 | 101 | 631 | 102 | 8 | 634 | 102 | 644 | 100 | 638 | 101 |
| 429.mcf | 8 | 712 | 102 | 712 | 103 | 713 | 102 | 8 | 721 | 101 | 720 | 101 | 720 | 101 |
| 445.gobmk | 8 | 495 | 170 | 496 | 169 | 496 | 169 | 8 | 466 | 180 | 468 | 179 | 466 | 180 |
| 456.hmmer | 8 | 421 | 177 | 421 | 177 | 421 | 177 | 8 | 329 | 227 | 329 | 227 | 328 | 227 |
| 458.sjeng | 8 | 556 | 174 | 554 | 175 | 555 | 174 | 8 | 536 | 181 | 535 | 181 | 538 | 180 |
| 462.libquantum | 8 | 964 | 172 | 963 | 172 | 964 | 172 | 1 | 69.5 | 298 | 69.6 | 298 | 69.4 | 298 |
| 464.h264ref | 8 | 604 | 293 | 604 | 293 | 603 | 293 | 8 | 580 | 305 | 580 | 305 | 581 | 305 |
| 471.omnetpp | 8 | 835 | 59.9 | 835 | 59.9 | 834 | 59.9 | 8 | 830 | 60.3 | 830 | 60.3 | 830 | 60.2 |
| 473.astar | 8 | 690 | 81.4 | 693 | 81.1 | 693 | 81.1 | 8 | 627 | 89.6 | 625 | 89.9 | 625 | 89.8 |
| 483.xalancbmk | 8 | 424 | 130 | 424 | 130 | 426 | 130 | 8 | 424 | 130 | 424 | 130 | 426 | 130 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
General Notes
taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/cpu2006/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/cpu2006/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
