| CPU2006 license: | 3 | Test date: | Jun-2009 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Mar-2009 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5504 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6x4 GB DDR3-10600R CL9, running at 800 MHz) |
| Disk Subsystem: | 1x146 GB 10 K RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.3 Kernel 2.6.18-128.el5 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

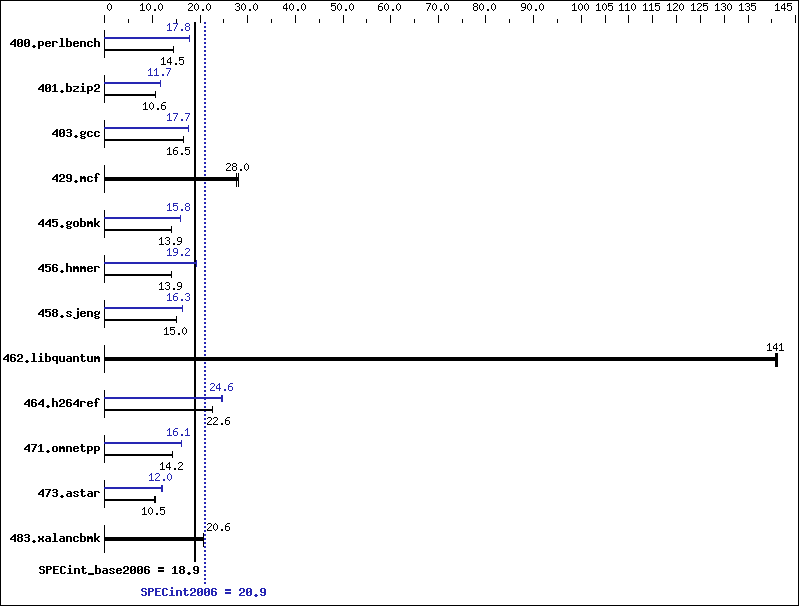

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 674 | 14.5 | 675 | 14.5 | 674 | 14.5 | 549 | 17.8 | 549 | 17.8 | 549 | 17.8 |
| 401.bzip2 | 912 | 10.6 | 907 | 10.6 | 912 | 10.6 | 828 | 11.7 | 828 | 11.7 | 825 | 11.7 |
| 403.gcc | 487 | 16.5 | 488 | 16.5 | 486 | 16.6 | 456 | 17.7 | 456 | 17.7 | 456 | 17.6 |
| 429.mcf | 330 | 27.6 | 325 | 28.1 | 325 | 28.0 | 330 | 27.6 | 325 | 28.1 | 325 | 28.0 |
| 445.gobmk | 753 | 13.9 | 753 | 13.9 | 752 | 13.9 | 663 | 15.8 | 664 | 15.8 | 663 | 15.8 |
| 456.hmmer | 670 | 13.9 | 670 | 13.9 | 670 | 13.9 | 486 | 19.2 | 486 | 19.2 | 486 | 19.2 |
| 458.sjeng | 808 | 15.0 | 807 | 15.0 | 805 | 15.0 | 742 | 16.3 | 742 | 16.3 | 742 | 16.3 |
| 462.libquantum | 147 | 141 | 147 | 141 | 147 | 141 | 147 | 141 | 147 | 141 | 147 | 141 |
| 464.h264ref | 980 | 22.6 | 982 | 22.5 | 980 | 22.6 | 900 | 24.6 | 899 | 24.6 | 899 | 24.6 |
| 471.omnetpp | 439 | 14.3 | 439 | 14.2 | 439 | 14.2 | 388 | 16.1 | 388 | 16.1 | 388 | 16.1 |
| 473.astar | 666 | 10.5 | 670 | 10.5 | 671 | 10.5 | 585 | 12.0 | 582 | 12.1 | 585 | 12.0 |
| 483.xalancbmk | 335 | 20.6 | 334 | 20.6 | 334 | 20.7 | 335 | 20.6 | 334 | 20.6 | 334 | 20.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Platform Notes
BIOS configuration: HP Power Regulator set to Static High Performance Mode HP Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
