SPEC® CFP2006 Result

GIGA-BYTE Technology Co. Ltd. (Test Sponsor: Intel Corporation)

Gigabyte MA78GM-S2H Motherboard (AMD Phenom II X4
805)

SPECfp®2006 = 15.8

SPECfp_base2006 = 15.6

CPU2006 license:	13	Test date:	May-2009
Test sponsor:	Intel Corporation	Hardware Availability:	Feb-2009
Tested by:	Intel Corporation	Software Availability:	Nov-2008

Hardware
CPU Name:	AMD Phenom II X4 805
CPU Characteristics:
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	4 MB I+D on chip per chip
Other Cache:	None
Memory:	4 GB (4x1GB DDR2-800 CL5)
Disk Subsystem:	Seagate 320 GB SATA, 7200RPM
Other Hardware:	None

Software
Operating System:	Windows Vista Ultimate w/ SP1 (64-bit)
Compiler:	Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Intel Visual Fortran Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cprof_p_11.0.054 Microsoft Visual Studio 2008 (for libraries)
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	SmartHeap Library Version 8.1 from http://www.microquill.com/

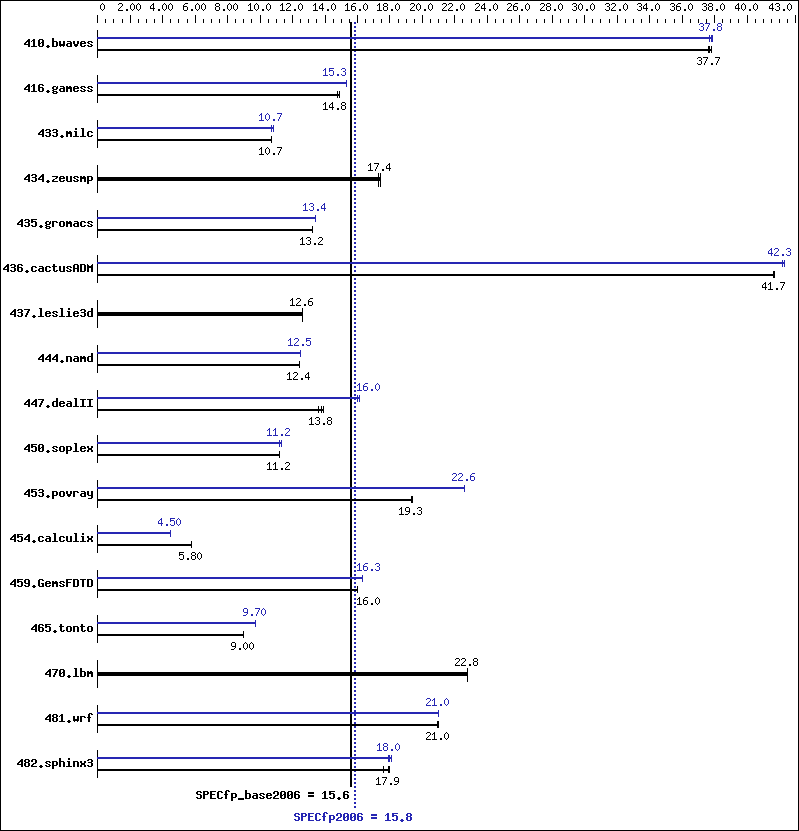

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	362	37.6	360	37.8	361	37.7	361	37.7	359	37.9	359	37.8
416.gamess	1319	14.8	1317	14.9	1319	14.8	1280	15.3	1281	15.3	1280	15.3
433.milc	854	10.7	855	10.7	854	10.7	848	10.8	855	10.7	855	10.7
434.zeusmp	524	17.4	527	17.3	524	17.4	524	17.4	527	17.3	524	17.4
435.gromacs	540	13.2	541	13.2	540	13.2	533	13.4	532	13.4	532	13.4
436.cactusADM	286	41.7	287	41.6	287	41.7	283	42.3	282	42.3	283	42.2
437.leslie3d	747	12.6	747	12.6	745	12.6	747	12.6	747	12.6	745	12.6
444.namd	646	12.4	646	12.4	646	12.4	641	12.5	641	12.5	641	12.5
447.dealII	841	13.6	824	13.9	828	13.8	714	16.0	709	16.1	715	16.0
450.soplex	747	11.2	747	11.2	746	11.2	742	11.2	743	11.2	741	11.3
453.povray	275	19.3	275	19.4	275	19.3	235	22.6	235	22.6	235	22.6
454.calculix	1424	5.80	1424	5.80	1424	5.80	1823	4.50	1823	4.50	1822	4.50
459.GemsFDTD	664	16.0	664	16.0	664	16.0	652	16.3	652	16.3	652	16.3
465.tonto	1090	9.00	1092	9.00	1090	9.00	1011	9.70	1011	9.70	1011	9.70
470.lbm	602	22.8	602	22.8	602	22.8	602	22.8	602	22.8	602	22.8
481.wrf	534	20.9	532	21.0	533	21.0	533	21.0	533	21.0	532	21.0
482.sphinx3	1081	18.0	1091	17.9	1107	17.6	1086	17.9	1078	18.1	1086	18.0

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Binaries were built on Windows Vista Ultimate (32-bit)
 OMP_NUM_THREADS set to number of logical processors as seen by the OS
 KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

icl -Qvc9 -Qc99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Compiler Invocation

C benchmarks:

icl -Qvc9 -Qc99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000
470.lbm:	basepeak = yes
482.sphinx3:	/arch:SSE2 -Qipo -O3 -Qprec-div- -Qunroll2 /F1000000000

C++ benchmarks:

444.namd:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
447.dealII:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qansi-alias -Qscalar-rep- /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
450.soplex:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
453.povray:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	/arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel /F1000000000
416.gamess:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qopt-prefetch -Qparallel /F1000000000
465.tonto:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F1000000000
436.cactusADM:	/arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qparallel /F1000000000
454.calculix:	/arch:SSE2 -Qipo -O3 -Qprec-div- /F1000000000
481.wrf:	/arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.xml.
