| CPU2006 license: | 3 | Test date: | May-2009 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Mar-2009 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5550 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.07 GHz |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6x8 GB PC3-10600R CL9) |
| Disk Subsystem: | 1x146 GB 10K RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.3 Kernel 2.6.18-128.el5 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

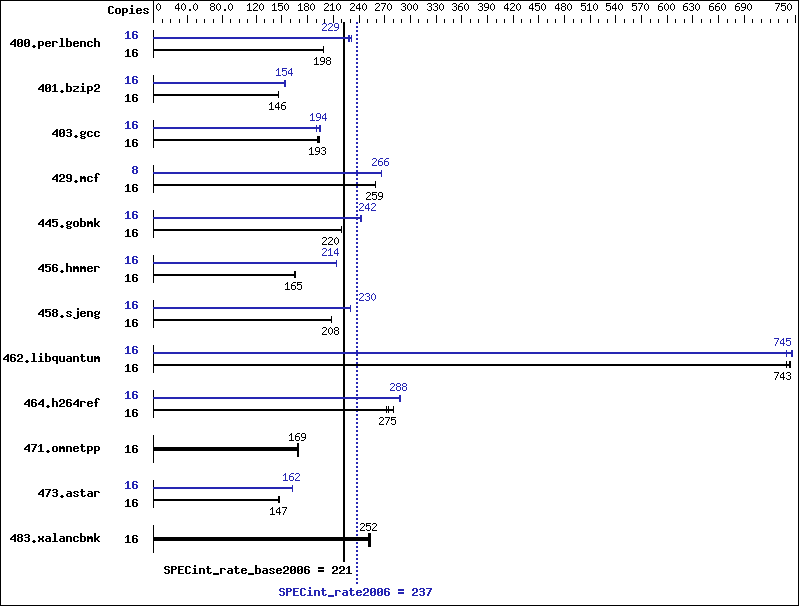

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 789 | 198 | 787 | 199 | 788 | 198 | 16 | 688 | 227 | 675 | 232 | 683 | 229 |
| 401.bzip2 | 16 | 1061 | 145 | 1061 | 146 | 1060 | 146 | 16 | 1002 | 154 | 1008 | 153 | 1003 | 154 |
| 403.gcc | 16 | 663 | 194 | 674 | 191 | 668 | 193 | 16 | 675 | 191 | 659 | 195 | 664 | 194 |
| 429.mcf | 16 | 563 | 259 | 564 | 259 | 564 | 259 | 8 | 274 | 266 | 274 | 266 | 274 | 266 |
| 445.gobmk | 16 | 763 | 220 | 763 | 220 | 763 | 220 | 16 | 695 | 242 | 693 | 242 | 694 | 242 |
| 456.hmmer | 16 | 902 | 165 | 906 | 165 | 907 | 165 | 16 | 697 | 214 | 698 | 214 | 698 | 214 |
| 458.sjeng | 16 | 931 | 208 | 930 | 208 | 932 | 208 | 16 | 841 | 230 | 843 | 230 | 843 | 230 |
| 462.libquantum | 16 | 448 | 740 | 446 | 743 | 446 | 744 | 16 | 445 | 745 | 448 | 740 | 445 | 746 |
| 464.h264ref | 16 | 1265 | 280 | 1289 | 275 | 1300 | 272 | 16 | 1225 | 289 | 1231 | 288 | 1232 | 287 |
| 471.omnetpp | 16 | 592 | 169 | 593 | 169 | 593 | 169 | 16 | 592 | 169 | 593 | 169 | 593 | 169 |
| 473.astar | 16 | 765 | 147 | 766 | 147 | 769 | 146 | 16 | 692 | 162 | 692 | 162 | 692 | 162 |
| 483.xalancbmk | 16 | 438 | 252 | 439 | 252 | 437 | 253 | 16 | 438 | 252 | 439 | 252 | 437 | 253 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Platform Notes
BIOS configuration: Power Regulator set to Static High Performance Mode Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
