| CPU2006 license: | 3 | Test date: | May-2009 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Mar-2009 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5520 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.53 GHz |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6x8 GB PC3-10600R CL9) |
| Disk Subsystem: | 1x146 GB 10K RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.3 Kernel 2.6.18-128.el5 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

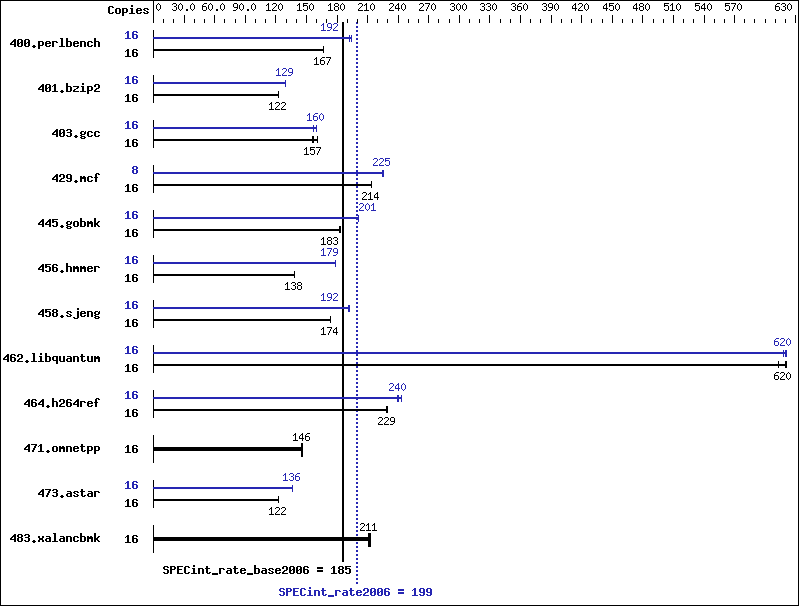

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 936 | 167 | 938 | 167 | 940 | 166 | 16 | 814 | 192 | 803 | 195 | 814 | 192 |
| 401.bzip2 | 16 | 1261 | 122 | 1260 | 123 | 1261 | 122 | 16 | 1195 | 129 | 1194 | 129 | 1192 | 130 |
| 403.gcc | 16 | 826 | 156 | 800 | 161 | 820 | 157 | 16 | 804 | 160 | 803 | 160 | 820 | 157 |
| 429.mcf | 16 | 683 | 214 | 682 | 214 | 682 | 214 | 8 | 324 | 225 | 324 | 225 | 324 | 225 |
| 445.gobmk | 16 | 917 | 183 | 918 | 183 | 916 | 183 | 16 | 833 | 201 | 835 | 201 | 834 | 201 |
| 456.hmmer | 16 | 1080 | 138 | 1077 | 139 | 1081 | 138 | 16 | 835 | 179 | 835 | 179 | 834 | 179 |
| 458.sjeng | 16 | 1116 | 174 | 1116 | 174 | 1114 | 174 | 16 | 1009 | 192 | 1010 | 192 | 1010 | 192 |
| 462.libquantum | 16 | 535 | 620 | 541 | 613 | 534 | 621 | 16 | 535 | 620 | 534 | 620 | 536 | 618 |
| 464.h264ref | 16 | 1540 | 230 | 1546 | 229 | 1543 | 229 | 16 | 1456 | 243 | 1474 | 240 | 1480 | 239 |
| 471.omnetpp | 16 | 685 | 146 | 685 | 146 | 687 | 146 | 16 | 685 | 146 | 685 | 146 | 687 | 146 |
| 473.astar | 16 | 915 | 123 | 917 | 122 | 918 | 122 | 16 | 824 | 136 | 826 | 136 | 826 | 136 |
| 483.xalancbmk | 16 | 522 | 211 | 519 | 213 | 524 | 211 | 16 | 522 | 211 | 519 | 213 | 524 | 211 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Platform Notes
BIOS configuration: Power Regulator set to Static High Performance Mode Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
