| CPU2006 license: | 55 | Test date: | Mar-2009 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Apr-2009 |
| Tested by: | Dell Inc. | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon W5580 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6x4 GB DDR3-1333R, ECC, CL9) |
| Disk Subsystem: | 1 x 146 GB SAS 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Business SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA-32, Version 11.0 Build 20090131 Package ID: w_cproc_p_11.0.072 Microsoft Visual Studio 2008 SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

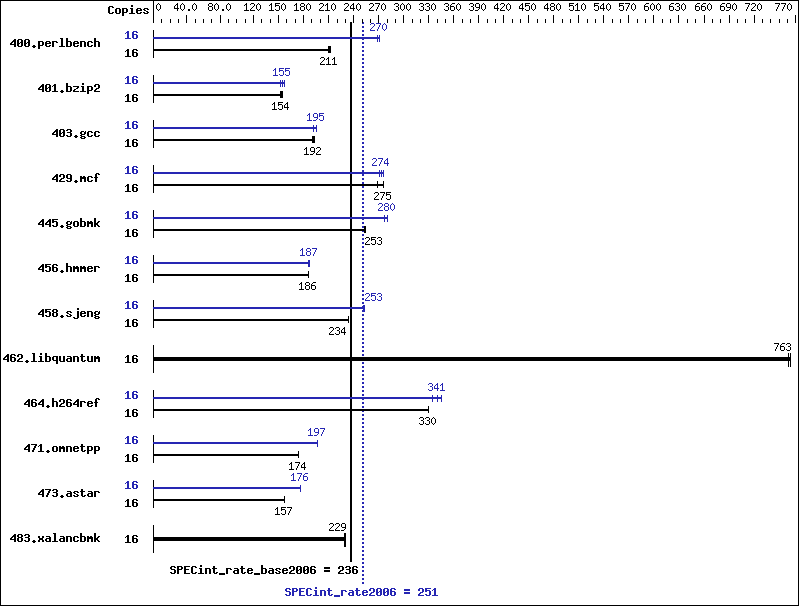

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 745 | 210 | 732 | 213 | 743 | 211 | 16 | 580 | 269 | 579 | 270 | 577 | 270 |
| 401.bzip2 | 16 | 1006 | 154 | 994 | 155 | 1012 | 152 | 16 | 997 | 155 | 986 | 157 | 1018 | 152 |
| 403.gcc | 16 | 669 | 192 | 667 | 194 | 679 | 190 | 16 | 662 | 195 | 659 | 195 | 672 | 192 |
| 429.mcf | 16 | 543 | 269 | 531 | 275 | 532 | 275 | 16 | 540 | 270 | 533 | 274 | 532 | 275 |
| 445.gobmk | 16 | 661 | 254 | 665 | 253 | 663 | 253 | 16 | 598 | 280 | 600 | 280 | 606 | 277 |
| 456.hmmer | 16 | 804 | 186 | 805 | 186 | 804 | 186 | 16 | 799 | 187 | 803 | 186 | 799 | 187 |
| 458.sjeng | 16 | 828 | 234 | 828 | 234 | 828 | 234 | 16 | 768 | 251 | 765 | 253 | 768 | 253 |
| 462.libquantum | 16 | 435 | 763 | 435 | 762 | 435 | 763 | 16 | 435 | 763 | 435 | 762 | 435 | 763 |
| 464.h264ref | 16 | 1074 | 330 | 1073 | 330 | 1075 | 330 | 16 | 1024 | 346 | 1039 | 341 | 1061 | 334 |
| 471.omnetpp | 16 | 573 | 174 | 572 | 174 | 572 | 174 | 16 | 509 | 197 | 510 | 197 | 509 | 197 |
| 473.astar | 16 | 713 | 157 | 713 | 157 | 713 | 157 | 16 | 636 | 176 | 636 | 176 | 636 | 176 |
| 483.xalancbmk | 16 | 482 | 229 | 481 | 229 | 481 | 230 | 16 | 482 | 229 | 481 | 229 | 481 | 230 |
Submit Notes
The config file option 'submit' was used.
Platform Notes
BIOS Settings Memory Node Interleaving set to NUMA. Hyper-Threading Technology set to ON.
General Notes
Binaries were built on Windows Vista Business (64-bit)
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 |
| 403.gcc: | -Qprof_gen(pass 1) -QxSSE4.2 -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 429.mcf: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
