| CPU2006 license: | 13 | Test date: | Mar-2009 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Mar-2009 |
| Tested by: | Intel Corporation | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5504 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (12 x 2GB DDR3-1066, CL7) |
| Disk Subsystem: | 1 x 150 GB SATA, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux SLES10 SP2, Kernel 2.6.16.60-0.34-smp for x86_64 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

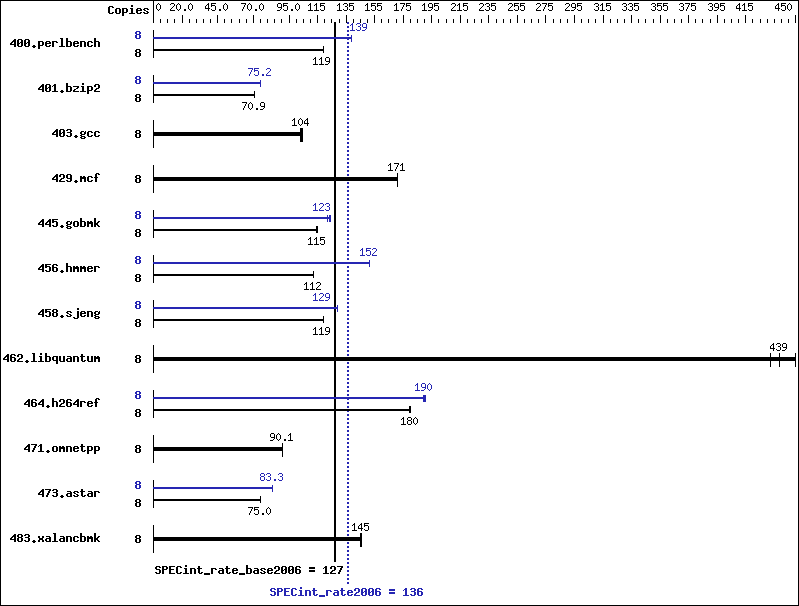

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 655 | 119 | 656 | 119 | 655 | 119 | 8 | 565 | 138 | 564 | 139 | 563 | 139 |
| 401.bzip2 | 8 | 1087 | 71.0 | 1089 | 70.9 | 1090 | 70.8 | 8 | 1026 | 75.2 | 1027 | 75.2 | 1028 | 75.1 |
| 403.gcc | 8 | 621 | 104 | 616 | 105 | 624 | 103 | 8 | 621 | 104 | 616 | 105 | 624 | 103 |
| 429.mcf | 8 | 426 | 171 | 427 | 171 | 427 | 171 | 8 | 426 | 171 | 427 | 171 | 427 | 171 |
| 445.gobmk | 8 | 732 | 115 | 733 | 115 | 731 | 115 | 8 | 686 | 122 | 681 | 123 | 678 | 124 |
| 456.hmmer | 8 | 666 | 112 | 667 | 112 | 667 | 112 | 8 | 492 | 152 | 492 | 152 | 493 | 151 |
| 458.sjeng | 8 | 813 | 119 | 812 | 119 | 812 | 119 | 8 | 751 | 129 | 752 | 129 | 752 | 129 |
| 462.libquantum | 8 | 384 | 432 | 368 | 450 | 378 | 439 | 8 | 384 | 432 | 368 | 450 | 378 | 439 |
| 464.h264ref | 8 | 984 | 180 | 985 | 180 | 987 | 179 | 8 | 933 | 190 | 931 | 190 | 934 | 190 |
| 471.omnetpp | 8 | 555 | 90.2 | 555 | 90.1 | 555 | 90.1 | 8 | 555 | 90.2 | 555 | 90.1 | 555 | 90.1 |
| 473.astar | 8 | 748 | 75.1 | 750 | 74.9 | 749 | 75.0 | 8 | 674 | 83.3 | 674 | 83.3 | 673 | 83.4 |
| 483.xalancbmk | 8 | 380 | 145 | 380 | 145 | 379 | 146 | 8 | 380 | 145 | 380 | 145 | 379 | 146 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
