| CPU2006 license: | 19 | Test date: | Feb-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Apr-2009 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5520 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.53 GHz |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12x4 GB PC3-8500R, 2 rank, CL7-7-7, ECC) |
| Disk Subsystem: | 1 x SAS, 73 GB, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

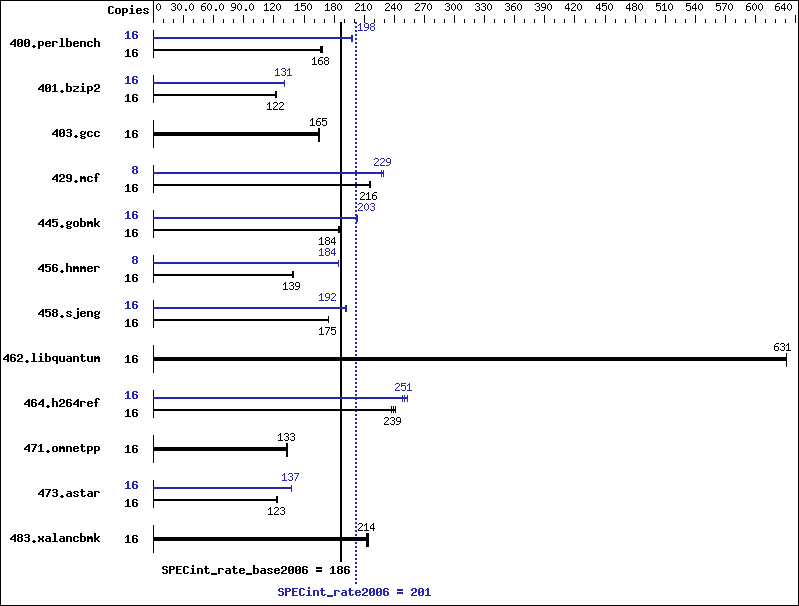

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 928 | 168 | 931 | 168 | 941 | 166 | 16 | 789 | 198 | 787 | 199 | 791 | 198 |
| 401.bzip2 | 16 | 1258 | 123 | 1266 | 122 | 1265 | 122 | 16 | 1182 | 131 | 1183 | 131 | 1185 | 130 |
| 403.gcc | 16 | 780 | 165 | 784 | 164 | 781 | 165 | 16 | 780 | 165 | 784 | 164 | 781 | 165 |
| 429.mcf | 16 | 674 | 217 | 678 | 215 | 677 | 216 | 8 | 318 | 229 | 321 | 227 | 318 | 229 |
| 445.gobmk | 16 | 905 | 185 | 911 | 184 | 911 | 184 | 16 | 829 | 203 | 824 | 204 | 828 | 203 |
| 456.hmmer | 16 | 1077 | 139 | 1077 | 139 | 1071 | 139 | 8 | 405 | 184 | 406 | 184 | 406 | 184 |
| 458.sjeng | 16 | 1107 | 175 | 1109 | 175 | 1110 | 174 | 16 | 1009 | 192 | 1007 | 192 | 1007 | 192 |
| 462.libquantum | 16 | 526 | 630 | 526 | 631 | 525 | 631 | 16 | 526 | 630 | 526 | 631 | 525 | 631 |
| 464.h264ref | 16 | 1483 | 239 | 1467 | 241 | 1494 | 237 | 16 | 1429 | 248 | 1397 | 253 | 1413 | 251 |
| 471.omnetpp | 16 | 750 | 133 | 753 | 133 | 750 | 133 | 16 | 750 | 133 | 753 | 133 | 750 | 133 |
| 473.astar | 16 | 912 | 123 | 912 | 123 | 915 | 123 | 16 | 818 | 137 | 818 | 137 | 818 | 137 |
| 483.xalancbmk | 16 | 516 | 214 | 520 | 212 | 517 | 214 | 16 | 516 | 214 | 520 | 212 | 517 | 214 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
