| CPU2006 license: | 22 | Test date: | Jan-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Apr-2009 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L3360 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-6400E, 2 rank, CL6-6-6, ECC) |
| Disk Subsystem: | 1x SATA, 160 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.066 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap Library, Version 8.1 Binutils 2.18.50.0.7.20080502 |

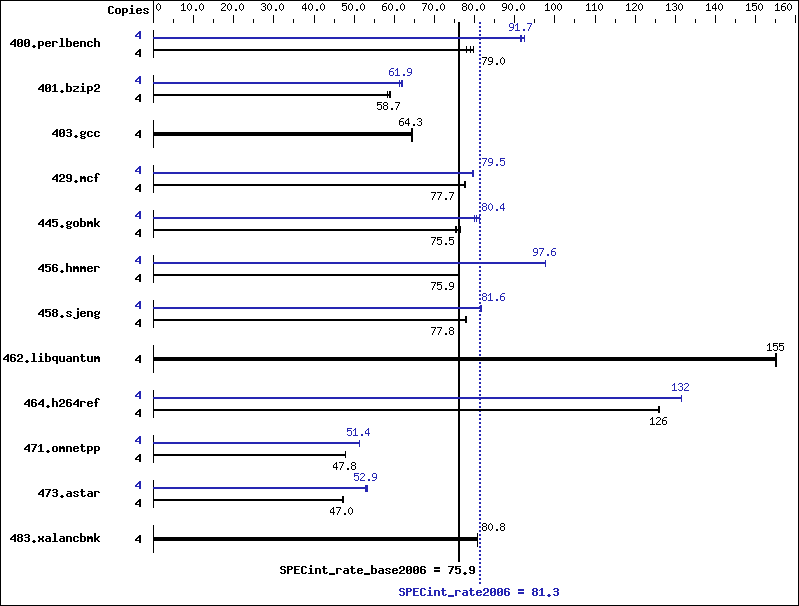

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 501 | 78.0 | 495 | 79.0 | 490 | 79.8 | 4 | 428 | 91.4 | 426 | 91.7 | 423 | 92.4 |
| 401.bzip2 | 4 | 652 | 59.2 | 662 | 58.3 | 657 | 58.7 | 4 | 623 | 61.9 | 624 | 61.9 | 630 | 61.3 |
| 403.gcc | 4 | 501 | 64.3 | 499 | 64.5 | 502 | 64.2 | 4 | 501 | 64.3 | 499 | 64.5 | 502 | 64.2 |
| 429.mcf | 4 | 470 | 77.7 | 470 | 77.5 | 470 | 77.7 | 4 | 458 | 79.7 | 459 | 79.5 | 459 | 79.5 |
| 445.gobmk | 4 | 558 | 75.2 | 556 | 75.5 | 549 | 76.4 | 4 | 517 | 81.1 | 525 | 79.9 | 522 | 80.4 |
| 456.hmmer | 4 | 492 | 75.9 | 492 | 75.9 | 492 | 75.9 | 4 | 382 | 97.6 | 382 | 97.6 | 382 | 97.6 |
| 458.sjeng | 4 | 620 | 78.0 | 622 | 77.8 | 623 | 77.7 | 4 | 593 | 81.6 | 595 | 81.4 | 593 | 81.7 |
| 462.libquantum | 4 | 534 | 155 | 535 | 155 | 534 | 155 | 4 | 534 | 155 | 535 | 155 | 534 | 155 |
| 464.h264ref | 4 | 703 | 126 | 703 | 126 | 703 | 126 | 4 | 673 | 132 | 672 | 132 | 674 | 131 |
| 471.omnetpp | 4 | 524 | 47.7 | 523 | 47.8 | 523 | 47.8 | 4 | 486 | 51.4 | 486 | 51.4 | 486 | 51.4 |
| 473.astar | 4 | 594 | 47.3 | 598 | 47.0 | 597 | 47.0 | 4 | 527 | 53.3 | 531 | 52.9 | 530 | 52.9 |
| 483.xalancbmk | 4 | 341 | 80.8 | 342 | 80.7 | 342 | 80.8 | 4 | 341 | 80.8 | 342 | 80.7 | 342 | 80.8 |
Submit Notes
The config file option 'submit' was used. taskset has been used to bind processes to cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable
General Notes
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
