| CPU2006 license: | 55 | Test date: | Dec-2008 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Oct-2008 |
| Tested by: | Dell Inc. | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5450 |
| CPU Characteristics: | 1333 MHz Bus Speed |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (4x4 GB DDR2-667 FB-DIMM, CL5) |
| Disk Subsystem: | 1 x 320 GB SATA 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Business SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA-32, Version 11.0 Build 20080930 Package ID: w_cproc_p_11.0.061 Microsoft Visual Studio 2008 SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

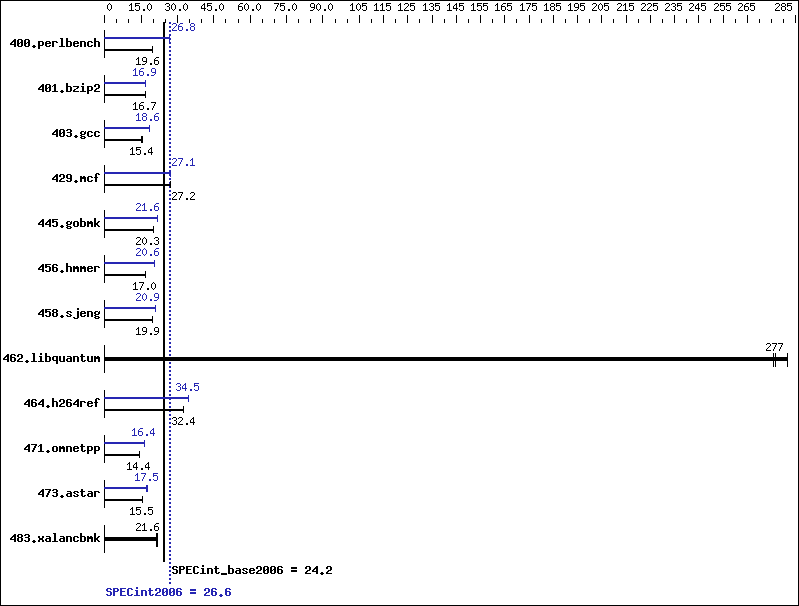

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 500 | 19.6 | 500 | 19.6 | 498 | 19.6 | 365 | 26.8 | 365 | 26.8 | 366 | 26.7 |
| 401.bzip2 | 576 | 16.7 | 576 | 16.7 | 576 | 16.7 | 573 | 16.9 | 572 | 16.9 | 573 | 16.8 |
| 403.gcc | 521 | 15.4 | 521 | 15.5 | 536 | 15.0 | 433 | 18.6 | 434 | 18.6 | 433 | 18.6 |
| 429.mcf | 336 | 27.2 | 336 | 27.2 | 335 | 27.2 | 337 | 27.1 | 336 | 27.1 | 336 | 27.1 |
| 445.gobmk | 518 | 20.3 | 517 | 20.3 | 517 | 20.3 | 485 | 21.6 | 485 | 21.6 | 485 | 21.6 |
| 456.hmmer | 550 | 17.0 | 550 | 17.0 | 550 | 17.0 | 452 | 20.6 | 452 | 20.6 | 452 | 20.7 |
| 458.sjeng | 608 | 19.9 | 609 | 19.9 | 607 | 19.9 | 580 | 20.9 | 578 | 20.9 | 578 | 20.9 |
| 462.libquantum | 74.9 | 277 | 75.1 | 276 | 73.6 | 282 | 74.9 | 277 | 75.1 | 276 | 73.6 | 282 |
| 464.h264ref | 684 | 32.4 | 684 | 32.4 | 683 | 32.4 | 642 | 34.5 | 642 | 34.5 | 642 | 34.5 |
| 471.omnetpp | 433 | 14.4 | 433 | 14.4 | 433 | 14.4 | 380 | 16.4 | 381 | 16.4 | 381 | 16.4 |
| 473.astar | 455 | 15.4 | 454 | 15.5 | 454 | 15.5 | 402 | 17.5 | 402 | 17.4 | 402 | 17.5 |
| 483.xalancbmk | 321 | 21.5 | 319 | 21.6 | 319 | 21.6 | 321 | 21.5 | 319 | 21.6 | 319 | 21.6 |
General Notes
Binaries were built on Windows Vista Ultimate (64-bit) BIOS Settings Adjacent Cache Line Prefetch set to ON
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 |
C++ benchmarks:
| -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -QxSSE4.1 -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -QxSSE4.1(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 |
| 403.gcc: | -Qprof_gen(pass 1) -QxSSE4.1 -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F512000000 |
| 429.mcf: | -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | -Qprof_gen(pass 1) -QxSSE4.1(pass 2) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | -Qprof_gen(pass 1) -QxSSE4.1(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -Qprof_gen(pass 1) -QxSSE4.1(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -QxSSE4.1(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -QxSSE4.1(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
