| CPU2006 license: | 9013 | Test date: | Dec-2008 |
|---|---|---|---|
| Test sponsor: | NTT System S. A. | Hardware Availability: | Dec-2008 |
| Tested by: | NTT System S. A. | Software Availability: | Dec-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | 2 GHz, 2x6 MB P2 shared, 1333 MHz System Bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (4x4GB) |
| Disk Subsystem: | 300 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux SLES10 SP1, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

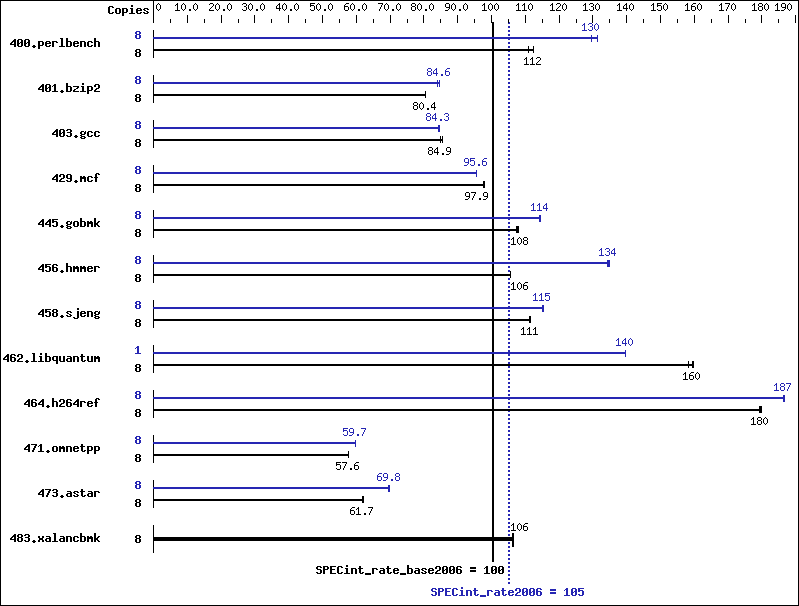

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 704 | 111 | 695 | 113 | 695 | 112 | 8 | 595 | 131 | 603 | 130 | 603 | 130 |
| 401.bzip2 | 8 | 960 | 80.4 | 959 | 80.5 | 960 | 80.4 | 8 | 920 | 83.9 | 912 | 84.6 | 913 | 84.6 |
| 403.gcc | 8 | 753 | 85.6 | 758 | 84.9 | 759 | 84.8 | 8 | 765 | 84.2 | 764 | 84.3 | 762 | 84.5 |
| 429.mcf | 8 | 746 | 97.8 | 745 | 97.9 | 745 | 97.9 | 8 | 763 | 95.6 | 764 | 95.5 | 763 | 95.7 |
| 445.gobmk | 8 | 777 | 108 | 779 | 108 | 781 | 107 | 8 | 733 | 114 | 735 | 114 | 733 | 114 |
| 456.hmmer | 8 | 707 | 106 | 706 | 106 | 706 | 106 | 8 | 555 | 134 | 554 | 135 | 555 | 134 |
| 458.sjeng | 8 | 869 | 111 | 869 | 111 | 868 | 111 | 8 | 840 | 115 | 840 | 115 | 841 | 115 |
| 462.libquantum | 8 | 1039 | 160 | 1037 | 160 | 1047 | 158 | 1 | 148 | 140 | 148 | 140 | 148 | 140 |
| 464.h264ref | 8 | 987 | 179 | 986 | 180 | 985 | 180 | 8 | 950 | 186 | 948 | 187 | 948 | 187 |
| 471.omnetpp | 8 | 868 | 57.6 | 868 | 57.6 | 868 | 57.6 | 8 | 838 | 59.7 | 838 | 59.7 | 837 | 59.7 |
| 473.astar | 8 | 910 | 61.7 | 905 | 62.1 | 910 | 61.7 | 8 | 809 | 69.4 | 805 | 69.8 | 803 | 69.9 |
| 483.xalancbmk | 8 | 519 | 106 | 518 | 107 | 518 | 106 | 8 | 519 | 106 | 518 | 107 | 518 | 106 |
Submit Notes
The config file option 'submit' was used. taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSSE3 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSSE3 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
