| CPU2006 license: | 9008 | Test date: | Dec-2008 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Sep-2008 |
| Tested by: | ACTION S.A. | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5410 |
| CPU Characteristics: | 1333 MHz System Bus |
| CPU MHz: | 2333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB, PC2-5300, CL 5-5-5, FB ECC) |
| Disk Subsystem: | 500 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) with SP2, kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

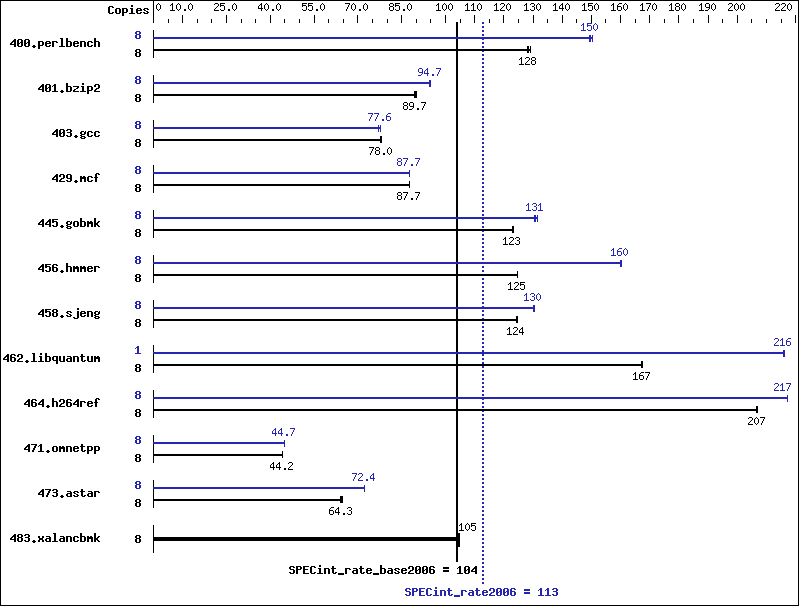

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 611 | 128 | 609 | 128 | 606 | 129 | 8 | 519 | 150 | 522 | 150 | 523 | 149 |
| 401.bzip2 | 8 | 864 | 89.4 | 861 | 89.7 | 858 | 90.0 | 8 | 815 | 94.7 | 815 | 94.8 | 816 | 94.6 |
| 403.gcc | 8 | 826 | 78.0 | 830 | 77.6 | 826 | 78.0 | 8 | 827 | 77.9 | 836 | 77.1 | 829 | 77.6 |
| 429.mcf | 8 | 832 | 87.7 | 832 | 87.7 | 832 | 87.7 | 8 | 832 | 87.7 | 832 | 87.7 | 832 | 87.7 |
| 445.gobmk | 8 | 683 | 123 | 681 | 123 | 682 | 123 | 8 | 638 | 132 | 643 | 131 | 642 | 131 |
| 456.hmmer | 8 | 598 | 125 | 598 | 125 | 598 | 125 | 8 | 466 | 160 | 466 | 160 | 465 | 160 |
| 458.sjeng | 8 | 778 | 124 | 777 | 125 | 779 | 124 | 8 | 743 | 130 | 743 | 130 | 744 | 130 |
| 462.libquantum | 8 | 990 | 167 | 989 | 168 | 991 | 167 | 1 | 96.0 | 216 | 96.1 | 216 | 95.8 | 216 |
| 464.h264ref | 8 | 856 | 207 | 857 | 207 | 856 | 207 | 8 | 815 | 217 | 815 | 217 | 815 | 217 |
| 471.omnetpp | 8 | 1132 | 44.2 | 1131 | 44.2 | 1130 | 44.2 | 8 | 1118 | 44.7 | 1117 | 44.7 | 1118 | 44.7 |
| 473.astar | 8 | 876 | 64.1 | 873 | 64.3 | 869 | 64.6 | 8 | 775 | 72.4 | 776 | 72.4 | 778 | 72.2 |
| 483.xalancbmk | 8 | 527 | 105 | 528 | 105 | 526 | 105 | 8 | 527 | 105 | 528 | 105 | 526 | 105 |
Submit Notes
The config file option 'submit' was used.
General Notes
Taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
