SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision R5400 (Intel Xeon X5270, 3.50 GHz)

CPU2006 license: 55 Test date: Dec-2008
Test sponsor: Dell Inc. Hardware Availability: Oct-2008
Tested by: Dell Inc. Software Availability: Nov-2008

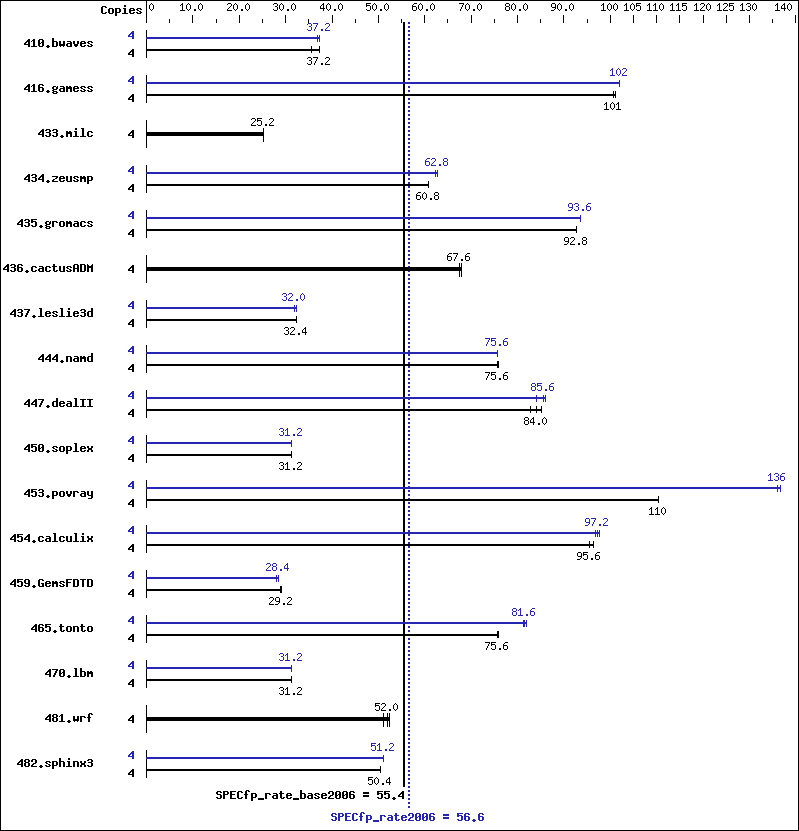

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5270
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3500
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (4x4 GB DDR2-667 FB-DIMM, CL5)
Disk Subsystem: 1 x 320 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Business SP1 (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 11.0
Build 20080930 Package ID: w_cproc_p_11.0.061
Intel Visual Fortran Compiler for Intel 64,
Version 11.0
Build 20080930 Package ID: w_cprof_p_11.0.061
Microsoft Visual Studio 2008 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1528 35.6 1468 37.2 1461 37.2 4 1468 37.2 1463 37.2 1474 36.8
416.gamess 4 777 101   776 101   775 101   4 766 102   767 102   767 102
433.milc 4 1457 25.2 1464 25.2 1456 25.2 4 1457 25.2 1464 25.2 1456 25.2
434.zeusmp 4 599 60.8 599 60.8 599 60.8 4 581 62.8 582 62.4 580 62.8
435.gromacs 4 308 92.8 308 92.8 308 92.8 4 306 93.6 306 93.6 305 93.6
436.cactusADM 4 705 68.0 705 67.6 709 67.6 4 705 68.0 705 67.6 709 67.6
437.leslie3d 4 1153 32.4 1156 32.4 1155 32.4 4 1169 32.0 1169 32.0 1166 32.4
444.namd 4 424 75.6 424 75.6 423 76.0 4 425 75.6 424 75.6 424 75.6
447.dealII 4 544 84.0 552 82.8 537 85.2 4 534 85.6 532 86.0 546 84.0
450.soplex 4 1074 31.2 1074 31.2 1067 31.2 4 1065 31.2 1067 31.2 1069 31.2
453.povray 4 193 110   193 110   193 110   4 156 137   157 136   157 136
454.calculix 4 345 95.6 342 96.4 345 95.6 4 341 96.8 339 97.2 339 97.6
459.GemsFDTD 4 1464 28.8 1459 29.2 1461 29.2 4 1517 28.0 1498 28.4 1495 28.4
465.tonto 4 521 75.6 518 76.0 519 75.6 4 482 81.6 481 82.0 484 81.2
470.lbm 4 1772 31.2 1772 31.2 1768 31.2 4 1769 31.2 1772 31.2 1768 31.2
481.wrf 4 858 52.0 855 52.4 874 51.2 4 858 52.0 855 52.4 874 51.2
482.sphinx3 4 1543 50.4 1542 50.4 1545 50.4 4 1527 51.2 1527 51.2 1528 51.2

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

 BIOS Settings
   Adjacent Cache Line Prefetch set to ON

Base Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /assume:underscore
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx_features   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
482.sphinx3:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F512000000

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -QxSSE4.1   -Qauto-ilp32   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
416.gamess:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  -Qprof_gen(pass 1)   -QxSSE4.1   -Qauto-ilp32   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000
437.leslie3d:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
459.GemsFDTD:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   /F1000000000
465.tonto:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic11.0.windows.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic11.0.windows.flags.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 21:36:49 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 24 December 2008.
