SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

ACTION S.A.

ACTINA SOLAR 202 X2 (Intel Xeon E5405, 2.0 GHz)

CPU2006 license: 9008 Test date: Nov-2008
Test sponsor: ACTION S.A. Hardware Availability: Sep-2008
Tested by: ACTION S.A. Software Availability: Nov-2008

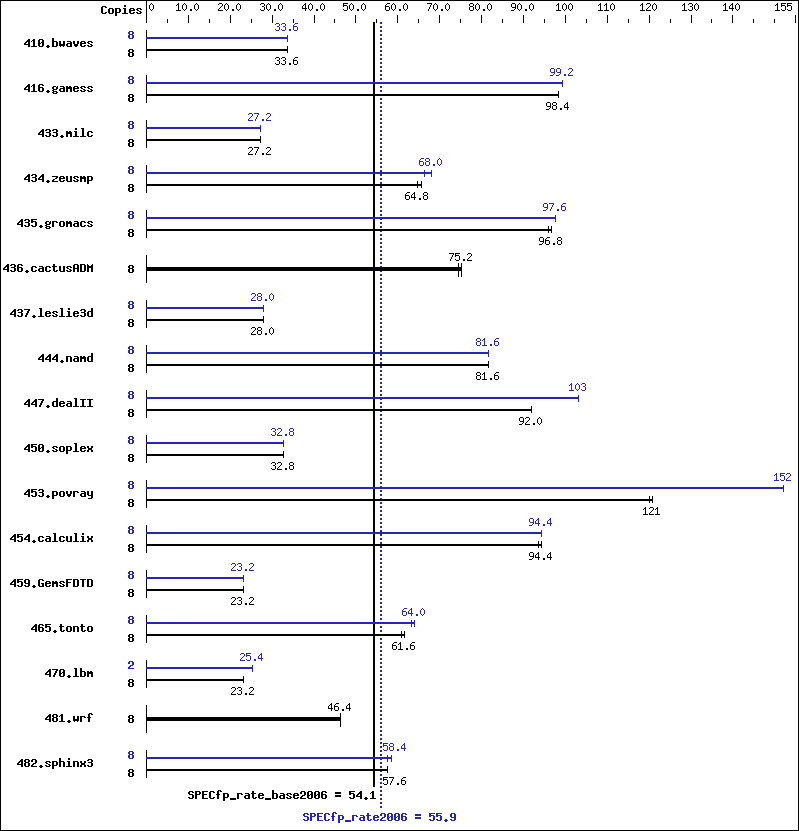

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5405
CPU Characteristics: 1333 MHz System Bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300, CL 5-5-5, ECC)
Disk Subsystem: RAID 10 (6x300 GB SAS, 15K RPM
Other Hardware: None
Software
Operating System: Windows 2003 Server Enterprise Edition (32-bit)
Service Pack 2
Compiler: Intel C++ Compiler Professional 11.0 for IA32
Build 20080930 Package ID: w_cproc_p_11.0.054
Intel Visual Fortran Compiler
Professional 11.0 for IA32
Build 20080930 Package ID: w_fproc_p_11.0.054
Microsoft Visual Studio 2008 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3234 33.6 3234 33.6 3233 33.6 8 3235 33.6 3235 33.6 3234 33.6
416.gamess 8 1588 98.4 1588 98.4 1588 98.4 8 1582 99.2 1581 99.2 1581 99.2
433.milc 8 2677 27.2 2677 27.2 2678 27.2 8 2678 27.2 2680 27.2 2679 27.2
434.zeusmp 8 1122 64.8 1114 65.6 1122 64.8 8 1091 66.4 1075 68.0 1070 68.0
435.gromacs 8 593 96.0 592 96.8 592 96.8 8 584 97.6 583 97.6 583 97.6
436.cactusADM 8 1278 75.2 1278 74.4 1278 75.2 8 1278 75.2 1278 74.4 1278 75.2
437.leslie3d 8 2714 28.0 2714 28.0 2713 28.0 8 2693 28.0 2702 28.0 2702 28.0
444.namd 8 787 81.6 786 81.6 786 81.6 8 787 81.6 786 81.6 786 81.6
447.dealII 8 999 92.0 999 92.0 998 92.0 8 889 103   889 103   888 103
450.soplex 8 2053 32.8 2017 32.8 2016 32.8 8 2057 32.8 2020 32.8 2018 32.8
453.povray 8 354 120   353 121   353 121   8 280 152   280 152   280 152
454.calculix 8 702 93.6 700 94.4 699 94.4 8 699 94.4 699 94.4 698 94.4
459.GemsFDTD 8 3649 23.2 3632 23.2 3634 23.2 8 3699 23.2 3684 23.2 3685 23.2
465.tonto 8 1295 60.8 1286 61.6 1272 61.6 8 1230 64.0 1239 63.2 1237 64.0
470.lbm 8 4760 23.2 4760 23.2 4760 23.2 2 1084 25.4 1085 25.4 1087 25.2
481.wrf 8 1934 46.4 1932 46.4 1933 46.4 8 1934 46.4 1932 46.4 1933 46.4
482.sphinx3 8 2702 57.6 2700 57.6 2699 57.6 8 2701 57.6 2667 58.4 2678 58.4

Submit Notes

The config file option 'submit' was used.

General Notes

 Binaries were built on Windows Vista Ultimate (32-bit)
 Start command was used to bind processes to CPUs

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -QxSSSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

C++ benchmarks:

 -QxSSSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000
470.lbm:  -QxSSSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
482.sphinx3:  -QxSSSE3   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
416.gamess:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000
437.leslie3d:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
459.GemsFDTD:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   /F1000000000
465.tonto:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -QxSSSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSSE3   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.20090713.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 22:22:47 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 19 December 2008.
