SPEC® CFP2006 Result

Fujitsu Limited

Fujitsu SPARC Enterprise M3000

SPECfp®2006 = 13.6

SPECfp_base2006 = 13.0

CPU2006 license:	19	Test date:	Sep-2008
Test sponsor:	Fujitsu Limited	Hardware Availability:	Oct-2008
Tested by:	Fujitsu Limited	Software Availability:	Oct-2008

Hardware
CPU Name:	SPARC64 VII
CPU Characteristics:
CPU MHz:	2520
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1 chip
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	5 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (2 GB x 8), 2-way interleaved
Disk Subsystem:	73 GB 10,000 RPM Fujitsu MAY2073RC SAS
Other Hardware:	None

Software
Operating System:	Solaris 10 10/08
Compiler:	Sun Studio 12 with patches 124861-08, 124863-06, 124867-07, 127143-03, 127000-05, 127001-01 (see patch information below)
Auto Parallel:	No
File System:	ufs
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	None

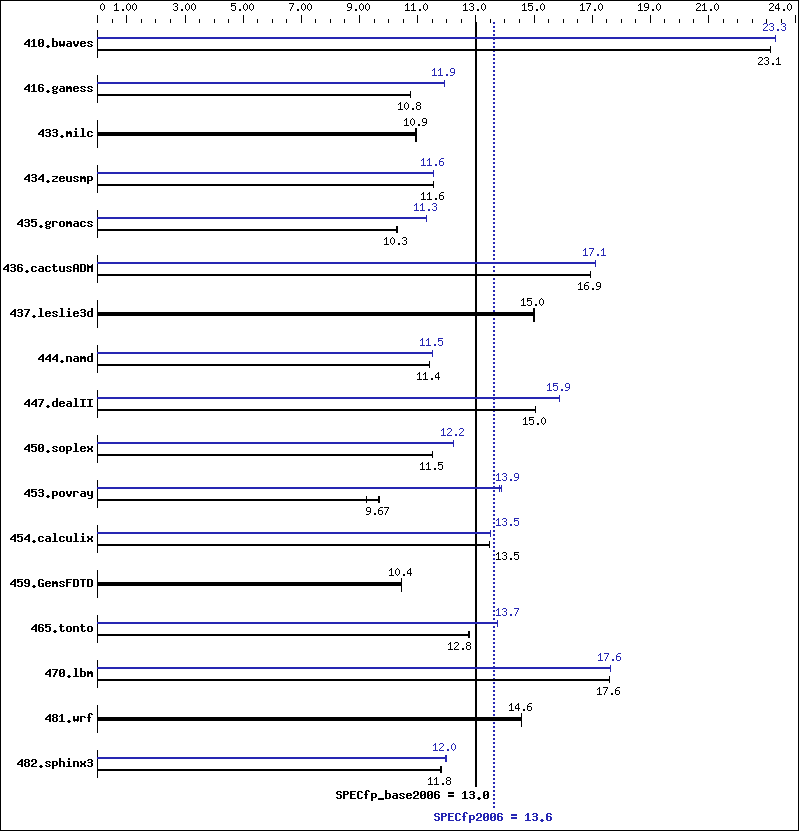

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	587	23.1	587	23.1	587	23.1	583	23.3	583	23.3	583	23.3
416.gamess	1821	10.8	1821	10.7	1821	10.8	1644	11.9	1643	11.9	1644	11.9
433.milc	839	10.9	838	11.0	839	10.9	839	10.9	838	11.0	839	10.9
434.zeusmp	788	11.6	788	11.6	788	11.6	788	11.6	788	11.6	788	11.6
435.gromacs	694	10.3	694	10.3	694	10.3	631	11.3	631	11.3	631	11.3
436.cactusADM	705	16.9	705	16.9	705	16.9	699	17.1	699	17.1	699	17.1
437.leslie3d	627	15.0	627	15.0	625	15.0	627	15.0	627	15.0	625	15.0
444.namd	703	11.4	703	11.4	703	11.4	697	11.5	697	11.5	697	11.5
447.dealII	760	15.0	760	15.1	760	15.0	720	15.9	720	15.9	720	15.9
450.soplex	725	11.5	725	11.5	726	11.5	683	12.2	682	12.2	682	12.2
453.povray	548	9.70	575	9.26	550	9.67	383	13.9	383	13.9	385	13.8
454.calculix	613	13.5	613	13.5	613	13.5	611	13.5	611	13.5	611	13.5
459.GemsFDTD	1017	10.4	1016	10.4	1017	10.4	1017	10.4	1016	10.4	1017	10.4
465.tonto	770	12.8	771	12.8	770	12.8	716	13.7	716	13.7	716	13.7
470.lbm	781	17.6	781	17.6	781	17.6	779	17.6	779	17.6	779	17.6
481.wrf	766	14.6	766	14.6	766	14.6	766	14.6	766	14.6	766	14.6
482.sphinx3	1649	11.8	1653	11.8	1653	11.8	1628	12.0	1626	12.0	1630	12.0

Compiler Invocation Notes

 Sun Studio compiler patches are available at
    http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp

Operating System Notes

 Processes were assigned to a specific processor(processor_id 3)
 using 'psrset' command. (as below)
     # psrset -c 3
     # psrset -e 1 runspec -c ...

 Shell Environments:
    Default setting.

 System Tunables:
 (/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers.
    segmap_percent=1
       Set maximum percent memory for file system cache.

 Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

Platform Notes


 Memory is 2-way interleaved by filling all slots with the same
 capacity DIMMs.

 This result is measured on a Fujitsu SPARC Enterprise M3000 Server.
 Note that the Fujitsu SPARC Enterprise M3000 and Sun SPARC Enterprise
 M3000 are electrically equivalent.

Base Compiler Invocation

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

f90

Benchmarks using both Fortran and C:

cc f90

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

f90

Benchmarks using both Fortran and C:

cc f90

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	-fast -xipo=2 -fma=fused -xpagesize=4M -xprefetch_level=3 -xvector -xarch=generic
482.sphinx3:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -fma=fused -xpagesize=4M

C++ benchmarks:

444.namd:	-library=stlport4 -fast -xipo=2 -fma=fused -xpagesize=4M -xdepend -xalias_level=compatible -xprefetch_level=1
447.dealII:	-library=stlport4 -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -fma=fused -xpagesize=4M -xdepend -xalias_level=compatible -xrestrict -xprefetch_auto_type=indirect_array_access -xprefetch_level=2
450.soplex:	-library=stlport4 -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -xdepend -xprefetch_level=2 -xprefetch_auto_type=indirect_array_access -Qoption cg -Qlp-ol=1 -Qoption cg -Qlp-it=3 -Qoption cg -Qlp-imb=1 -Qoption iropt -Apf:pdl=3
453.povray:	-library=stlport4 -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -fma=fused -xpagesize=4M -xdepend -xalias_level=compatible

Fortran benchmarks:

410.bwaves:	-fast -xipo=2 -xprefetch_level=2 -xprefetch_auto_type=indirect_array_access
416.gamess:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -fma=fused -xpagesize=4M
434.zeusmp:	-fast -xipo=2 -fma=fused -xpagesize=4M -lmopt
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -fma=fused -xpagesize=4M -lfast

Benchmarks using both Fortran and C:

435.gromacs:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xipo=2 -fma=fused -xpagesize=4M -xinline= -xchip=generic -fsimple=0
436.cactusADM:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xipo=2 -fma=fused -xpagesize=4M
454.calculix:	-fast(cc) -fast(f90) -xipo=2 -fma=fused -xpagesize=4M
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.r3.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.r3.xml.
