SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision M6400 (Intel QX9300, 2.53 GHz)

CPU2006 license: 55 Test date: Oct-2008
Test sponsor: Dell Inc. Hardware Availability: Sep-2008
Tested by: Dell Inc. Software Availability: Mar-2008

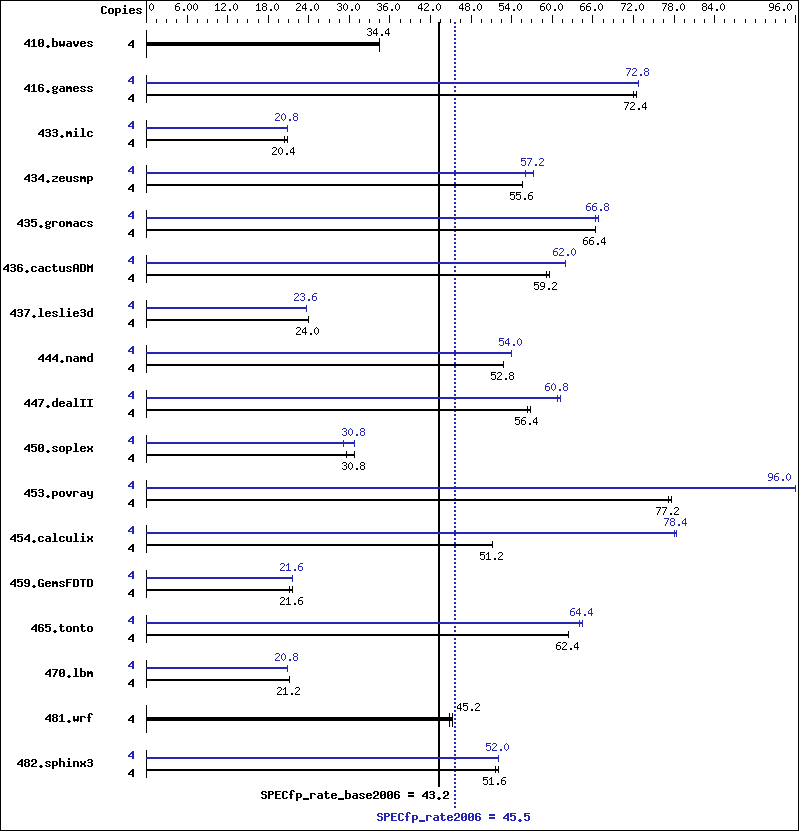

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX9300
CPU Characteristics: 1067 MHz Bus Speed
CPU MHz: 2530
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB 1067 MHz CL7 DDR3)
Disk Subsystem: 1 x 80 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Business SP1 (64bit)
Compiler: Intel C++ Compiler for Intel 64, Version 10.1
Build 20080312 Package ID: w_cc_p_10.1.021
Intel Visual Fortran Compiler for Intel 64,
Version 10.1
Build 20080312 Package ID: w_fc_p_10.1.021
Microsoft Visual Studio 2005 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1587 34.4 1586 34.4 1586 34.4 4 1587 34.4 1586 34.4 1586 34.4
416.gamess 4 1085 72.0 1084 72.4 1084 72.4 4 1077 72.8 1077 72.8 1077 72.8
433.milc 4 1773 20.8 1783 20.4 1783 20.4 4 1753 20.8 1759 20.8 1764 20.8
434.zeusmp 4 655 55.6 654 55.6 653 55.6 4 635 57.2 634 57.2 648 56.0
435.gromacs 4 430 66.4 429 66.4 429 66.4 4 429 66.4 429 66.8 429 66.8
436.cactusADM 4 805 59.2 806 59.2 803 59.6 4 771 62.0 773 62.0 773 62.0
437.leslie3d 4 1577 24.0 1578 24.0 1575 24.0 4 1592 23.6 1592 23.6 1591 23.6
444.namd 4 608 52.8 606 52.8 606 52.8 4 595 54.0 594 54.0 594 54.0
447.dealII 4 814 56.4 809 56.4 807 56.8 4 754 60.8 748 61.2 751 60.8
450.soplex 4 1120 29.6 1085 30.8 1086 30.8 4 1136 29.2 1090 30.8 1082 30.8
453.povray 4 275 77.2 276 77.2 275 77.6 4 222 96.0 222 96.0 222 96.0
454.calculix 4 643 51.2 643 51.2 643 51.2 4 421 78.4 424 78.0 421 78.4
459.GemsFDTD 4 1983 21.2 1972 21.6 1972 21.6 4 1948 21.6 1948 21.6 1948 21.6
465.tonto 4 630 62.4 630 62.4 630 62.4 4 612 64.4 610 64.4 613 64.0
470.lbm 4 2576 21.2 2576 21.2 2576 21.2 4 2635 20.8 2634 20.8 2635 20.8
481.wrf 4 987 45.2 990 45.2 998 44.8 4 987 45.2 990 45.2 998 44.8
482.sphinx3 4 1516 51.6 1504 52.0 1507 51.6 4 1503 52.0 1495 52.0 1494 52.0

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto-ilp32   /F512000000    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qauto-ilp32   -Qcxx_features   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Oa   /F512000000    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F512000000    -link /FORCE:MULTIPLE
482.sphinx3:  -fast   -Qauto-ilp32   -Qunroll2   /F512000000    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qcxx_features   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qprefetch   -Qcxx_features   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qcxx_features   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qansi-alias   -Qcxx_features   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000    -link /FORCE:MULTIPLE
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000    -link /FORCE:MULTIPLE
437.leslie3d:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
459.GemsFDTD:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Ob0   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
465.tonto:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qprefetch   /F1000000000    -link /FORCE:MULTIPLE
454.calculix:  -fast   -Qauto-ilp32   -Qunroll-aggressive   /F1000000000    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090713.00.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 20:23:08 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 11 November 2008.
