| CPU2006 license: | 55 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Oct-2008 |
| Tested by: | Dell Inc. | Software Availability: | Mar-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5270 |
| CPU Characteristics: | 1333 MHz Bus Speed |
| CPU MHz: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (4x4 GB 667 MHz CL5 FB-DIMM) |
| Disk Subsystem: | 1 x 320 GB SATA 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Business SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA-32, Version 10.1 Build 20080312 Package ID: w_cc_p_10.1.021 Microsoft Visual Studio 2005 SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

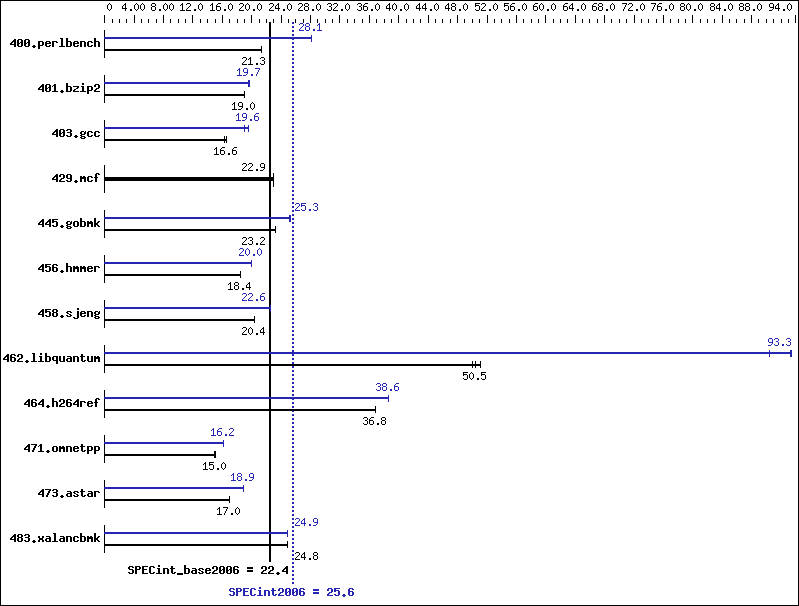

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 458 | 21.3 | 459 | 21.3 | 459 | 21.3 | 348 | 28.1 | 348 | 28.1 | 347 | 28.1 |
| 401.bzip2 | 508 | 19.0 | 508 | 19.0 | 508 | 19.0 | 491 | 19.7 | 491 | 19.7 | 495 | 19.5 |
| 403.gcc | 493 | 16.3 | 484 | 16.6 | 484 | 16.6 | 424 | 19.0 | 411 | 19.6 | 411 | 19.6 |
| 429.mcf | 399 | 22.9 | 399 | 22.9 | 399 | 22.9 | 399 | 22.9 | 399 | 22.9 | 399 | 22.9 |
| 445.gobmk | 453 | 23.2 | 452 | 23.2 | 452 | 23.2 | 415 | 25.3 | 415 | 25.3 | 416 | 25.2 |
| 456.hmmer | 507 | 18.4 | 506 | 18.4 | 507 | 18.4 | 467 | 20.0 | 467 | 20.0 | 467 | 20.0 |
| 458.sjeng | 595 | 20.4 | 594 | 20.4 | 594 | 20.4 | 535 | 22.6 | 535 | 22.6 | 535 | 22.6 |
| 462.libquantum | 414 | 50.0 | 406 | 51.1 | 411 | 50.5 | 222 | 93.3 | 222 | 93.4 | 229 | 90.4 |
| 464.h264ref | 601 | 36.8 | 601 | 36.8 | 601 | 36.8 | 574 | 38.6 | 573 | 38.6 | 573 | 38.6 |
| 471.omnetpp | 419 | 14.9 | 418 | 15.0 | 418 | 15.0 | 386 | 16.2 | 385 | 16.2 | 385 | 16.2 |
| 473.astar | 413 | 17.0 | 413 | 17.0 | 413 | 17.0 | 371 | 18.9 | 372 | 18.9 | 372 | 18.9 |
| 483.xalancbmk | 278 | 24.8 | 278 | 24.8 | 279 | 24.8 | 277 | 24.9 | 277 | 24.9 | 277 | 24.9 |
General Notes
Binaries were built on Windows Vista Ultimate (64-bit) BIOS Settings Adjacent Cache Line Prefetch set to ON
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 libguide40.lib |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch -Qparallel -Qpar-runtime-control /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qprefetch /F512000000 libguide40.lib |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 libguide40.lib |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias -Qopt-multi-version-aggressive /F512000000 libguide40.lib |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 libguide40.lib |
| 462.libquantum: | -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always -Qparallel -Qpar-runtime-control /F512000000 libguide40.lib |
| 464.h264ref: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 libguide40.lib |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=block -Qcxx_features /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=routine -Qcxx_features /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
