| CPU2006 license: | 22 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Sep-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5470 |
| CPU Characteristics: | |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2 kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730, Package ID l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User, Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

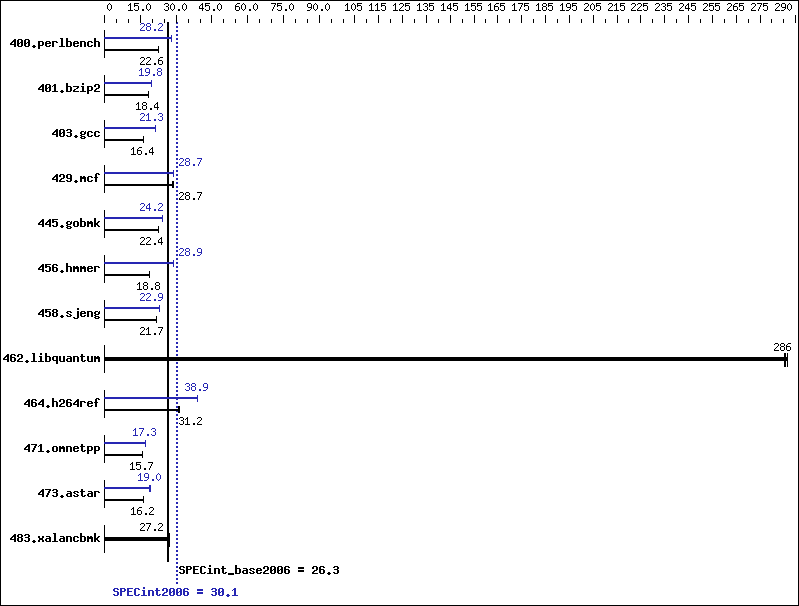

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 432 | 22.6 | 433 | 22.6 | 432 | 22.6 | 347 | 28.2 | 347 | 28.1 | 347 | 28.2 |
| 401.bzip2 | 524 | 18.4 | 524 | 18.4 | 525 | 18.4 | 488 | 19.8 | 488 | 19.8 | 488 | 19.8 |
| 403.gcc | 493 | 16.3 | 492 | 16.4 | 492 | 16.4 | 378 | 21.3 | 378 | 21.3 | 378 | 21.3 |
| 429.mcf | 319 | 28.6 | 318 | 28.7 | 318 | 28.7 | 317 | 28.8 | 318 | 28.6 | 318 | 28.7 |
| 445.gobmk | 469 | 22.4 | 469 | 22.4 | 469 | 22.4 | 434 | 24.2 | 434 | 24.2 | 434 | 24.2 |
| 456.hmmer | 496 | 18.8 | 496 | 18.8 | 496 | 18.8 | 323 | 28.9 | 323 | 28.9 | 323 | 28.9 |
| 458.sjeng | 558 | 21.7 | 558 | 21.7 | 554 | 21.8 | 527 | 22.9 | 529 | 22.9 | 528 | 22.9 |
| 462.libquantum | 72.3 | 286 | 72.5 | 286 | 72.6 | 285 | 72.3 | 286 | 72.5 | 286 | 72.6 | 285 |
| 464.h264ref | 701 | 31.6 | 709 | 31.2 | 712 | 31.1 | 568 | 39.0 | 569 | 38.9 | 569 | 38.9 |
| 471.omnetpp | 399 | 15.7 | 399 | 15.7 | 399 | 15.7 | 362 | 17.3 | 361 | 17.3 | 361 | 17.3 |
| 473.astar | 432 | 16.2 | 433 | 16.2 | 433 | 16.2 | 368 | 19.1 | 372 | 18.9 | 369 | 19.0 |
| 483.xalancbmk | 253 | 27.2 | 254 | 27.2 | 254 | 27.2 | 253 | 27.2 | 254 | 27.2 | 254 | 27.2 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0"
Platform Notes
BIOS configuration: Enhanced Speedstep Technology = Disable C1 Enhanced Mode = Disable Hardware Prefetch = Enable, Adjacent Sector Prefetch = Enable SnoopFilter = Disable
General Notes
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
