| CPU2006 license: | 20 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2008 |
| Tested by: | Bull SAS | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5430 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2666 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x73 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1 Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.50.0.15 SmartHeap library V8.1 |

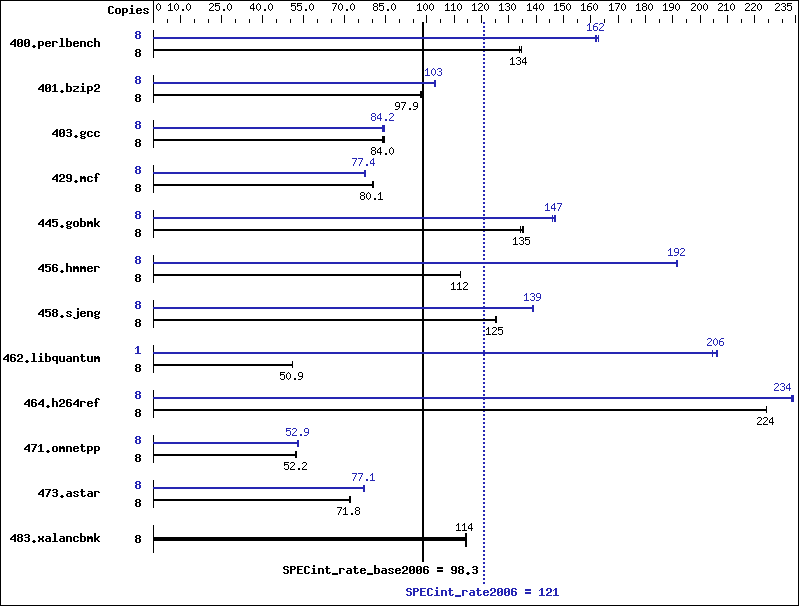

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 580 | 135 | 583 | 134 | 584 | 134 | 8 | 482 | 162 | 480 | 163 | 483 | 162 |
| 401.bzip2 | 8 | 787 | 98.0 | 791 | 97.6 | 789 | 97.9 | 8 | 750 | 103 | 749 | 103 | 751 | 103 |
| 403.gcc | 8 | 767 | 83.9 | 767 | 84.0 | 763 | 84.4 | 8 | 765 | 84.2 | 761 | 84.6 | 767 | 84.0 |
| 429.mcf | 8 | 911 | 80.1 | 912 | 80.0 | 908 | 80.3 | 8 | 944 | 77.3 | 943 | 77.4 | 942 | 77.5 |
| 445.gobmk | 8 | 622 | 135 | 625 | 134 | 620 | 135 | 8 | 571 | 147 | 572 | 147 | 574 | 146 |
| 456.hmmer | 8 | 665 | 112 | 665 | 112 | 665 | 112 | 8 | 390 | 191 | 389 | 192 | 389 | 192 |
| 458.sjeng | 8 | 774 | 125 | 771 | 126 | 773 | 125 | 8 | 698 | 139 | 697 | 139 | 696 | 139 |
| 462.libquantum | 8 | 3259 | 50.9 | 3257 | 50.9 | 3261 | 50.8 | 1 | 100 | 206 | 101 | 206 | 101 | 205 |
| 464.h264ref | 8 | 789 | 224 | 789 | 224 | 789 | 224 | 8 | 757 | 234 | 759 | 233 | 756 | 234 |
| 471.omnetpp | 8 | 958 | 52.2 | 958 | 52.2 | 961 | 52.1 | 8 | 946 | 52.9 | 945 | 52.9 | 946 | 52.9 |
| 473.astar | 8 | 784 | 71.7 | 782 | 71.8 | 781 | 71.9 | 8 | 729 | 77.1 | 729 | 77.1 | 730 | 76.9 |
| 483.xalancbmk | 8 | 484 | 114 | 483 | 114 | 484 | 114 | 8 | 484 | 114 | 483 | 114 | 484 | 114 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
