SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

HITACHI

HA8000 RS440 (Intel Xeon X7350)

CPU2006 license: 872 Test date: Aug-2008
Test sponsor: HITACHI Hardware Availability: Nov-2007
Tested by: HITACHI Software Availability: Nov-2007

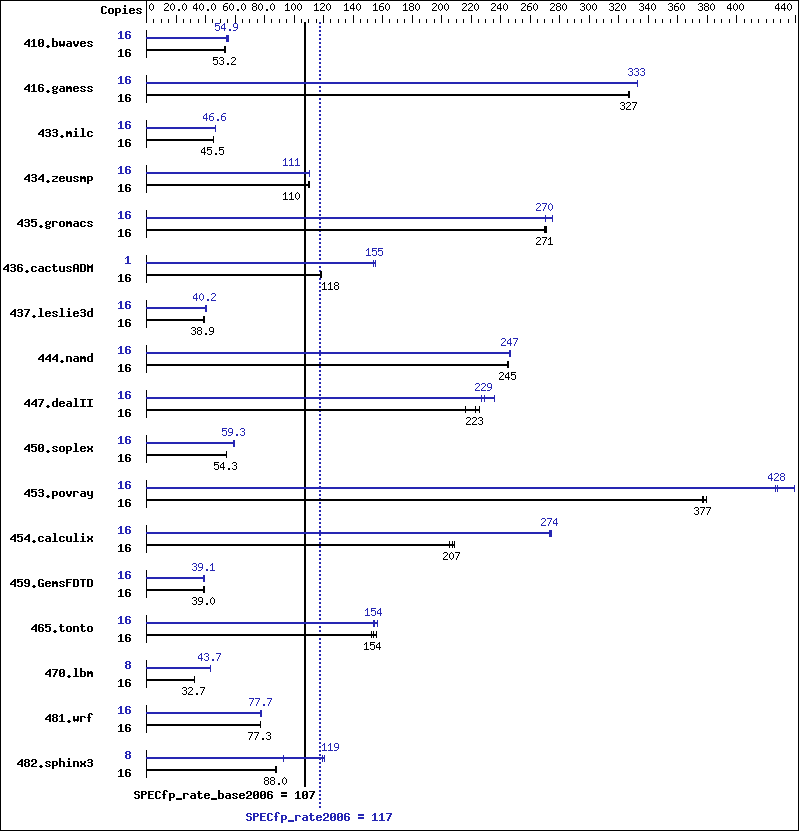

Benchmark results graph
Hardware
CPU Name: Intel Xeon X7350
CPU Characteristics: 1066MHz system bus
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 1, 2, 3, 4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 64 GB(16 x 4 GB PC2-5300F CAS 5-5-5)
Disk Subsystem: 2 x 73 GB 10000 rpm SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux
Server release 5.1 (Tikanga)
Kernel 2.6.18-53.el5 on an x86_64
Compiler: Intel C++ Compiler 10.1 for Linux
Build 20070913 Package ID: l_cc_p_10.1.008
Intel Fortran Compiler 10.1 for Linux
Build 20070913 Package ID: l_fc_p_10.1.008
Auto Parallel: Yes
File System: ext3
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 4103 53.0 4087 53.2 4079 53.3 16 3999   54.4 3931   55.3 3963   54.9
416.gamess 16 958 327   957 327   957 327   16 942   333   942   333   942   332
433.milc 16 3228 45.5 3231 45.5 3232 45.4 16 3160   46.5 3155   46.6 3143   46.7
434.zeusmp 16 1321 110   1325 110   1322 110   16 1317   111   1316   111   1315   111
435.gromacs 16 421 271   422 271   423 270   16 415   275   423   270   423   270
436.cactusADM 16 1618 118   1613 119   1614 118   1 77.1 155   77.8 154   77.2 155
437.leslie3d 16 3851 39.1 3892 38.6 3865 38.9 16 3742   40.2 3738   40.2 3729   40.3
444.namd 16 523 245   523 245   524 245   16 519   247   520   247   521   246
447.dealII 16 811 226   821 223   848 216   16 800   229   776   236   806   227
450.soplex 16 2459 54.3 2455 54.3 2455 54.4 16 2253   59.2 2248   59.4 2249   59.3
453.povray 16 226 377   224 379   226 376   16 200   426   194   439   199   428
454.calculix 16 633 208   644 205   636 207   16 482   274   483   273   481   274
459.GemsFDTD 16 4374 38.8 4355 39.0 4351 39.0 16 4390   38.7 4344   39.1 4317   39.3
465.tonto 16 1034 152   1011 156   1025 154   16 1004   157   1021   154   1024   154
470.lbm 16 6731 32.7 6730 32.7 6731 32.7 8 2523   43.6 2516   43.7 2516   43.7
481.wrf 16 2312 77.3 2311 77.3 2311 77.3 16 2316   77.2 2299   77.7 2296   77.8
482.sphinx3 16 3557 87.7 3543 88.0 3538 88.1 8 1305   119   1291   121   1674   93.2

Submit Notes

The config file option 'submit' was used.

Operating System Notes

'/bin/taskset' used to bind processes to CPUs
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
OMP_NUM_THREADS set to number of cores
KMP_AFFINITY set to physical,0

Platform Notes

BIOS Settings:
Hardware Prefetcher = Disabled
Adjacent Cache Line Prefetch = Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.008/bin/ifort   -L/opt/intel/fc/10.1.008/lib   -I/opt/intel/fc/10.1.008/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
437.leslie3d:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.02.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 19:38:51 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 16 September 2008.
