| CPU2006 license: | 13 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2008 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Duo T9600 |
| CPU Characteristics: | |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (2x1GB Micron PC3-8500 DDR3-1066 CL7) |
| Disk Subsystem: | Hitachi Travelstar HTS722020K9SA00 SATA 200GB 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP Professional SP2 |
| Compiler: | Intel C++ Compiler for IA32 version 10.1 Build 20070913 Package ID: w_cc_p_10.1.011 Intel Fortran Compiler for IA32 version 10.1 Build 20070913 Package ID: w_fc_p_10.1.011 Microsoft Visual Studio 2005 SP1 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

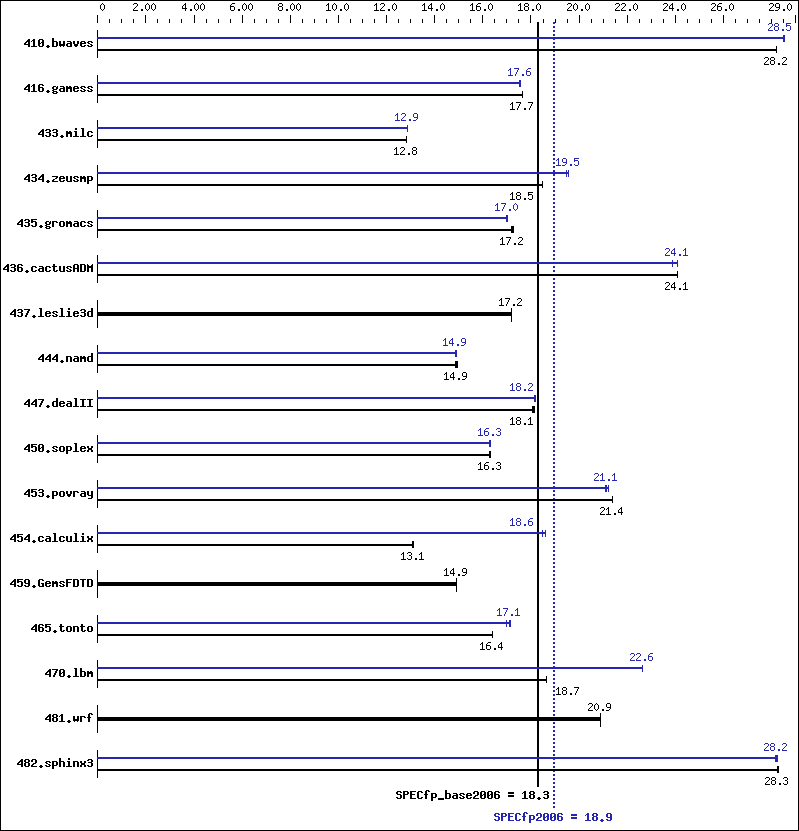

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 482 | 28.2 | 482 | 28.2 | 482 | 28.2 | 477 | 28.5 | 477 | 28.5 | 477 | 28.5 |
| 416.gamess | 1110 | 17.6 | 1109 | 17.7 | 1109 | 17.7 | 1117 | 17.5 | 1115 | 17.6 | 1115 | 17.6 |
| 433.milc | 716 | 12.8 | 716 | 12.8 | 716 | 12.8 | 714 | 12.9 | 714 | 12.9 | 714 | 12.9 |
| 434.zeusmp | 492 | 18.5 | 492 | 18.5 | 492 | 18.5 | 466 | 19.5 | 466 | 19.5 | 468 | 19.5 |
| 435.gromacs | 413 | 17.3 | 415 | 17.2 | 414 | 17.2 | 419 | 17.0 | 421 | 17.0 | 419 | 17.0 |
| 436.cactusADM | 496 | 24.1 | 496 | 24.1 | 496 | 24.1 | 501 | 23.9 | 496 | 24.1 | 496 | 24.1 |
| 437.leslie3d | 547 | 17.2 | 547 | 17.2 | 547 | 17.2 | 547 | 17.2 | 547 | 17.2 | 547 | 17.2 |
| 444.namd | 537 | 14.9 | 540 | 14.9 | 539 | 14.9 | 539 | 14.9 | 537 | 14.9 | 540 | 14.8 |
| 447.dealII | 633 | 18.1 | 632 | 18.1 | 631 | 18.1 | 630 | 18.1 | 629 | 18.2 | 630 | 18.2 |
| 450.soplex | 512 | 16.3 | 512 | 16.3 | 511 | 16.3 | 512 | 16.3 | 512 | 16.3 | 511 | 16.3 |
| 453.povray | 249 | 21.4 | 249 | 21.4 | 249 | 21.4 | 252 | 21.1 | 251 | 21.2 | 252 | 21.1 |
| 454.calculix | 630 | 13.1 | 630 | 13.1 | 630 | 13.1 | 446 | 18.5 | 444 | 18.6 | 443 | 18.6 |
| 459.GemsFDTD | 712 | 14.9 | 711 | 14.9 | 712 | 14.9 | 712 | 14.9 | 711 | 14.9 | 712 | 14.9 |
| 465.tonto | 600 | 16.4 | 600 | 16.4 | 600 | 16.4 | 579 | 17.0 | 576 | 17.1 | 574 | 17.2 |
| 470.lbm | 736 | 18.7 | 737 | 18.6 | 737 | 18.7 | 607 | 22.6 | 607 | 22.6 | 607 | 22.6 |
| 481.wrf | 534 | 20.9 | 535 | 20.9 | 535 | 20.9 | 534 | 20.9 | 535 | 20.9 | 535 | 20.9 |
| 482.sphinx3 | 689 | 28.3 | 690 | 28.3 | 690 | 28.3 | 691 | 28.2 | 690 | 28.2 | 692 | 28.2 |
General Notes
Binaries were built on Windows Vista32 The following VS 2005 SP1 updates were applied: KB926601 and KB932232
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel /F1000000000 libguide40.lib |
C++ benchmarks:
| -fast -Qparallel -Qcxx_features /F1000000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast -Qparallel /F1000000000 libguide40.lib |
Benchmarks using both Fortran and C:
| -fast -Qparallel /F1000000000 libguide40.lib |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -fast -Qunroll2 -Oa /F1000000000 libguide40.lib |
| 470.lbm: | -fast -Qunroll2 -Qscalar-rep- -Qprefetch /F1000000000 libguide40.lib |
| 482.sphinx3: | -fast -Qunroll2 /F1000000000 libguide40.lib |
C++ benchmarks:
Fortran benchmarks:
| 410.bwaves: | -fast -Qparallel -Qprefetch /F1000000000 libguide40.lib |
| 416.gamess: | -fast -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 libguide40.lib |
| 434.zeusmp: | -QxT -O2 -Qprec-div- -Qunroll0 -Qscalar-rep- /F1000000000 libguide40.lib |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -fast -Qunroll4 -Qauto /F1000000000 libguide40.lib |
Benchmarks using both Fortran and C:
| 435.gromacs: | -fast -Oa -Qprefetch /F1000000000 libguide40.lib |
| 436.cactusADM: | -fast -Qunroll2 -Qparallel -Qprefetch /F1000000000 libguide40.lib |
| 454.calculix: | -fast -Qunroll-aggressive /F1000000000 libguide40.lib |
| 481.wrf: | basepeak = yes |
