| CPU2006 license: | 22 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Sep-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Jun-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5470 |
| CPU Characteristics: | |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2, kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20080602 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User, Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap Library, Version 8.1 binutils-2.17.50.0.5-0.1.x86_64 |

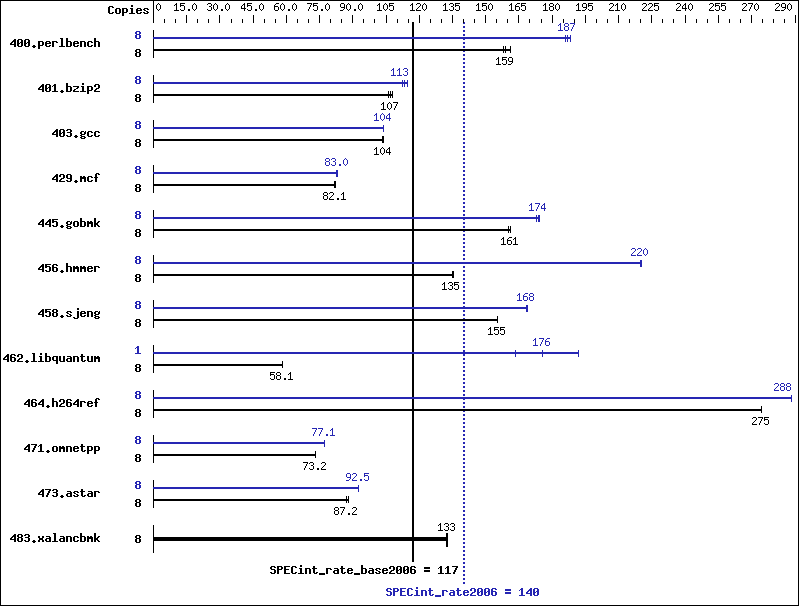

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 485 | 161 | 495 | 158 | 492 | 159 | 8 | 415 | 188 | 418 | 187 | 420 | 186 |
| 401.bzip2 | 8 | 717 | 108 | 728 | 106 | 720 | 107 | 8 | 685 | 113 | 682 | 113 | 674 | 115 |
| 403.gcc | 8 | 621 | 104 | 623 | 103 | 619 | 104 | 8 | 621 | 104 | 620 | 104 | 619 | 104 |
| 429.mcf | 8 | 889 | 82.1 | 890 | 81.9 | 887 | 82.3 | 8 | 879 | 83.0 | 879 | 83.0 | 883 | 82.6 |
| 445.gobmk | 8 | 523 | 160 | 521 | 161 | 521 | 161 | 8 | 485 | 173 | 483 | 174 | 482 | 174 |
| 456.hmmer | 8 | 552 | 135 | 551 | 135 | 552 | 135 | 8 | 340 | 220 | 339 | 220 | 339 | 220 |
| 458.sjeng | 8 | 623 | 155 | 624 | 155 | 624 | 155 | 8 | 572 | 169 | 575 | 168 | 575 | 168 |
| 462.libquantum | 8 | 2850 | 58.2 | 2851 | 58.1 | 2852 | 58.1 | 1 | 118 | 176 | 127 | 163 | 108 | 192 |
| 464.h264ref | 8 | 645 | 275 | 644 | 275 | 645 | 274 | 8 | 615 | 288 | 615 | 288 | 615 | 288 |
| 471.omnetpp | 8 | 683 | 73.2 | 684 | 73.1 | 683 | 73.2 | 8 | 649 | 77.1 | 649 | 77.1 | 649 | 77.1 |
| 473.astar | 8 | 639 | 87.9 | 645 | 87.1 | 644 | 87.2 | 8 | 608 | 92.4 | 606 | 92.7 | 607 | 92.5 |
| 483.xalancbmk | 8 | 415 | 133 | 416 | 133 | 417 | 133 | 8 | 415 | 133 | 416 | 133 | 417 | 133 |
Compiler Invocation Notes
Binaries have been built under SLES10 SP1
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default).
Platform Notes
BIOS configuration: Enhanced Speedstep Technology = Disable C1 Enhanced Mode = Disable Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable SnoopFilter = Enable
General Notes
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Compiler Invocation
C benchmarks:
| /opt/intel/cc/10.1.017/bin/icc -L/opt/intel/cc/10.1.017/lib -I/opt/intel/cc/10.1.017/include |
C++ benchmarks:
| /opt/intel/cc/10.1.017/bin/icpc -L/opt/intel/cc/10.1.017/lib -I/opt/intel/cc/10.1.017/include |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| /opt/intel/cc/10.1.017/bin/icc -L/opt/intel/cc/10.1.017/lib -I/opt/intel/cc/10.1.017/include | |
| 401.bzip2: | icc |
| 456.hmmer: | icc |
C++ benchmarks:
| /opt/intel/cc/10.1.017/bin/icpc -L/opt/intel/cc/10.1.017/lib -I/opt/intel/cc/10.1.017/include |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
