| CPU2006 license: | 11 | Test date: | Jun-2008 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Sep-2008 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3360 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2830 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2 GB DDR2-6400E ECC) |
| Disk Subsystem: | 1 x 160 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (Full multiuser with network) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 Binutils 2.17.50.0.15 |

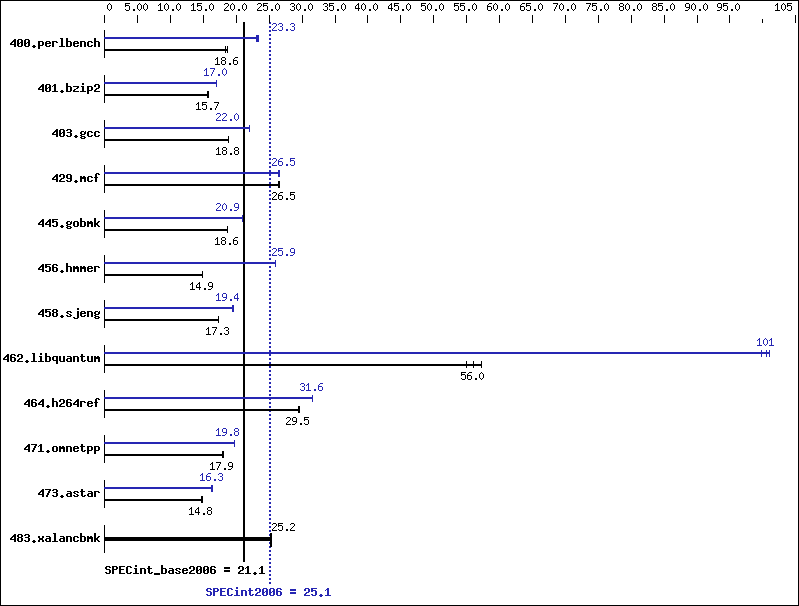

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 526 | 18.6 | 524 | 18.6 | 533 | 18.3 | 420 | 23.3 | 418 | 23.4 | 424 | 23.0 |
| 401.bzip2 | 614 | 15.7 | 615 | 15.7 | 614 | 15.7 | 568 | 17.0 | 568 | 17.0 | 568 | 17.0 |
| 403.gcc | 427 | 18.8 | 428 | 18.8 | 427 | 18.8 | 367 | 21.9 | 367 | 22.0 | 366 | 22.0 |
| 429.mcf | 343 | 26.6 | 345 | 26.4 | 344 | 26.5 | 345 | 26.5 | 343 | 26.6 | 345 | 26.5 |
| 445.gobmk | 563 | 18.6 | 563 | 18.6 | 564 | 18.6 | 502 | 20.9 | 502 | 20.9 | 502 | 20.9 |
| 456.hmmer | 627 | 14.9 | 627 | 14.9 | 627 | 14.9 | 360 | 25.9 | 360 | 25.9 | 359 | 26.0 |
| 458.sjeng | 699 | 17.3 | 699 | 17.3 | 699 | 17.3 | 625 | 19.4 | 623 | 19.4 | 621 | 19.5 |
| 462.libquantum | 370 | 56.0 | 376 | 55.0 | 362 | 57.3 | 208 | 99.8 | 206 | 101 | 205 | 101 |
| 464.h264ref | 750 | 29.5 | 751 | 29.5 | 749 | 29.6 | 701 | 31.6 | 701 | 31.6 | 700 | 31.6 |
| 471.omnetpp | 348 | 18.0 | 349 | 17.9 | 349 | 17.9 | 316 | 19.8 | 316 | 19.8 | 317 | 19.7 |
| 473.astar | 477 | 14.7 | 474 | 14.8 | 476 | 14.8 | 431 | 16.3 | 430 | 16.3 | 433 | 16.2 |
| 483.xalancbmk | 273 | 25.3 | 274 | 25.2 | 274 | 25.2 | 273 | 25.3 | 274 | 25.2 | 274 | 25.2 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode Hardware Sector Prefetch Enabled and Adjacent Sector Prefetch Enabled OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to null
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
