SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX200 S4, Intel Xeon E5430, 2.66 GHz

SPECfp®2006 = 21.6

CPU2006 license: 22 Test date: Aug-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Dec-2007
Tested by: Fujitsu Siemens Computers Software Availability: May-2008

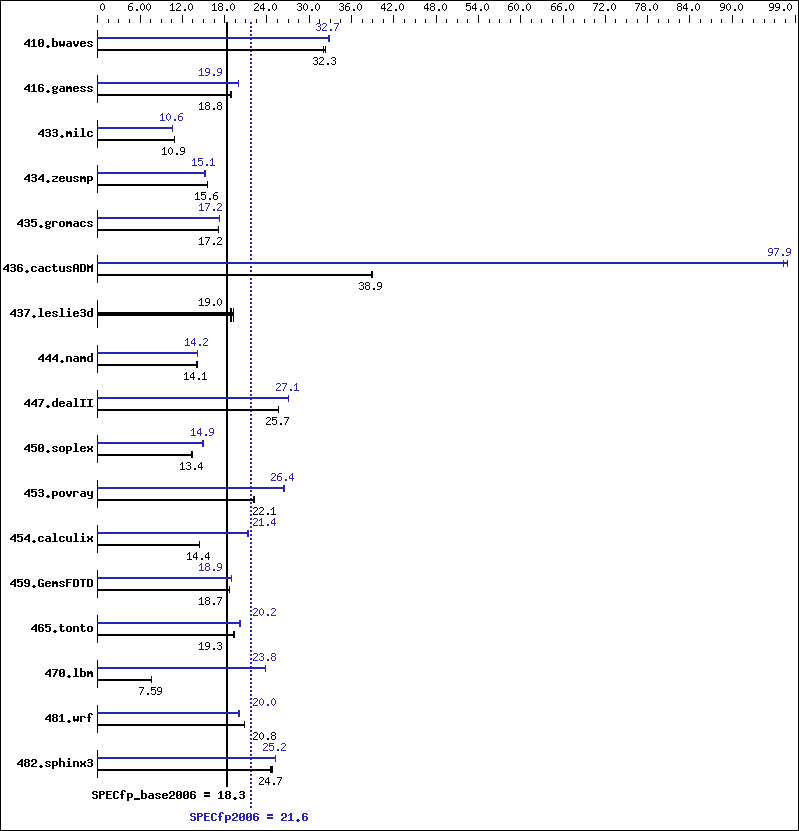

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5430
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F, 2 rank, CL 5-5-5, ECC)
Disk Subsystem: 1x SAS, 73 GB, 15000 rpm
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
with SP2, kernel 2.6.16.60-0.21-smp
Compiler: Intel C++ and Fortran Compiler for Linux32
and Linux64, version 10.1, Build 20070913
Auto Parallel: Yes
File System: ext3
System State: Multi-User Run Level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.17.50.0.5-0.1.x86_64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 424 32.0  421 32.3  420 32.4  414 32.9 415 32.7 416 32.7
416.gamess 1031 19.0  1041 18.8  1039 18.8  982 19.9 983 19.9 984 19.9
433.milc 845 10.9  845 10.9  844 10.9  864 10.6 866 10.6 865 10.6
434.zeusmp 583 15.6  584 15.6  584 15.6  601 15.1 598 15.2 601 15.1
435.gromacs 416 17.2  418 17.1  416 17.2  414 17.2 414 17.2 414 17.3
436.cactusADM 307 38.9  307 39.0  307 38.9  122 97.9 122 97.9 123 97.2
437.leslie3d 499 18.8  489 19.2  494 19.0  499 18.8 489 19.2 494 19.0
444.namd 570 14.1  570 14.1  569 14.1  566 14.2 566 14.2 566 14.2
447.dealII 446 25.6  446 25.7  446 25.7  423 27.1 423 27.1 422 27.1
450.soplex 621 13.4  622 13.4  624 13.4  557 15.0 558 14.9 562 14.8
453.povray 240 22.2  240 22.1  240 22.1  202 26.4 202 26.3 201 26.4
454.calculix 573 14.4  573 14.4  573 14.4  385 21.4 386 21.4 389 21.2
459.GemsFDTD 569 18.7  569 18.7  568 18.7  560 18.9 560 19.0 560 18.9
465.tonto 506 19.4  509 19.3  512 19.2  490 20.1 485 20.3 486 20.2
470.lbm 1805 7.61 1816 7.57 1810 7.59 577 23.8 578 23.8 579 23.7
481.wrf 537 20.8  537 20.8  536 20.9  557 20.0 556 20.1 558 20.0
482.sphinx3 789 24.7  786 24.8  794 24.5  775 25.2 774 25.2 775 25.2

Compiler Invocation Notes

 All binaries were built with 64-bit Intel compiler except:
 450.soplex, 470.lbm and 482.sphinx3 in peak were built with 32-bit Intel compiler.

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores (default)

Platform Notes

 BIOS configuration:
 Hardware Prefetch = Enable, Adjacent Sector Prefetch = Enable

General Notes


 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -parallel

C++ benchmarks:

 -fast   -parallel

Fortran benchmarks:

 -fast   -parallel

Benchmarks using both Fortran and C:

 -fast   -parallel

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch   -parallel
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch   -parallel
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -parallel   -prefetch   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags-ic101-linux-intel64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags-ic101-linux-intel64.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 19:05:01 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 2 September 2008.
